Gully tops for ACO hygienic gully 218 - telescopic
Product benefits
- Fully inspectable and cleanable
- Internal radii equal or larger than 3 mm
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Edge infill
- ACO protective cover available
- Fully pickled and passivated
Product information
- Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
- Certified according to EN 1253-1
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Gully top size 300 x 300 mm
- Adjustable EasyFix levelling feet
- Wide range of gratings for load classes L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solutions
- Silt basket available as accessory

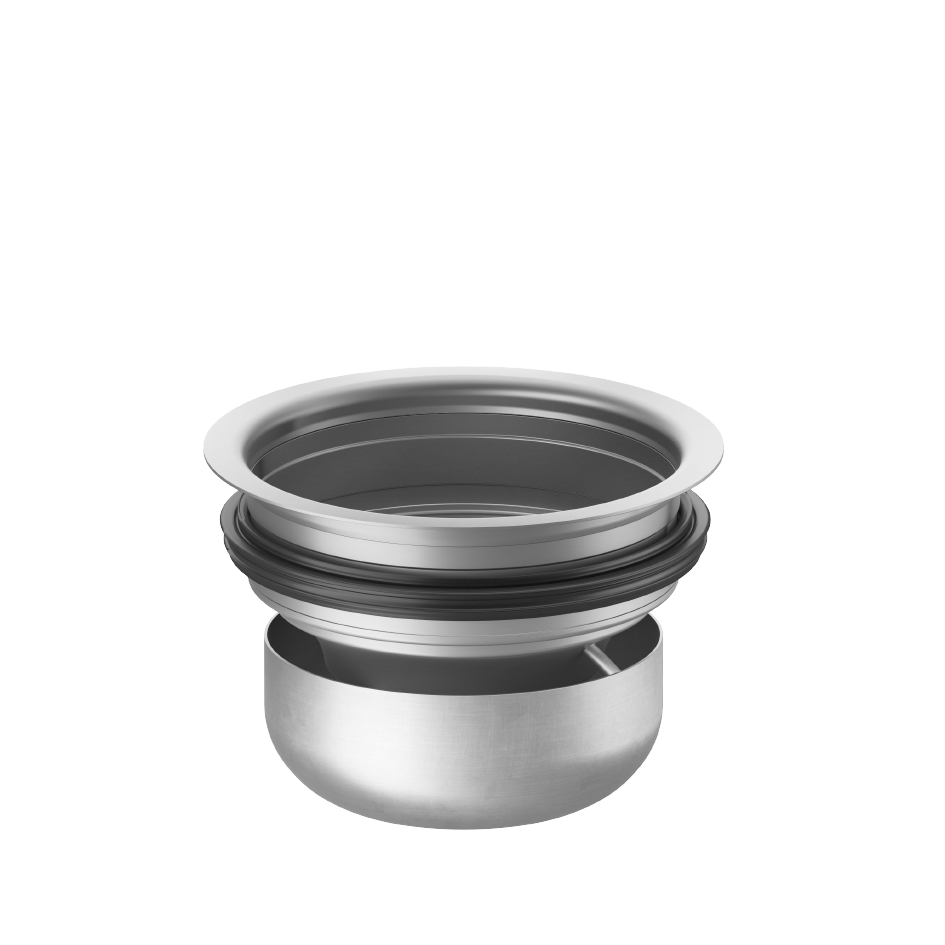

ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 449962 (1.4301)
- 449963 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 4.2 l/s
- Maximum flow rate with vertical gully: 6.2 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 1.4 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 449962 (1.4301)
- 449963 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 4.2 l/s
- Maximum flow rate with vertical gully: 6.2 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 1.4 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 4.2 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1.9 kg

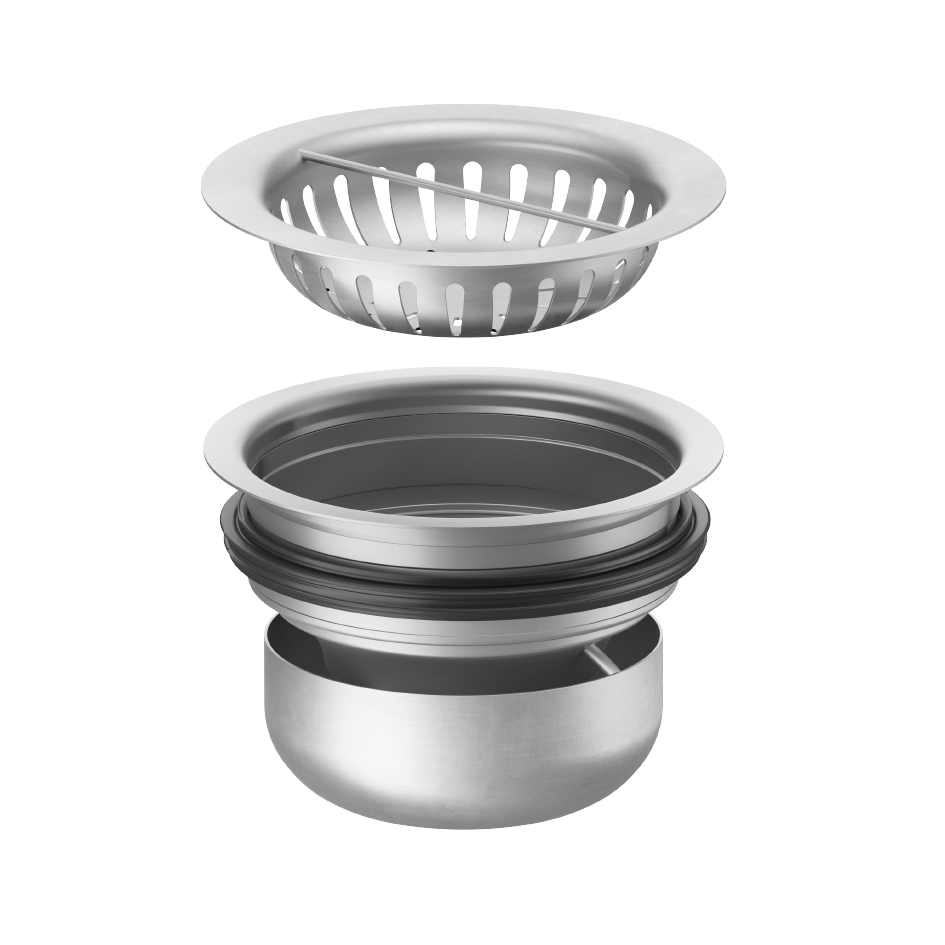

ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 4.2 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1.9 kg

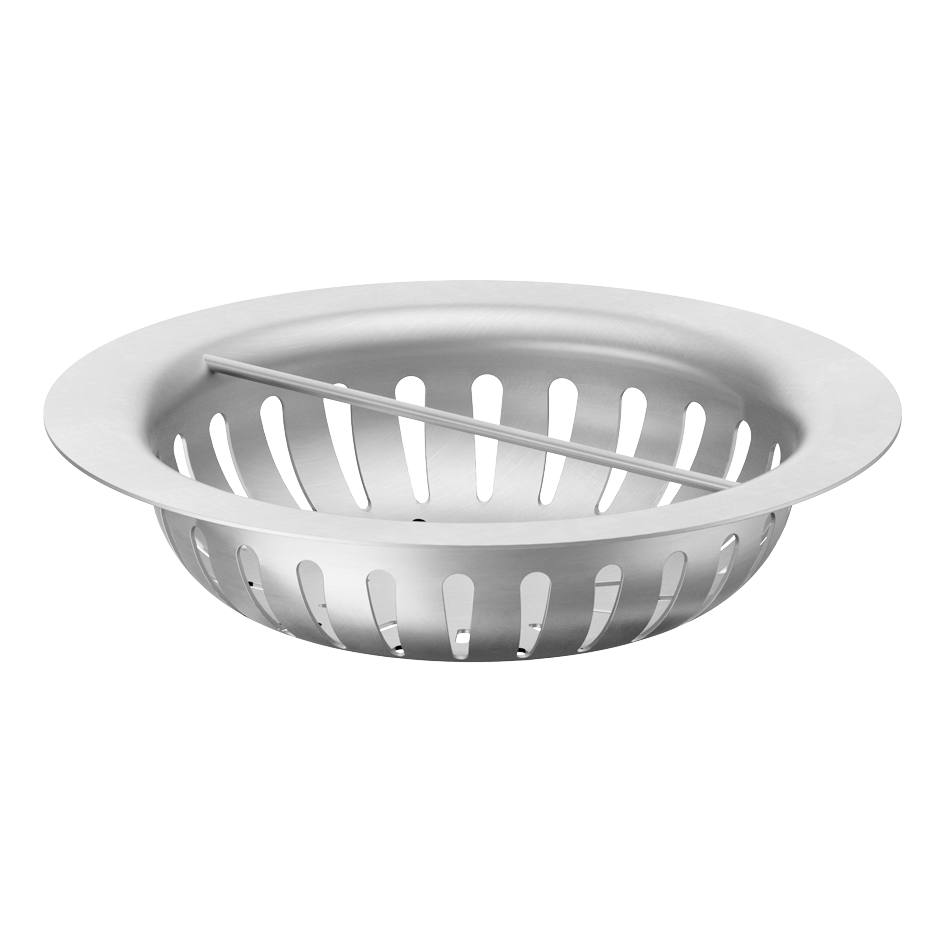

Silt basket
![Fixed height with vertical outlet - Square top Fixed height with vertical outlet - Square top](https://www.buildingdrainage.aco/catalog/_processed_/1/7/csm_fixed_height_with_vertical_outlet_-_square_top_123131_cc138f5a81.jpg?fileVersion=1699286167)
Fixed height with vertical outlet - Square top
![Fixed height with horizontal outlet - Square top Fixed height with horizontal outlet - Square top](https://www.buildingdrainage.aco/catalog/_processed_/a/e/csm_fixed_height_with_horizontal_outlet_-_square_top_123129_c2a9403c3f.jpg?fileVersion=1699286168)
Fixed height with horizontal outlet - Square top
![Telescopic – vertical outlet Telescopic – vertical outlet](https://www.buildingdrainage.aco/catalog/_processed_/c/9/csm_telescopic__vertical_outlet_123127_24d2852e67.jpg?fileVersion=1699286168)
Telescopic – vertical outlet
![Telescopic – horizontal outlet Telescopic – horizontal outlet](https://www.buildingdrainage.aco/catalog/_processed_/f/0/csm_telescopic__horizontal_outlet_123125_86ccd6ac0b.jpg?fileVersion=1699286168)
Telescopic – horizontal outlet
![Fixed height with vertical outlet - Round top Fixed height with vertical outlet - Round top](https://www.buildingdrainage.aco/catalog/_processed_/6/a/csm_fixed_height_with_vertical_outlet_-_round_top_391929_627298dfb4.png?fileVersion=1720514766)
Fixed height with vertical outlet - Round top
![Extended fixed height – vertical outlet Extended fixed height – vertical outlet](https://www.buildingdrainage.aco/catalog/_processed_/f/7/csm_extended_fixed_height__vertical_outlet_391975_1ce70a498b.png?fileVersion=1720514766)
Extended fixed height – vertical outlet
![Fixed height with horizontal outlet - Round top Fixed height with horizontal outlet - Round top](https://www.buildingdrainage.aco/catalog/_processed_/d/d/csm_fixed_height_with_horizontal_outlet_-_round_top_391973_ba3866b0b5.png?fileVersion=1720514766)
Fixed height with horizontal outlet - Round top
![Extended fixed height – horizontal outlet Extended fixed height – horizontal outlet](https://www.buildingdrainage.aco/catalog/_processed_/3/4/csm_extended_fixed_height__horizontal_outlet_391977_ef84e14671.png?fileVersion=1720514767)
Extended fixed height – horizontal outlet
