Extended fixed height – horizontal outlet

Product benefits

  • Fully inspectable and cleanable
  • Fully removable and easily cleanable stainless steel foul air trap (FAT)
  • Full drainability
  • Internal radii equal or larger than 3 mm
  • Fully welded hygienic joints
  • Steel thickness min. 1,5 mm
  • Edge infill
  • ACO protective cover available
  • Fully pickled and passivated

Product information

  • Certified according to EN 1253-1
  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Adjustable EasyFix leveling feet
  • Wide range of gratings for various load classes including slip resistant solutions
  • Silt basket available as accessory
Flow rate

EN 1253-1 / Direct *
Gully top dimensionsOutlet diameter ∅Foul air trapFlow rate

EN 1253-1 / Direct *
MaterialItem

number
Remember
[mm][mm][l/s]
Extended foul air trap300 x 300110With6.5 / 8.81.4301447663
1.4404447665
None300 x 300110Without1.4301447664
1.4404447666
Waste basket
and standard foul air trap
300 x 300110With4.7 / 3.71.4301446939
1.4404446940
RecessOutlet diameter ∅Flow rate

EN 1253-1 / Direct *
Odour trapMaterialItem

number
300 x 300 mm110 mm6.5 / 8.8 l/sWith1.4301447663
300 x 300 mm110 mm6.5 / 8.8 l/sWith1.4404447665
300 x 300 mm110 mmWithout1.4301447664
300 x 300 mm110 mmWithout1.4404447666
300 x 300 mm110 mm4.7 / 3.7 l/sWith1.4301446939
300 x 300 mm110 mm4.7 / 3.7 l/sWith1.4404446940

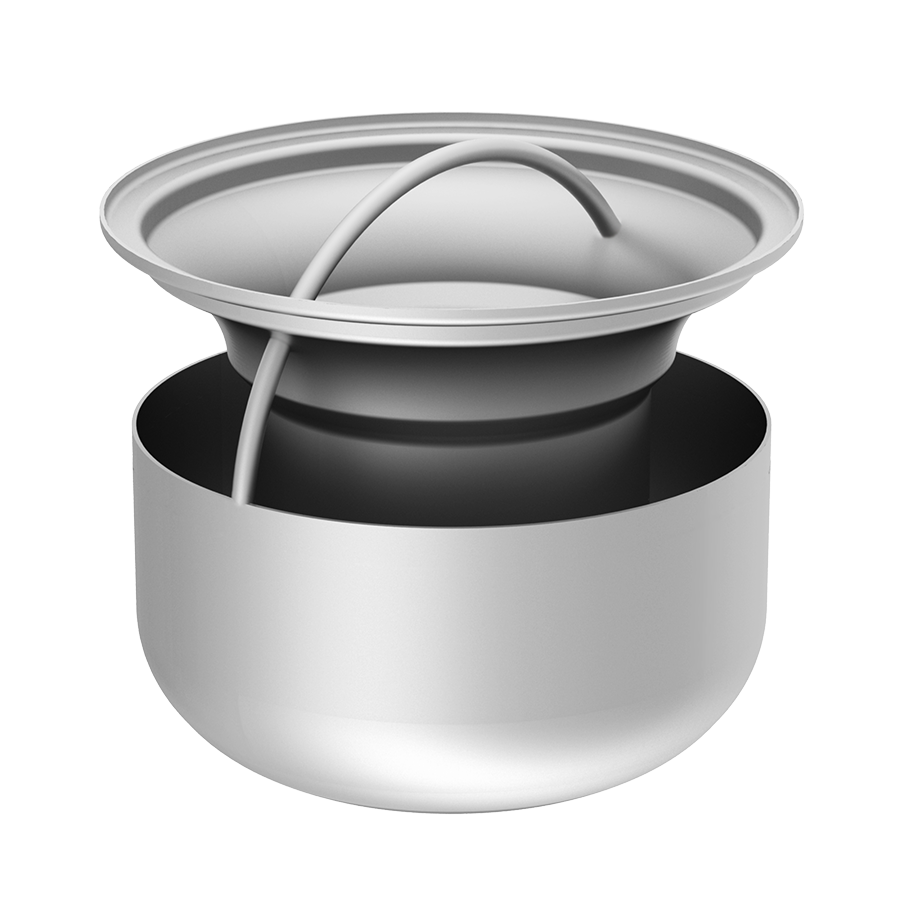

ACO Easy FAT 218

Suitable for
  • ACO gully 218, fixed height
Description

Replacement sealing ring:

  • 98403

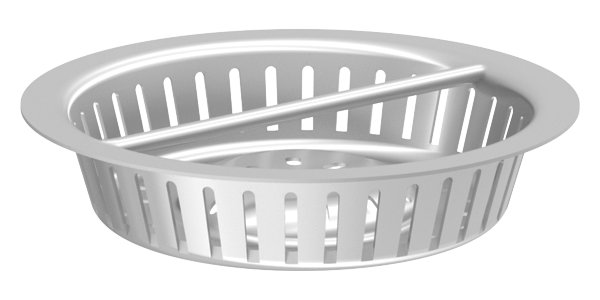

Optional compatible silt baskets:

  • 416910 (1.4301)
  • 416911 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.9 l/s
  • Maximum flow rate with vertical gully: 5.6 l/s
  • Material: 1.4301
  • Silt basket not included
  • Weight: 1.3 kg

ACO Easy FAT 218

Suitable for
  • ACO gully 218, fixed height
Description

Replacement sealing ring:

  • 98403

Optional compatible silt baskets:

  • 416910 (1.4301)
  • 416911 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.9 l/s
  • Maximum flow rate with vertical gully: 5.6 l/s
  • Material: 1.4404
  • Silt basket not included
  • Weight: 1.3 kg

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

ACO Easy FAT 218

Suitable for
  • ACO gully 218, fixed height
Description

Replacement sealing ring:

  • 98403

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.6 l/s
  • Maximum flow rate with vertical gully: 5.8 l/s
  • Material: 1.4301
  • Silt basket included
  • Weight: 1.9 kg

ACO Easy FAT 218

Suitable for
  • ACO gully 218, fixed height
Description

Replacement sealing ring:

  • 98403

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.6 l/s
  • Maximum flow rate with vertical gully: 5.8 l/s
  • Material: 1.4404
  • Silt basket included
  • Weight: 1.9 kg

ACO mesh tundish 300

Suitable for
  • ACO gully tops with frame dimensions 300 x 300 mm
Description

Features

  • Grating width x length (mm): 268 mm x 268 mm
  • Grating height (mm): 30 mm
  • Funnel width x length (mm): 223 mm x 223 mm
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO mesh tundish 300

Suitable for
  • ACO gully tops with frame dimensions 300 x 300 mm
Description

Features

  • Grating width x length (mm): 268 mm x 268 mm
  • Grating height (mm): 30 mm
  • Funnel width x length (mm): 223 mm x 223 mm
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

ACO quadrato tundish 300

Suitable for
  • ACO gully tops with frame dimensions 300 x 300 mm
Description

Features

  • Grating width x length (mm): 268 mm x 268 mm
  • Grating height (mm): 30 mm
  • Funnel width x length (mm): 223 mm x 223 mm
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO quadrato tundish 300

Suitable for
  • ACO gully tops with frame dimensions 300 x 300 mm
Description

Features

  • Grating width x length (mm): 268 mm x 268 mm
  • Grating height (mm): 30 mm
  • Funnel width x length (mm): 223 mm x 223 mm
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

ACO fire resistant kit for gully 218/ DN 110

Suitable for
  • ACO hygienic gully 218
    • Fixed height, vertical
    • Telescopic, vertical
Description
  • Fixed height, vertical
  • Telescopic, vertical
  • Made from 1.4404 (316) grade of stainless steel
  • NBR

ACO fire resistant kit for gully 218/ DN 160

Suitable for
  • ACO hygienic gully 218
    • Fixed height, vertical
    • Telescopic, vertical
Description
  • Fixed height, vertical
  • Telescopic, vertical
  • Made from 1.4404 (316) grade of stainless steel
  • NBR

Silt basket

Suitable for
  • ACO hygienic gully 218 - Horizontal
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
    • Direction of gully outlet: horizontal
Description

Stainless steel

  • 0,7 litre capacity
  • Material grade 1.4301 (304)

Silt basket

Suitable for
  • ACO hygienic gully 218 - Horizontal
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
    • Direction of gully outlet: horizontal
Description

Stainless steel

  • 0,7 litre capacity
  • Material grade 1.4404 (316L)

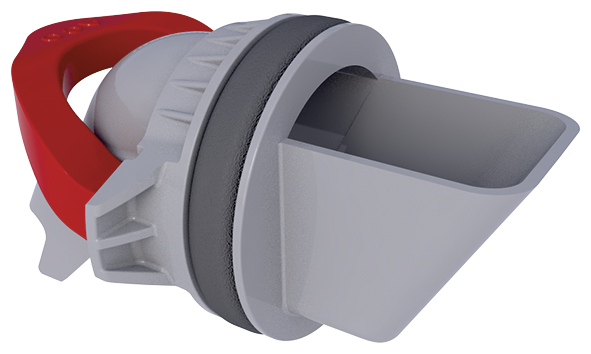

Push-in foul air trap

Suitable for
  • Gully body variant-CR 218
    • DN 100
    • Socket inclination: 1.5°
Description
  • Plastic
  • Weight: 0.2 kg
  • Rabattgruppe: 3

Odour trap

Description
  • Material grade 1.4301 (304)

Odour trap

Description
  • Material grade 1.4404 (316L)

Silt basket

Suitable for

ACO hygienic gully 218 - extended fixed height

Description
  • Material grade 1.4301 (304)

Silt basket

Suitable for

ACO hygienic gully 218 - extended fixed height

Description
  • Material grade 1.4404 (316L)

Odour trap

Suitable for
  • ACO hygienic gully 218
    • Fixed height
    • Telescopic
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Odour trap

Suitable for
  • ACO hygienic gully 218
    • Fixed height
    • Telescopic
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)

Standard foul air trap support

Suitable for
  • ACO hygienic gully 218
    • Telescopic
Description

NBR


Friction ring

Suitable for
  • ACO hygienic gully 218
    • Telescopic
Description

SBR
