Fixed Height With Horizontal Outlet - Round Top 335915

Fixed height with horizontal outlet - Round top

Product benefits

  • Fully inspectable and cleanable
  • Fully removable and easily cleanable stainless steel foul air trap (FAT)
  • Full drainability
  • Internal radii equal or larger than 3 mm
  • Fully welded hygienic joints
  • Steel thickness min. 1,5 mm
  • Edge infill
  • ACO protective cover available
  • Fully pickled and passivated
Contact
Downloads

Product information

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Certified according to EN 1253-1
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Outlet diameter 75 or 110 mm
  • Gully top size 200 x 200 mm or 250 x 250 mm
  • Adjustable EasyFix levelling feet
  • Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
  • Silt basket available as accessory
Gully top diameterOutlet diameter ∅Foul air trapFlow rate

EN 1253-1 / Direct *		MaterialItem

number		Remember
[mm][mm][l/s]
23075Without1.4301446738
1.4404446746
With2.6 / 4.21.4301446739
1.4404446747
230110Without1.4301446740
1.4404446748
With2.8 / 51.4301446741
1.4404446749
DiameterOutlet diameter ∅Flow rate

EN 1253-1 / Direct *		Odour trapMaterialItem

number
230 mm75 mmWithout1.4301446738
230 mm75 mmWithout1.4404446746
230 mm75 mm2.6 / 4.2 l/sWith1.4301446739
230 mm75 mm2.6 / 4.2 l/sWith1.4404446747
230 mm110 mmWithout1.4301446740
230 mm110 mmWithout1.4404446748
230 mm110 mm2.8 / 5 l/sWith1.4301446741
230 mm110 mm2.8 / 5 l/sWith1.4404446749
ACO weldless ladder grating

ACO weldless ladder grating

ACO frameless ladder grating

ACO frameless ladder grating

ACO frameless ladder grating - Round

ACO frameless ladder grating - Round

ACO hygienic ladder grating

ACO hygienic ladder grating

ACO hygienic ladder grating - Round

ACO hygienic ladder grating - Round

ACO hygienic slot cover

ACO hygienic slot cover

ACO hygienic slot cover - Round

ACO hygienic slot cover - Round

ACO perforated grating

ACO perforated grating

ACO perforated grating - Round

ACO perforated grating - Round

ACO mesh grating

ACO mesh grating

ACO quadrato grating

ACO quadrato grating

ACO heelsafe grating

ACO heelsafe grating

ACO multi-slot 5 grating

ACO multi-slot 5 grating

ACO odour proof gully cover

ACO odour proof gully cover

ACO tile grating

ACO tile grating

ACO ladder grating

ACO ladder grating

ACO perforated grating

ACO perforated grating

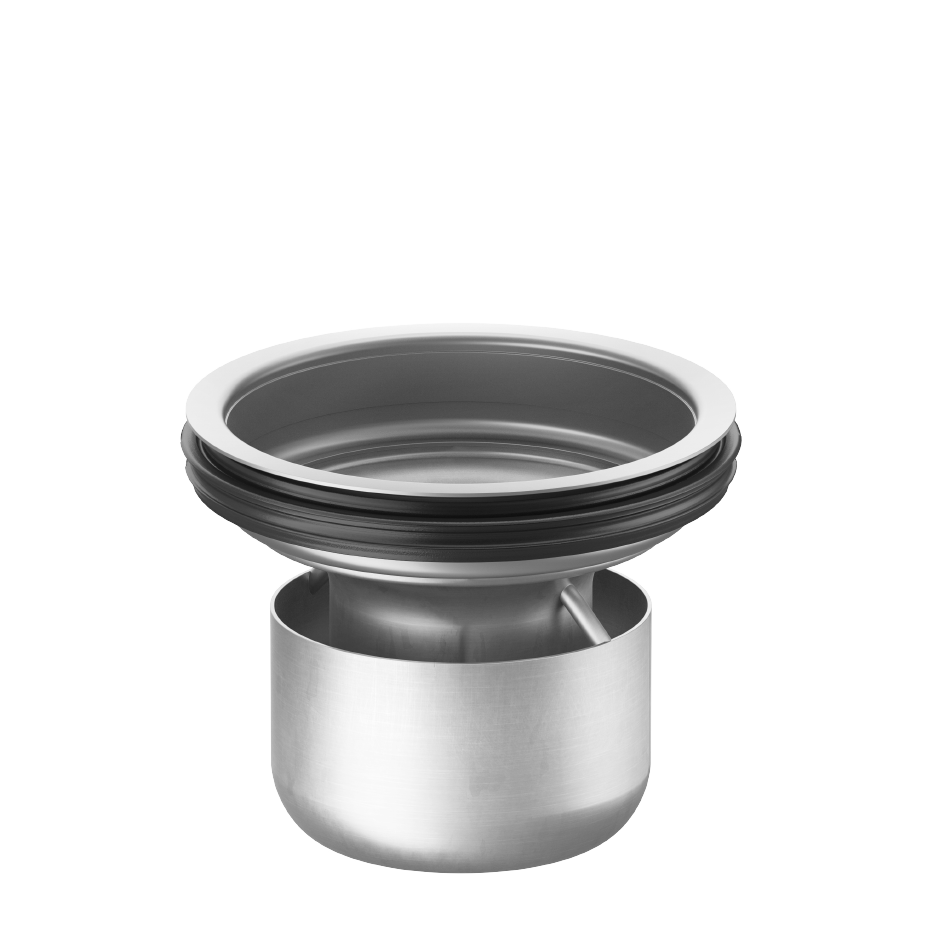

ACO Easy FAT 157

Suitable for
  • ACO gully 157, fixed height
Description

Replacement sealing ring:

  • 98402

Optional compatible silt baskets:

  • 416906 (1.4301)
  • 416907 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 2.6 l/s
  • Maximum flow rate with vertical gully: 2.6 l/s
  • Material: 1.4301
  • Silt basket not included
  • Weight: 0.9 kg
Item no.
449681

ACO Easy FAT 157

Suitable for
  • ACO gully 157, fixed height
Description

Replacement sealing ring:

  • 98402

Optional compatible silt baskets:

  • 416906 (1.4301)
  • 416907 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 2.6 l/s
  • Maximum flow rate with vertical gully: 2.6 l/s
  • Material: 1.4404
  • Silt basket not included
  • Weight: 0.9 kg
Item no.
449683

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301
Item no.
450648

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301
Item no.
450649

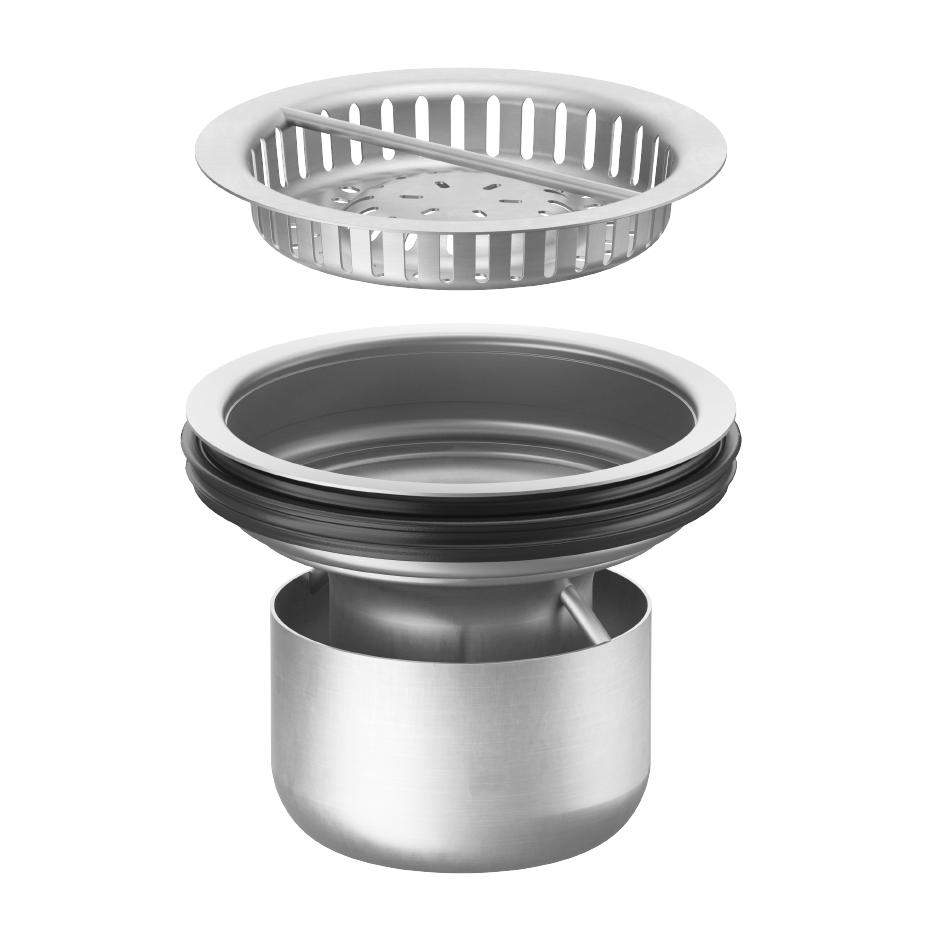

ACO Easy FAT 157

Suitable for
  • ACO gully 157, fixed height
Description

Replacement sealing ring:

  • 98402

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 2.4 l/s
  • Maximum flow rate with vertical gully: 2.4 l/s
  • Material: 1.4301
  • Silt basket included
  • Weight: 1.1 kg
Item no.
449682

ACO Easy FAT 157

Suitable for
  • ACO gully 157, fixed height
Description

Replacement sealing ring:

  • 98402

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 2.4 l/s
  • Maximum flow rate with vertical gully: 2.4 l/s
  • Material: 1.4404
  • Silt basket included
  • Weight: 1.1 kg
Item no.
449684

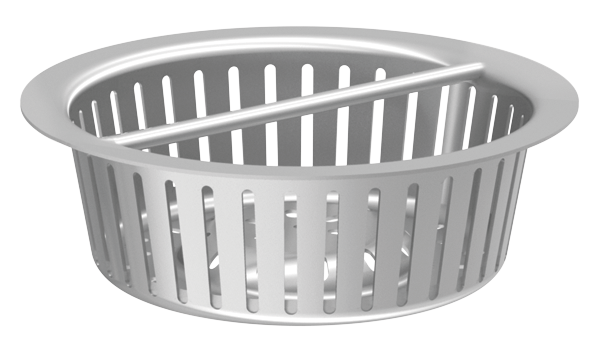

Silt basket

Suitable for
  • ACO gully 157 - vertical
    • Fixed height or elescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,6 litre capacity
  • Material grade 1.4301 (304)
Item no.
416904

Silt basket

Suitable for
  • ACO gully 157 - vertical
    • Fixed height or elescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,6 litre capacity
  • Material grade 1.4404 (316L)
Item no.
416905

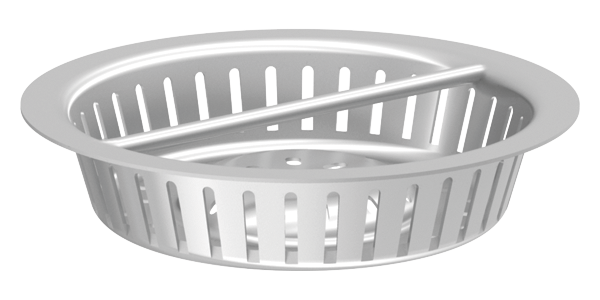

Silt basket

Suitable for
  • ACO gully 142 and 157 - horizontal
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
    • Direction of gully outlet: horizontal
Description
  • Stainless steel
  • 0,3 litre capacity
  • Material grade 1.4301 (304)
Item no.
416906

Silt basket

Suitable for
  • ACO gully 142 and 157 - horizontal
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
    • Direction of gully outlet: horizontal
Description
  • Stainless steel
  • 0,3 litre capacity
  • Material grade 1.4404 (316L)
Item no.
416907

ACO fire resistant kit for gully 157/DN 75

Suitable for
  • ACO hygienic gully 157
    • Fixed height, vertica
    • Telescopic, vertical
Description
  • Fixed height,vertical
  • Telescopic, vertical
  • Made from 1.4404 (316) grade of stainless steel
  • NBR
Item no.
416932

ACO fire resistant kit for gully 157/DN 110

Suitable for
  • ACO hygienic gully 157
    • Fixed height, vertica
    • Telescopic, vertical
Description
  • Fixed height,vertical
  • Telescopic, vertical
  • Made from 1.4404 (316) grade of stainless steel
  • NBR
Item no.
416933

445845

Suitable for
  • ACO gully 157
    • Outlet DN 100
    • Horizontal
Description
  • Plastic
Item no.
445845

Odour trap

Suitable for
  • ACO hygienic gully 157
    • Telescopic
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)
Item no.
408200

Odour trap

Suitable for
  • ACO hygienic gully 157
    • Telescopic
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)
Item no.
408210

Standard foul air trap support

Suitable for
  • ACO hygienic gully 157
    • Fixed height
    • Telescopic
Description

NBR

Item no.
408201

Friction ring

Suitable for
  • ACO hygienic gully 157
    • Telescopic
Description

SBR

Item no.
408205
