Telescopic – horizontal outlet

Product benefits

  • Fully inspectable and cleanable
  • Fully removable and easily cleanable stainless steel foul air trap (FAT)
  • Full drainability
  • Internal radii equal or larger than 3 mm
  • Fully welded hygienic joints
  • Steel thickness min. 1,5 mm
  • Fully pickled and passivated

Product information

  • Certified according to EN 1253-1
  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Suitable for all floor types including vinyl flooring
  • Location flange or integrated membrane flange for either adhesive bonding or mechanical clamp
  • Telescopic friction ring included
  • Adjustable EasyFix leveling feet
Flange typeOutlet diameter ∅Min. flow rateMax. flow rateFoul air trapMaterialItem

number
DownloadsRemember
[mm][l/s][l/s]
Location flange751.41.8Without1.4301414720
1.4404414820
With1.4301414721
1.4404414821
Adhesive bonding flange751.41.8Without1.4301414722
1.4404414822
With1.4301414723
1.4404414823
Mechanical clamping flange751.41.8Without1.4301414724
1.4404414824
With1.4301414725
1.4404414825
Location flange1101.62.0Without1.4301414726
1.4404414826
With1.4301414727
1.4404414827
Adhesive bonding flange1101.62.0Without1.4301414728
1.4404414828
With1.4301414729
1.4404414829
Mechanical clamping flange1101.62.0Without1.4301414730
1.4404414830
With1.4301414731
1.4404414831
Flange designOutlet diameter ∅Odour trapMaterialItem

number
Location flange75 mmWithout1.4301414720
Location flange75 mmWithout1.4404414820
Location flange75 mmWith1.4301414721
Location flange75 mmWith1.4404414821
Adhesive bonding flange75 mmWithout1.4301414722
Adhesive bonding flange75 mmWithout1.4404414822
Adhesive bonding flange75 mmWith1.4301414723
Adhesive bonding flange75 mmWith1.4404414823
Mechanical clamping flange75 mmWithout1.4301414724
Mechanical clamping flange75 mmWithout1.4404414824
Mechanical clamping flange75 mmWith1.4301414725
Mechanical clamping flange75 mmWith1.4404414825
Location flange110 mmWithout1.4301414726
Location flange110 mmWithout1.4404414826
Location flange110 mmWith1.4301414727
Location flange110 mmWith1.4404414827
Adhesive bonding flange110 mmWithout1.4301414728
Adhesive bonding flange110 mmWithout1.4404414828
Adhesive bonding flange110 mmWith1.4301414729
Adhesive bonding flange110 mmWith1.4404414829
Mechanical clamping flange110 mmWithout1.4301414730
Mechanical clamping flange110 mmWithout1.4404414830
Mechanical clamping flange110 mmWith1.4301414731
Mechanical clamping flange110 mmWith1.4404414831

Silt basket

Suitable for
  • ACO gully 142 - Telescopic
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
    • Outlet øD [mm]: 125
    • Direction of gully outlet: vertical, horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,4 litre capacity
  • Material grade 1.4301 (304)

Silt basket

Suitable for
  • ACO gully 142 - Telescopic
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
    • Outlet øD [mm]: 125
    • Direction of gully outlet: vertical, horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,4 litre capacity
  • Material grade 1.4404 (316L)

ACO tundish

Suitable for
  • ACO gully top size 200 x 200 mm
Description
  • Stainless steel
  • Material grade 1.4301 (304)

ACO tundish portable

Suitable for
  • ACO drainage independent of visible edge dimensions
Description
  • Stainless steel
  • Material grade 1.4301 (304)

ACO fire resitant kit for gully 142 / DN 75

Suitable for
  • ACO hygienic gully 142
    • Fixed height, vertical
    • Telescopic, vertical
Description
  • Fixed height, vertical
  • Telescopic,vertical
  • DN75 and DN 100
  • Made from 1.4404 (316) grade of stainless steel
  • NBR

ACO fire resitant kit for gully 142 / DN 100

Suitable for
  • ACO hygienic gully 142
    • Fixed height, vertical
    • Telescopic, vertical
Description
  • Fixed height, vertical
  • Telescopic,vertical
  • DN75 and DN 100
  • Made from 1.4404 (316) grade of stainless steel
  • NBR

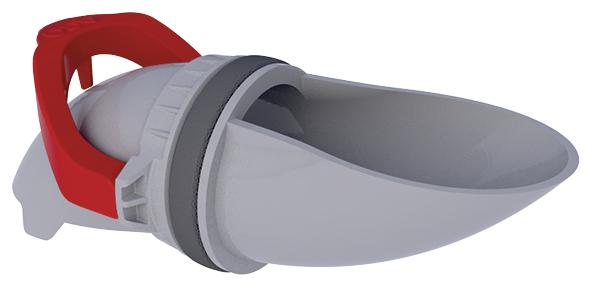

Push-in foul air trap

Suitable for
  • Gully body variant-CR 142
    • DN 70
    • Socket inclination: 1.5°
Description
  • Plastic
  • Weight: 0.1 kg

Standard foul air trap

Suitable for
  • ACO hygienic gully 142
    • Fixed height
    • Telescopic
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)

Standard foul air trap

Suitable for
  • ACO hygienic gully 142
    • Fixed height
    • Telescopic
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Friction ring

Suitable for
  • ACO hygienic gully 142
    • Telescopic
Description

SBR

Standard foul air trap support

Suitable for
  • ACO hygienic gully 142
    • Fixed height
    • Telescopic
Description

SBR
