Gully tops for ACO hygienic gully 142 - telescopic

Product benefits

  • Fully inspectable and cleanable
  • Internal radii equal or larger than 3 mm
  • Fully welded hygienic joints
  • Steel thickness min. 1,5 mm
  • Edge infill
  • ACO protective cover available
  • Fully pickled and passivated

Product information

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Certified according to EN 1253-1
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Gully top size 200 x 200 mm
  • Adjustable EasyFix levelling feet
  • Wide range of gratings for load classes L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solutions
  • Silt basket available as accessory
DescriptionDimensionFrame heightVersionItem

number
Remember
[mm][mm]
Standard edge200 x 200251.4301414732
1.4404414832
Extended edge200 x 200251.4301414734
1.4404414834
Extended top with drainage holes200 x 200251.4301414735
1.4404414835
Plastic top with stainless steel grating (K3)150 x 1505Plastic414903
MEKU top with stainless steel grating (K3)150 x 1505Plastic414904
Square top with stainless steel grating (K3)150 x 1505Plastic414905
PLastic top with stainless steel grating (K3)150 x 1505Plastic414906
Plastic thin-bed top with sliding frame and stainless steel grating (K3)150 x 1505Plastic414907
Square top with sanded flange and stainless steel grating 150x150 mm (K3)150 x 1505Plastic414909
DescriptionDimensionFrame heightVersionItem

number
[[RESOURCEIM0005981.TIF]]Standard edge200 x 200 mm25 mm1.4301414732
[[RESOURCEIM0010192.TIF]][[RESOURCEIM0005981.TIF]]Standard edge200 x 200 mm25 mm1.4404414832
[[RESOURCEIM0005416.TIF]]Extended edge200 x 200 mm25 mm1.4301414734
[[RESOURCEIM0005416.TIF]]Extended edge200 x 200 mm25 mm1.4404414834
[[RESOURCEIM0005415.TIF]]Extended top with drainage holes200 x 200 mm25 mm1.4301414735
[[RESOURCEIM0005415.TIF]]Extended top with drainage holes200 x 200 mm25 mm1.4404414835
[[RESOURCEIM0005982.TIF]]Plastic top with stainless steel grating (K3)150 x 150 mm5 mmPlastic414903
[[RESOURCEIM0005983.TIF]]MEKU top with stainless steel grating (K3)150 x 150 mm5 mmPlastic414904
[[RESOURCEIM0005984.TIF]]Square top with stainless steel grating (K3)150 x 150 mm5 mmPlastic414905
[[RESOURCEIM0005985.TIF]]PLastic top with stainless steel grating (K3)150 x 150 mm5 mmPlastic414906
[[RESOURCEIM0005986.TIF]]Plastic thin-bed top with sliding frame and stainless steel grating (K3)150 x 150 mm5 mmPlastic414907
[[RESOURCEIM0005987.TIF]]Square top with sanded flange and stainless steel grating 150x150 mm (K3)150 x 150 mm5 mmPlastic414909

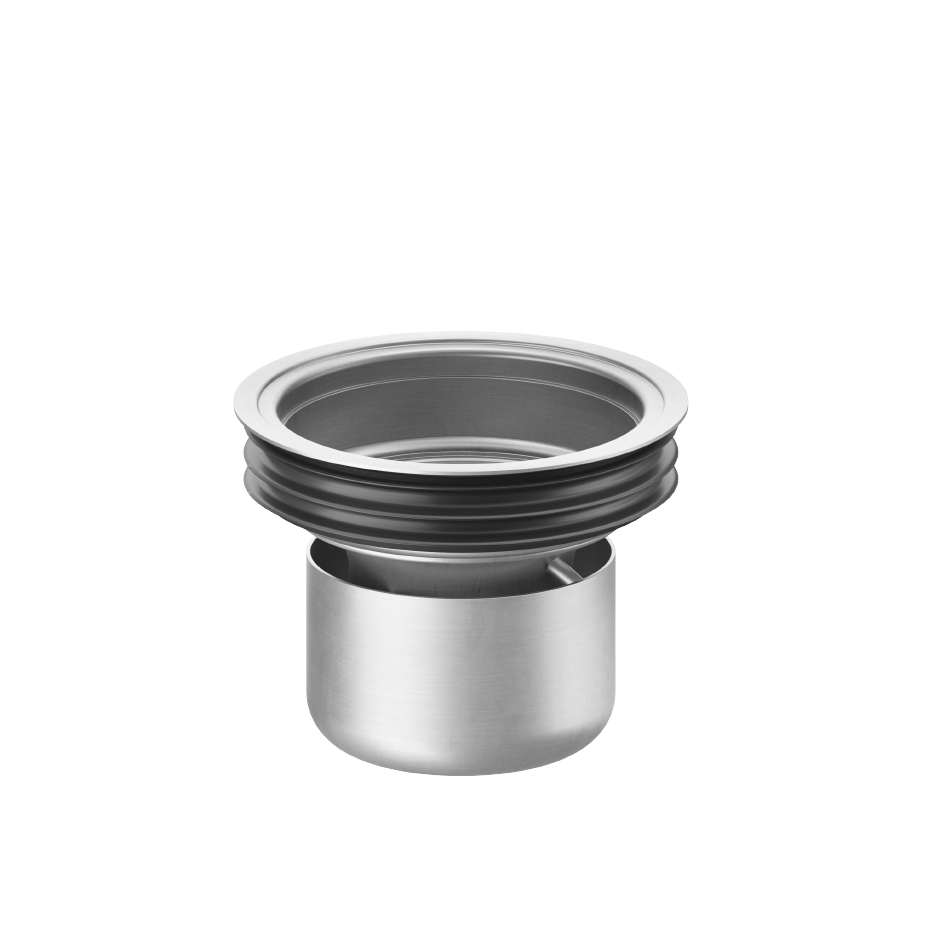

ACO Easy FAT

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Optional compatible silt baskets:

  • 449960 (1.4301)
  • 449961 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 1.2 l/s
  • Maximum flow rate with vertical gully: 1.2 l/s
  • Material: 1.4301
  • Silt basket not included
  • Weight: 0.6 kg

ACO Easy FAT

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Optional compatible silt baskets:

  • 449960 (1.4301)
  • 449961 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 1.2 l/s
  • Maximum flow rate with vertical gully: 1.2 l/s
  • Material: 1.4404
  • Silt basket not included
  • Weight: 0.6 kg

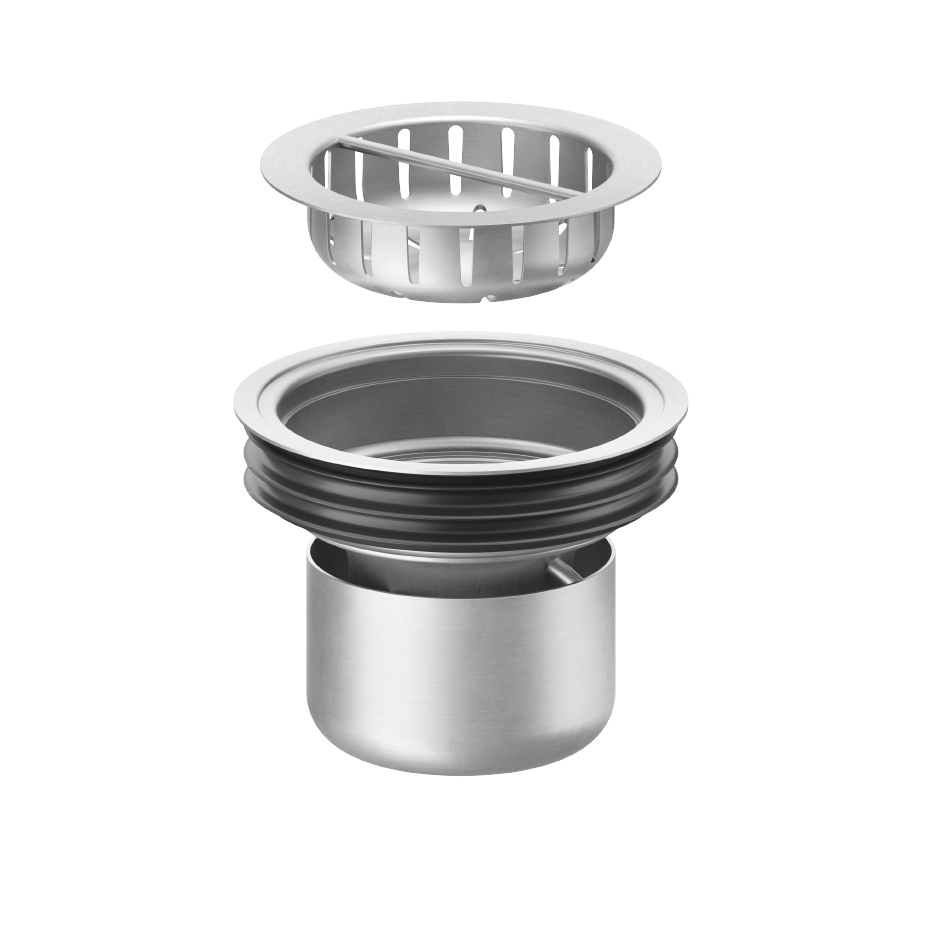

ACO Easy FAT

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 0.8 l/s
  • Maximum flow rate with vertical gully: 0.8 l/s
  • Material: 1.4301
  • Silt basket included
  • Weight: 0.7 kg

ACO Easy FAT

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 0.8 l/s
  • Maximum flow rate with vertical gully: 0.8 l/s
  • Material: 1.4404
  • Silt basket included
  • Weight: 0.7 kg

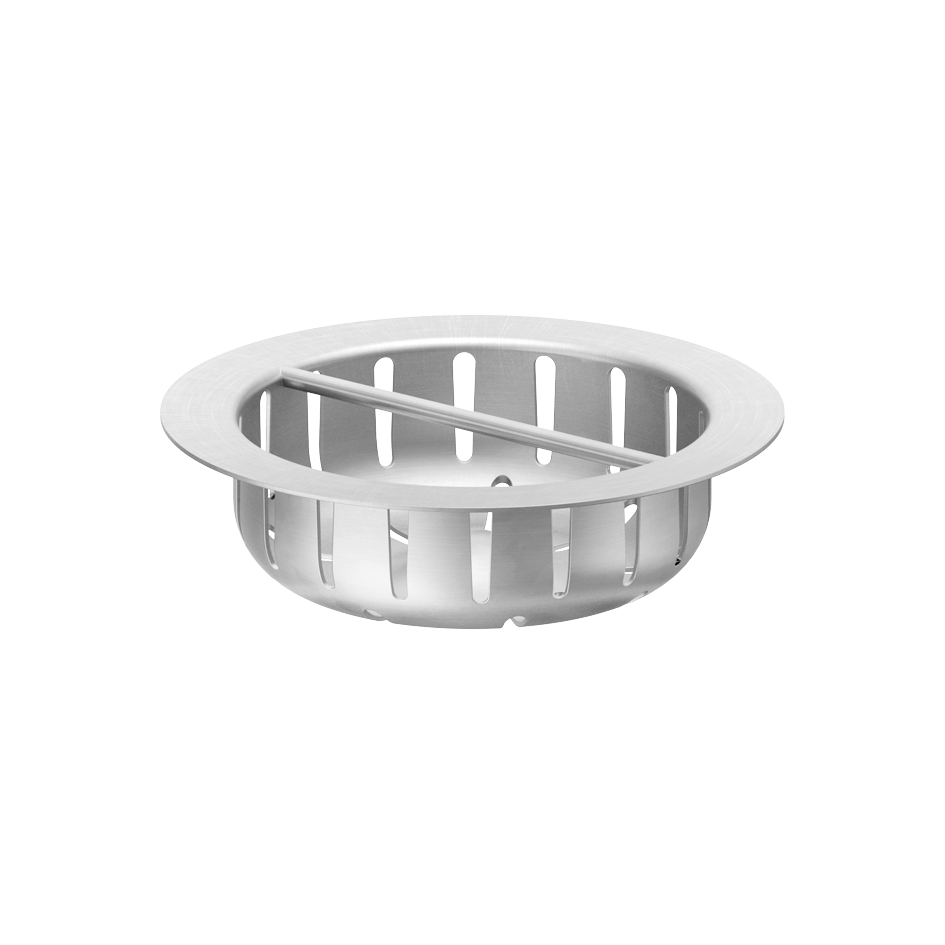

Silt basket

Suitable for

Compatible only with Easy FAT 125

  • 449677
  • 449679
Description
  • Material grade 1.4301 (304)

Silt basket

Suitable for

Compatible only with Easy FAT 125

  • 449677
  • 449679
Description
  • Material grade 1.4404 (316L)
