Gully Tops For ACO Hygienic Gully 142 - Telescopic 263539

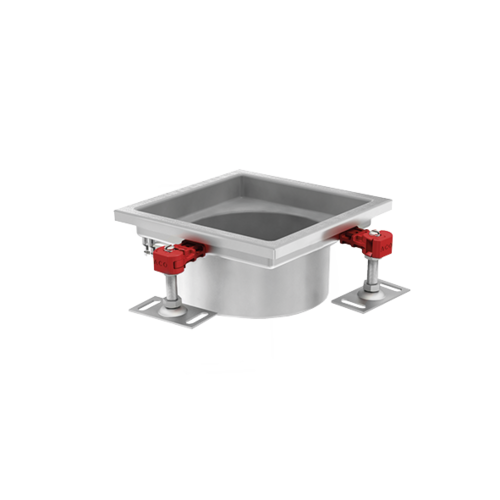

Gully tops for ACO hygienic gully 142 - telescopic

Product benefits

  • Fully inspectable and cleanable
  • Internal radii equal or larger than 3 mm
  • Fully welded hygienic joints
  • Steel thickness min. 1,5 mm
  • Edge infill
  • ACO protective cover available
  • Fully pickled and passivated

Product information

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Certified according to EN 1253-1
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Gully top size 200 x 200 mm
  • Adjustable EasyFix levelling feet
  • Wide range of gratings for load classes L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solutions
  • Silt basket available as accessory
DescriptionDimensionFrame heightVersionItem

number		Remember
[mm][mm]
Standard edge200 x 200251.4301414732
1.4404414832
Extended edge200 x 200251.4301414734
1.4404414834
Extended top with drainage holes200 x 200251.4301414735
1.4404414835
Plastic top with stainless steel grating (K3)150 x 1505Plastic414903
MEKU top with stainless steel grating (K3)150 x 1505Plastic414904
Square top with stainless steel grating (K3)150 x 1505Plastic414905
PLastic top with stainless steel grating (K3)150 x 1505Plastic414906
Plastic thin-bed top with sliding frame and stainless steel grating (K3)150 x 1505Plastic414907
Square top with sanded flange and stainless steel grating 150x150 mm (K3)150 x 1505Plastic414909
DescriptionDimensionFrame heightVersionItem

number
Standard edge200 x 200 mm25 mm1.4301414732
Standard edge200 x 200 mm25 mm1.4404414832
Extended edge200 x 200 mm25 mm1.4301414734
Extended edge200 x 200 mm25 mm1.4404414834
Extended top with drainage holes200 x 200 mm25 mm1.4301414735
Extended top with drainage holes200 x 200 mm25 mm1.4404414835
Plastic top with stainless steel grating (K3)150 x 150 mm5 mmPlastic414903
MEKU top with stainless steel grating (K3)150 x 150 mm5 mmPlastic414904
Square top with stainless steel grating (K3)150 x 150 mm5 mmPlastic414905
PLastic top with stainless steel grating (K3)150 x 150 mm5 mmPlastic414906
Plastic thin-bed top with sliding frame and stainless steel grating (K3)150 x 150 mm5 mmPlastic414907
Square top with sanded flange and stainless steel grating 150x150 mm (K3)150 x 150 mm5 mmPlastic414909

Silt basket

Suitable for
  • ACO gully 142 - Telescopic
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
    • Outlet øD [mm]: 125
    • Direction of gully outlet: vertical, horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,4 litre capacity
  • Material grade 1.4301 (304)
Item no.
416900

Silt basket

Suitable for
  • ACO gully 142 - Telescopic
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
    • Outlet øD [mm]: 125
    • Direction of gully outlet: vertical, horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,4 litre capacity
  • Material grade 1.4404 (316L)
Item no.
416901

ACO Easy FAT 125

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Optional compatible silt baskets:

  • 449960 (1.4301)
  • 449961 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 1.2 l/s
  • Maximum flow rate with vertical gully: 1.2 l/s
  • Material: 1.4301
  • Silt basket not included
  • Weight: 0.6 kg
Item no.
449677

ACO Easy FAT 125

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Optional compatible silt baskets:

  • 449960 (1.4301)
  • 449961 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 1.2 l/s
  • Maximum flow rate with vertical gully: 1.2 l/s
  • Material: 1.4404
  • Silt basket not included
  • Weight: 0.6 kg
Item no.
449679

ACO mesh tundish 200

Suitable for
  • ACO gully tops with frame dimensions 200 x 200 mm
Description

Features

  • Grating width x length (mm): 168 mm x 168 mm
  • Grating height (mm): 25 mm
  • Funnel width x length (mm): 223 mm x 223 mm
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301
Item no.
450636

ACO mesh tundish 200

Suitable for
  • ACO gully tops with frame dimensions 200 x 200 mm
Description

Features

  • Grating width x length (mm): 168 mm x 168 mm
  • Grating height (mm): 25 mm
  • Funnel width x length (mm): 223 mm x 223 mm
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301
Item no.
450637

ACO quadrato tundish 200

Suitable for
  • ACO gully tops with frame dimensions 200 x 200 mm
Description

Features

  • Grating width x length (mm): 168 mm x 168 mm
  • Grating height (mm): 25 mm
  • Funnel width x length (mm): 223 mm x 223 mm
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301
Item no.
450642

ACO quadrato tundish 200

Suitable for
  • ACO gully tops with frame dimensions 200 x 200 mm
Description

Features

  • Grating width x length (mm): 168 mm x 168 mm
  • Grating height (mm): 25 mm
  • Funnel width x length (mm): 223 mm x 223 mm
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301
Item no.
450643

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301
Item no.
450648

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301
Item no.
450649

ACO Easy FAT 125

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 0.8 l/s
  • Maximum flow rate with vertical gully: 0.8 l/s
  • Material: 1.4301
  • Silt basket included
  • Weight: 0.7 kg
Item no.
449678

ACO Easy FAT 125

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 0.8 l/s
  • Maximum flow rate with vertical gully: 0.8 l/s
  • Material: 1.4404
  • Silt basket included
  • Weight: 0.7 kg
Item no.
449680

Silt basket

Suitable for

Compatible only with Easy FAT 125

  • 449677
  • 449679
Description
  • Material grade 1.4301 (304)
Item no.
449960

Silt basket

Suitable for

Compatible only with Easy FAT 125

  • 449677
  • 449679
Description
  • Material grade 1.4404 (316L)
Item no.
449961
Fixed height – vertical outlet

Fixed height – vertical outlet

fixed height – horizontal outlet

fixed height – horizontal outlet

Telescopic – vertical outlet

Telescopic – vertical outlet

Telescopic – horizontal outlet

Telescopic – horizontal outlet
