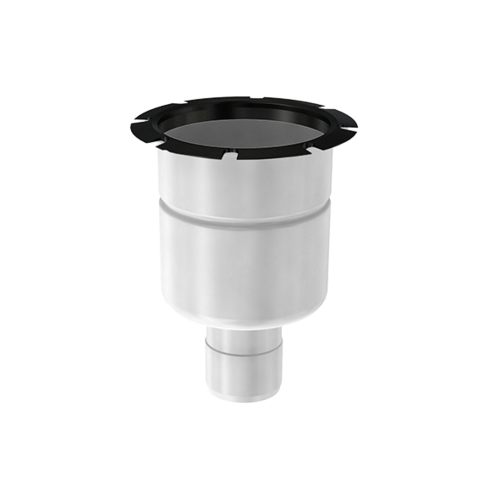

Telescopic Vertical Outlet 129057

Telescopic – vertical outlet

Product benefits

  • Fully inspectable and cleanable
  • Fully removable and easily cleanable stainless steel foul air trap (FAT)
  • Full drainability
  • Internal radii equal or larger than 3 mm
  • Fully welded hygienic joints
  • Steel thickness min. 1,5 mm
  • Fully pickled and passivated

Product information

  • Certified according to EN 1253-1
  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Suitable for all floor types including vinyl flooring
  • Location flange or integrated membrane flange for either adhesive bonding or mechanical clamp
  • Telescopic friction ring included
  • Certified fire protective solution available for classes EI 90 – EI 180 (EN 13 501-2)
Flange typeOutlet diameter ∅Min. flow rateMax. flow rateFoul air trapMaterialItem

number		Remember
[mm][l/s][l/s]
Location flange751.41.8Without1.4301414708
1.4404414808
Location flange751.41.8With1.4301414709
1.4404414809
Adhesive bonding flange751.41.8Without1.4301414710
1.4404414810
Adhesive bonding flange751.41.8With1.4301414711
1.4404414811
Mechanical clamping flange751.41.8Without1.4301414712
1.4404414812
Mechanical clamping flange751.41.8With1.4301414713
1.4404414813
Location flange1101.62.0Without1.4301414714
1.4404414814
Location flange1101.62.0With1.4301414715
1.4404414815
Adhesive bonding flange1101.62.0Without1.4301414716
1.4404414816
Adhesive bonding flange1101.62.0With1.4301414717
1.4404414817
Mechanical clamping flange1101.62.0Without1.4301414718
1.4404414818
Mechanical clamping flange1101.62.0With1.4301414719
1.4404414819
Flange designOutlet diameter ∅Odour trapMaterialItem

number
Location flange75 mmWithout1.4301414708
Location flange75 mmWithout1.4404414808
Location flange75 mmWith1.4301414709
Location flange75 mmWith1.4404414809
Adhesive bonding flange75 mmWithout1.4301414710
Adhesive bonding flange75 mmWithout1.4404414810
Adhesive bonding flange75 mmWith1.4301414711
Adhesive bonding flange75 mmWith1.4404414811
Mechanical clamping flange75 mmWithout1.4301414712
Mechanical clamping flange75 mmWithout1.4404414812
Mechanical clamping flange75 mmWith1.4301414713
Mechanical clamping flange75 mmWith1.4404414813
Location flange110 mmWithout1.4301414714
Location flange110 mmWithout1.4404414814
Location flange110 mmWith1.4301414715
Location flange110 mmWith1.4404414815
Adhesive bonding flange110 mmWithout1.4301414716
Adhesive bonding flange110 mmWithout1.4404414816
Adhesive bonding flange110 mmWith1.4301414717
Adhesive bonding flange110 mmWith1.4404414817
Mechanical clamping flange110 mmWithout1.4301414718
Mechanical clamping flange110 mmWithout1.4404414818
Mechanical clamping flange110 mmWith1.4301414719
Mechanical clamping flange110 mmWith1.4404414819
Gully tops for ACO hygienic gully 142 - telescopic

Gully tops for ACO hygienic gully 142 - telescopic

Raising pieces for ACO hygienic gully 142 - telescopic

Raising pieces for ACO hygienic gully 142 - telescopic

ACO weldless ladder grating

ACO weldless ladder grating

ACO frameless ladder grating

ACO frameless ladder grating

ACO hygienic ladder grating

ACO hygienic ladder grating

ACO hygienic slot cover

ACO hygienic slot cover

ACO perforated grating

ACO perforated grating

ACO mesh grating

ACO mesh grating

ACO quadrato grating

ACO quadrato grating

ACO heelsafe grating

ACO heelsafe grating

ACO multi-slot 5 grating

ACO multi-slot 5 grating

ACO odour proof gully cover

ACO odour proof gully cover

ACO tile grating

ACO tile grating

Silt basket

Suitable for
  • ACO gully 142 - Telescopic
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
    • Outlet øD [mm]: 125
    • Direction of gully outlet: vertical, horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,4 litre capacity
  • Material grade 1.4301 (304)
Item no.
416900

Silt basket

Suitable for
  • ACO gully 142 - Telescopic
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
    • Outlet øD [mm]: 125
    • Direction of gully outlet: vertical, horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,4 litre capacity
  • Material grade 1.4404 (316L)
Item no.
416901

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301
Item no.
450648

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301
Item no.
450649

ACO fire resitant kit for gully 142 / DN 75

Suitable for
  • ACO hygienic gully 142
    • Fixed height, vertical
    • Telescopic, vertical
Description
  • Fixed height, vertical
  • Telescopic,vertical
  • DN75 and DN 100
  • Made from 1.4404 (316) grade of stainless steel
  • NBR
Item no.
416930

ACO fire resitant kit for gully 142 / DN 100

Suitable for
  • ACO hygienic gully 142
    • Fixed height, vertical
    • Telescopic, vertical
Description
  • Fixed height, vertical
  • Telescopic,vertical
  • DN75 and DN 100
  • Made from 1.4404 (316) grade of stainless steel
  • NBR
Item no.
416931

Standard foul air trap

Suitable for
  • ACO hygienic gully 142
    • Fixed height
    • Telescopic
Description
  • Height: 50 mm
  • Material grade 1.4301 (304)
Item no.
414741

Standard foul air trap

Suitable for
  • ACO hygienic gully 142
    • Fixed height
    • Telescopic
Description
  • Height: 50 mm
  • Material grade 1.4404 (316L)
Item no.
414841

Friction ring

Suitable for
  • ACO hygienic gully 142
    • Telescopic
Description

SBR

Item no.
414742

Standard foul air trap support

Suitable for
  • ACO hygienic gully 142
    • Fixed height
    • Telescopic
Description

NBR

Item no.
414743
