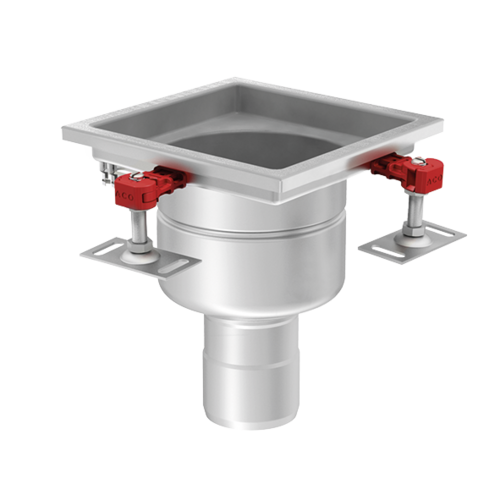

Fixed height – vertical outlet
Product benefits
- Fully inspectable and cleanable
- Fully removable and easily cleanable stainless steel foul air trap (FAT)
- Full drainability
- Internal radii equal or larger than 3 mm
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Edge infill
- ACO protective cover available
- Fully pickled and passivated
Product information
- Certified according to EN 1253-1
- Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Adjustable EasyFix leveling feet
- Wide range of gratings for various load classes including slip resistant solutions
- Certified fire protective solution available for classes EI 90 – EI 180 (EN 13 501-2)
- Silt basket available as accessory

Gully tops for ACO hygienic gully 142 - telescopic

Raising pieces for ACO hygienic gully 142 - telescopic

ACO weldless ladder grating

ACO frameless ladder grating

ACO hygienic ladder grating

ACO hygienic slot cover

ACO perforated grating

ACO mesh grating

ACO quadrato grating

ACO heelsafe grating

ACO multi-slot 5 grating

ACO odour proof gully cover

ACO tile grating
ACO mesh tundish 200
ACO mesh tundish 200
ACO quadrato tundish 200
ACO quadrato tundish 200
ACO tundish portable
ACO tundish portable
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4404 (316L)
ACO fire resitant kit for gully 142 / DN 75
ACO fire resitant kit for gully 142 / DN 100
Standard foul air trap
Standard foul air trap
