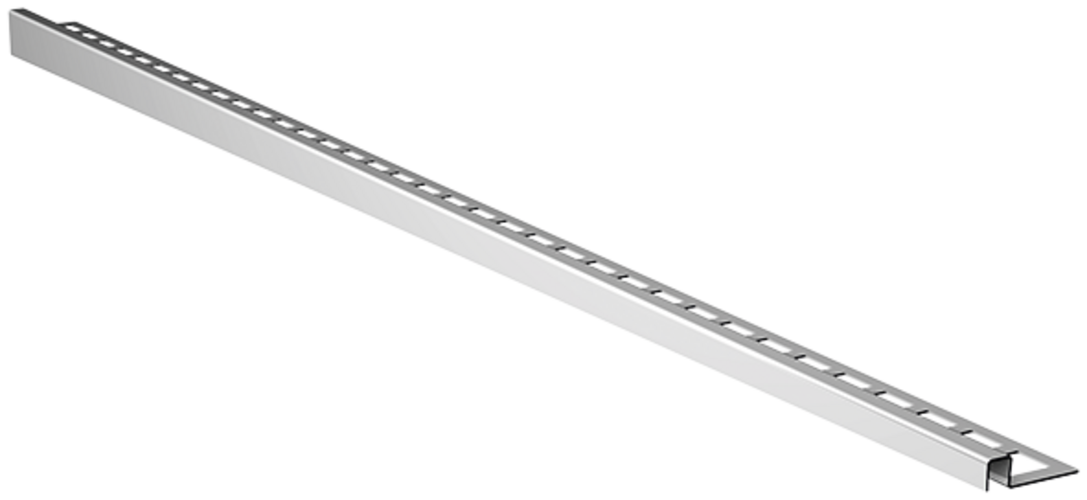

ACO ShowerStep – difference wedge

Material: Stainless steel, material grade 304
Upper surface: 12 mm, for use with or without glass shower wall
Mounting: Ready for installation
Length: 990 and 1490 mm, which can be shortened on site
Version: available in right hand and left hand version
Surface:
- Grinded: ideal complement for ACO ShowerDrain S+, B, C Standart and F

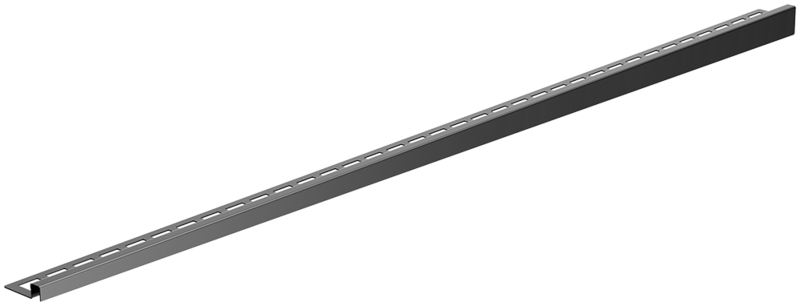

- Black massive: ideal complement for ACO ShowerDrain C Black
- Electro polished: ideal complement for ACO ShowerDrain E+

Version	Dimensions			Item number
Version	L1	H1	H2	Item number

left	1490 mm	10 mm	36 mm	9010.72.41
left	1490 mm	12.5 mm	36 mm	9010.72.42
left	1490 mm	15 mm	36 mm	9010.72.43
left	990 mm	10 mm	30 mm	9010.72.44
left	990 mm	12.5 mm	30 mm	9010.72.45
left	990 mm	15 mm	30 mm	9010.72.46
right	1490 mm	10 mm	36 mm	9010.72.47
right	1490 mm	12.5 mm	36 mm	9010.72.48
right	1490 mm	15 mm	36 mm	9010.72.49
right	990 mm	10 mm	30 mm	9010.72.50
right	990 mm	12.5 mm	30 mm	9010.72.51
right	990 mm	15 mm	30 mm	9010.72.52

left	1490 mm	10 mm	36 mm	9010.72.53
left	1490 mm	12.5 mm	36 mm	9010.72.54
left	1490 mm	15 mm	36 mm	9010.72.55
left	990 mm	10 mm	30 mm	9010.72.56
left	990 mm	12.5 mm	30 mm	9010.72.57
left	990 mm	15 mm	30 mm	9010.72.58
right	1490 mm	10 mm	36 mm	9010.72.59
right	1490 mm	12.5 mm	36 mm	9010.72.60
right	1490 mm	15 mm	36 mm	9010.72.61
right	990 mm	10 mm	30 mm	9010.72.62
right	990 mm	12.5 mm	30 mm	9010.72.63
right	990 mm	15 mm	30 mm	9010.72.64

Drainage body with foul air trap

Frame with design grating
