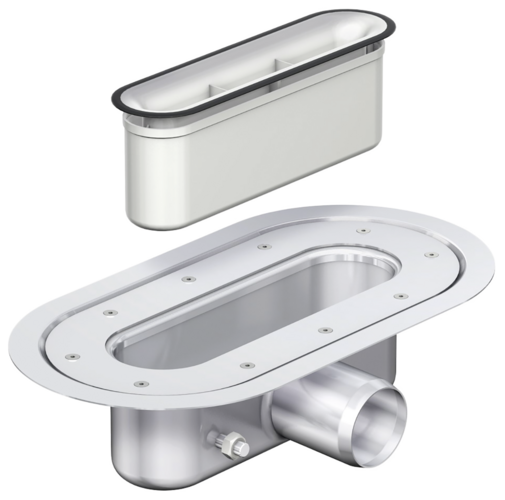

Drainage body with foul air trap


Product benefits

  • Minimum building height: 54 mm, unfinished floor level
  • Full access to pipeline for optimum cleaning
  • Welded stainless steel body, no risk of leakage
  • Unique profile of gratings reduces overshooting of water

Product information

  • Components:
    • Two part shower channel system (body and grating)
    • Gully body
  • Material: Stainless steel, material grade 304
  • Internal channel width: 80 mm
  • Flow rate:
    • 0.4 l/s (without build-up)
    • 0.8 l/s (with 20 mm build-up as per EN 1253-1)
  • Outlet socket: Suitable for all push-fit pipe socket systems
  • Socket version: ND 50
  • Foul air trap: 2-part, removable
  • Flange design: Permanently cast-on
  • Type of flange: gully body with clamping flange
  • Mounting: Ready for installation
  • Total installation height:
    • 59 mm (with water trap 30 mm)
    • 79 mm (with water trap 50 mm)
  • Installation: In room Channel body: Pickle passivated
  • Gratings: Grinded
  • Grating variants: Stainless steel designer gratings, tileable cover

L1BHeight (H)

Image312 mm407969
Image312 mm407970
