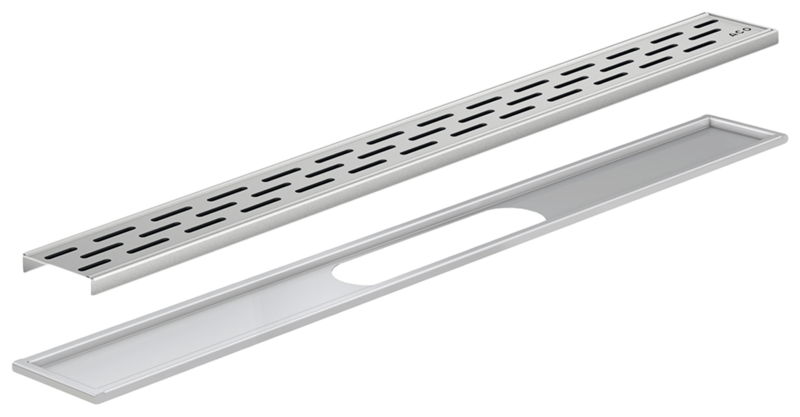

Frame with design grating


Product benefits

  • Low construction height very suitable for renovation
  • Removable two-parts foul-air trap
  • Full access to the outlet pipe

Product information

  • Two parts drainage channel DN 50 for shower area
    • Drainage body
    • Shower channel with design grating
  • From stainless steel, material grade 316
  • Tested according EN 1253 for load capacity and flow capacity
  • Flow rates
    • 0.95 l/s (with 20 mm water)
    • 0.75 l/s (against the wall)
    • 0.4 l/s (at entrance of shower)
  • Channel width: 100 mm
  • With outlet socket DN 50 for all push-fit socket systems
  • Socket inclination: 1,5°
DimensionsItem

number
DownloadsRemember
L1
[mm]
Wave
785407843
885407844
985407845
Square
Water
Slot
LengthItem

number
Design: Wave
Image685 mm407842
Image785 mm407843
Image885 mm407844
Image985 mm407845
Design: Square
Design: Water
Design: Slot
