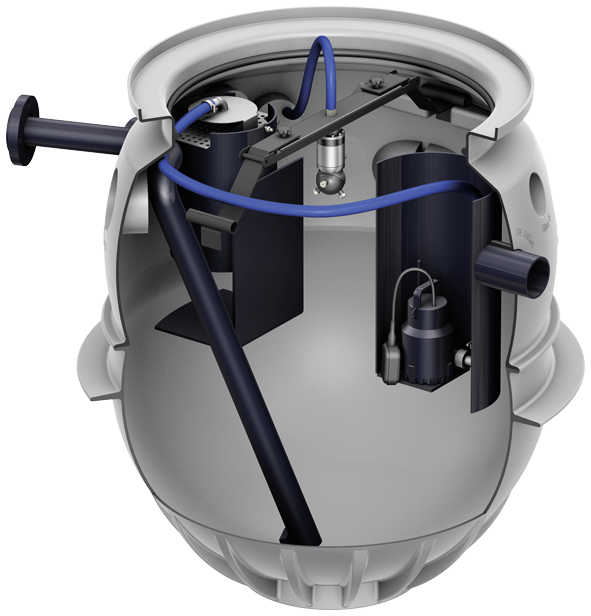

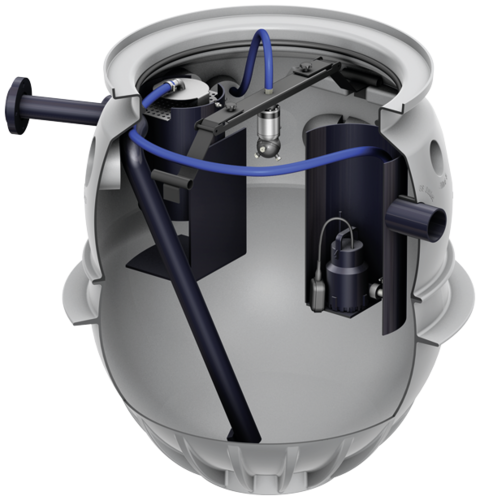

Starch separator FapuMax-P-DA extension stage 3
Product benefits
- Can sample from outflow
- Huge load capacity (load class: D 400 – equivalent to SLW 60) without any load-spreading during installation
- Low installation costs – separator, sludge trap, sampling using one container
- No additional goliath crane needed
- Buoyancy-proof for a groundwater level up to maximum 1 m above the base plate
- Ideal ease of cleaning thanks to round shape
Product information
- Starch separator system
- For installation below ground
- Disposal connection with Storz-B coupling 2½"
- Fill unit with solenoid valve (connection R ¾") for automatic refilling

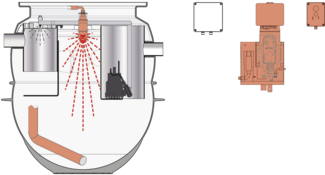

- Hydro-mechanical internal cleaning:
- 360° cleaning using 2 axes with stainless steel high-pressure spray head
- High pressure pump with reservoir for installation in the building with a cold water connection
- Tank cleaning nozzle in the container
- Nominal pressure 175 bar
- Volume flow 13 l/min
- Control for automatic disposal pump:
- Degree of protection IP 54
- 5 m cable and CEE plug 16 A
- Electrical connection:
- 400 V/50 Hz/16 A/3.9 kW
- Remote control for automatic disposal pump:
- Degree of protection IP 54
- Electrical connection via control
- Spray head to retain starch
- Circulation pump for operation of the spray head:
- No on-site fresh service water connection necessary
- 10 m cable, for connection to the switchbox
- Switchbox for control of the circulation pump via the peeling machine:
- Degree of protection IP 54
- 5 m cable and plug with earthing contact
- Electrical connection:
- 230 V/50 Hz/10 A/0.4 kW
- ACO Passavant system
- Matching top sections

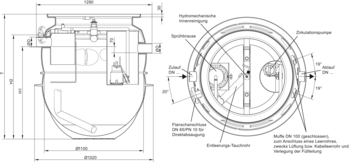

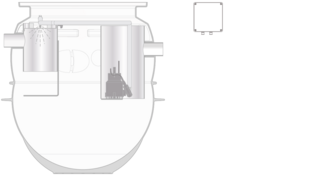

| Nominal size | Nominal width | Dimensions | |||
|---|---|---|---|---|---|
| H1 | H2 | D | D | ||
| [mm] | [mm] | [mm] | |||
| NS 1 | DN 100 | 1015 | 1155 | 110 | 2130 |
| NS 2 | DN 150 | 1745 | 1865 | 160 | 2830 |
| NS 3 | DN 150 | 2445 | 2565 | 160 | 1375 |
Connection box
Suitable for
- Grease separators
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection and remote control
- Made from stainless steel, material grade 304
- Fixing: "On wall"
- Dimensions (width x height x depth): 500 x 500 x 160 mm
- Weight: 11.6 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separator
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For disposal connection, pendulum gas line (if necessary) and remote control
- From stainless steel, material grade 304
- "Surface mounted” version
- Glass beaded front
- Lockable door, left limit stop
- Dimensions W x H x D: 300 x 725 x 160 mm
- Weight: 10 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.24
- LipuLift-P-D/-DA/-DAP
Description
- From stainless steel, material grade 304
- "In-wall” version
- Glass beaded front
- Dimension W x H x D:
- 405 x 830 x 30 mm
- Weight: 2.1 kg
- Rabattgruppe: 11
Storz coupling for swinging gas lines
Suitable for
- For installation in connection box art. no. 7601.80.22
Description
- Storz coupling 75B
- For connection of the disposal vehicle pendulum gas line
- For pipe connection Rp 2 ½" (female thread)
- Weight: 1.8 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.20
- LipuLift-P-D/-DA/-DAP
Description
- Dimensions (width x height x depth): 565 x 565 x 15 mm
- Weight: 1.2 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.22
- LipuLift-P-D/-DA/-DAP
Description
- Stainless steel, material grade 304
- Dimensions (width x height x depth): 421 x 381 x 25 mm
- Weight: 1 kg
- Rabattgruppe: 11

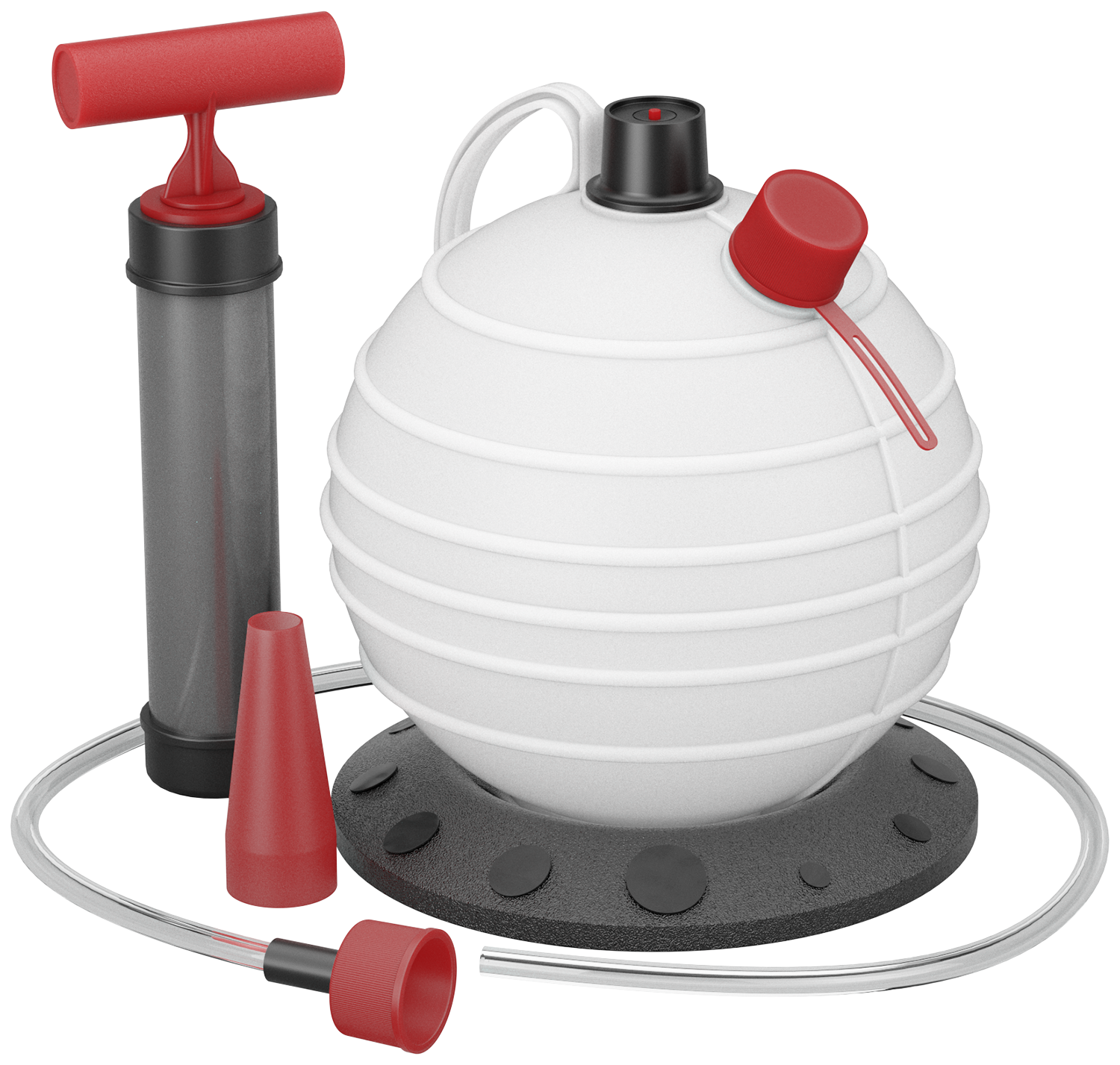

Sampling device
Suitable for
- Grease separator LipuMax-P for underground installation
- Light oil separator for underground installation
- Stach seperator FapuMax-P for underground installation
Description
- Consisting of:
- Sampling pot with suction coupling
- Connection hose with suction coupling and connection gland
- Hose length: 3 m
- Weight: 3.4 kg
- Rabattgruppe: 11
3300.30.00: Disposal shaft
Suitable for
- Grease separator for below ground installation
- LipuMax-P-D
- LipuMax-P-DM
- LipuMax-P-DA
- Starch separator FapuMax-P-DA for below ground installation
Description
- Made of plastic, material polyethylene
- With cover from concrete/cast-iron
- Clear width: 450 mm
- Load class: B 125 or D 400 (with on-site load distribution plate)
- Inscription "Abscheiderentleerung/Separator Discharge"
3300.30.01: Disposal shaft with load distribution slab
Suitable for
- Grease separator for below ground installation
- LipuMax-P-D
- LipuMax-P-DM
- LipuMax-P-DA
- Starch separator FapuMax-P-DA for below ground installation
Description
- Made of plastic, material polyethylene
- Buoyancy-proof up to the top of the terrain
- With cover from concrete/cast-iron
- Clear width: 450 mm
- Load class: D 400
- Inscription "Abscheiderentleerung/Separator Discharge"
Extension
Suitable for
- Disposal shaft
- Typ 450
Description
- Made from plastic, material polyethylene
- For fitting on upstream shaft for deep installations
- Structure height: 100 – 650 mm
- (can be reduced to 45 mm by cutting off at cutting marks)
- Max. two extension can be used
- Weight: 10.9 kg
- Rabattgruppe: 11
Support ring
Suitable for
- Grease separator LipuMax-P for underground installation
- Lipulift-P Serie
- Starch separator FapuMax-P for underground installation
Description
- Made from concrete
- Diameter: 625 mm
- Thickness: 60 mm
- Without seal
- Displacement-proof
- Height
- 60 mm excluding mortar joints
- 70 mm including mortar joints
- Weight: 50 kg
- Rabattgruppe: 11
Support ring
Suitable for
- Grease separator LipuMax-P for underground installation
- Lipulift-P Serie
- Starch separator FapuMax-P for underground installation
Description
- Made from concrete
- Diameter: 625 mm
- Thickness: 80 mm
- Without seal
- Displacement-proof
- Height
- 80 mm excluding mortar joints
- 90 mm including mortar joints
- Weight: 60 kg
- Rabattgruppe: 11
Support ring
Suitable for
- Grease separator LipuMax-P for underground installation
- Lipulift-P Serie
- Starch separator FapuMax-P for underground installation
Description
- Made from concrete
- Diameter: 625 mm
- Thickness: 100 mm
- Without seal
- Displacement-proof
- Height
- 100 mm excluding mortar joints
- 110 mm including mortar joints
- Weight: 70 kg
- Rabattgruppe: 11
Stepox
Description
- Weight: 5.9 kg
- Rabattgruppe: 11
Road cap
Suitable for
- Grease separator for underground installation
- LipuMax-P-D
- LipuMax-P-DM
- LipuMax-P-DA
- Stach separators FapuMax-P-DA for underground installation
- Oil separators Coalisator-P
Description
- Shaft cover tested to DIN EN 124/DIN 1229
- Load class: A 15
- Frame and cover made of cast iron
- Diameter: 300 mm
- Clear width: 250 mm
- Weight: 9.8 kg
- Rabattgruppe: 1
Washing hose 1 SN 10 – 150 DKO/DKO-L-90°
Suitable for
- Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
- Stach seperator FapuMax-P-DA for underground installation
- LipuLift-P-DA/-DAP
Description
- To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
- Length: 10 m
- Weight: 10 kg
- Rabattgruppe: 11
Washing hose 1 SN 10 – 150 DKO/DKO-L-90°
Suitable for
- Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
- Stach seperator FapuMax-P-DA for underground installation
- LipuLift-P-DA/-DAP
Description
- To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
- Length: 20 m
- Weight: 10.3 kg
- Rabattgruppe: 11
Washing hose 1 SN 10 – 150 DKO/DKO-L-90°
Suitable for
- Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
- Stach seperator FapuMax-P-DA for underground installation
- LipuLift-P-DA/-DAP
Description
- To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
- Length: 30 m
- Weight: 19 kg
- Rabattgruppe: 11
Sealing sleeves DN 100 NBR
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- As insulation between air connection on tank and air line.
- Weight: 0.1 kg
- Rabattgruppe: 11
