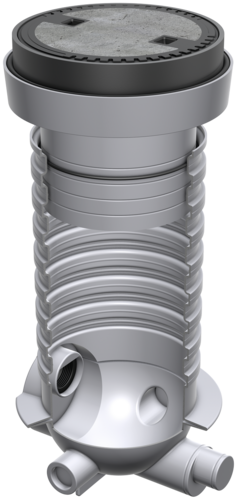

Sampling shafts set 450

Product information

From polyethylene
With BEGU cover
- Clear width: 450 mm
- Odour-tight
Load class:
- B 125 or D 400
Inlet depth T
- For B 125 (440 – 1120 mm)
- For D 400 (540 – 1420 mm)

	Description	Used with	Description	Version	Item number		Downloads	Remember
	Sampling shaft 450 DN 100	Grease separator LipuMax-P for underground installation NS 2 – 4 Starch separator FapuMax-P for underground installation NS 1	Load class: B 125 or D 400 with load distribution plate on site	slope jump: 159 mm; H = 258 mm	3300.13.10	11
	Sampling shaft 450 DN 100			slope jump: 58 mm; H = 138 mm	3300.13.11	11
	Sampling shaft 450 DN 150	Grease separator LipuMax-P / PH for underground installation NS 5.5 – 10 Starch separator FapuMax-P for underground installation NS 2 – 3	Load class: B 125 or D 400 with load distribution plate on site	slope jump: 159 mm; H = 239 mm	3300.13.20	11
	Sampling shaft 450 DN 150			slope jump: 75 mm; H = 155 mm	3300.13.21	11
	Sampling shaft 450 DN 100 with load distribution plate	Grease separator LipuMax-P for underground installation NS 2 – 4 Starch separator FapuMax-P for underground installation NS 1	Buoyancy-proof up to upper edge of site Inclusiv Load distribution plate, Load class D 400	slope jump: 159 mm; H = 258 mm	3300.13.15	11
	Sampling shaft 450 DN 100 with load distribution plate			slope jump: 58 mm; H = 138 mm	3300.13.16	11
	Sampling shaft 450 DN 150 with load distribution plate	Grease separator LipuMax-P / PH for underground installation NS 5.5 – 10 Starch separator FapuMax-P for underground installation NS 2 – 3	Buoyancy-proof up to upper edge of site Inclusiv Load distribution plate, Load class D 400	slope jump: 159 mm; H = 239 mm	3300.13.25	11
	Sampling shaft 450 DN 150 with load distribution plate			slope jump: 75 mm; H = 155 mm	3300.13.26	11

		Description	Used with	Description	Version	Item number
		Sampling shaft 450 DN 100	Grease separator LipuMax-P for underground installation NS 2 – 4 Starch separator FapuMax-P for underground installation NS 1	Load class: B 125 or D 400 with load distribution plate on site	slope jump: 159 mm; H = 258 mm	3300.13.10
		Sampling shaft 450 DN 100			slope jump: 58 mm; H = 138 mm	3300.13.11
		Sampling shaft 450 DN 150	Grease separator LipuMax-P / PH for underground installation NS 5.5 – 10 Starch separator FapuMax-P for underground installation NS 2 – 3	Load class: B 125 or D 400 with load distribution plate on site	slope jump: 159 mm; H = 239 mm	3300.13.20
		Sampling shaft 450 DN 150			slope jump: 75 mm; H = 155 mm	3300.13.21
		Sampling shaft 450 DN 100 with load distribution plate	Grease separator LipuMax-P for underground installation NS 2 – 4 Starch separator FapuMax-P for underground installation NS 1	Buoyancy-proof up to upper edge of site Inclusiv Load distribution plate, Load class D 400	slope jump: 159 mm; H = 258 mm	3300.13.15
		Sampling shaft 450 DN 100 with load distribution plate			slope jump: 58 mm; H = 138 mm	3300.13.16
		Sampling shaft 450 DN 150 with load distribution plate	Grease separator LipuMax-P / PH for underground installation NS 5.5 – 10 Starch separator FapuMax-P for underground installation NS 2 – 3	Buoyancy-proof up to upper edge of site Inclusiv Load distribution plate, Load class D 400	slope jump: 159 mm; H = 239 mm	3300.13.25
		Sampling shaft 450 DN 150 with load distribution plate			slope jump: 75 mm; H = 155 mm	3300.13.26

Extension 450

Suitable for

Sampling shaft

Description

Made from plastic, material polyethylene
For fitting on upstream shaft for deep installations
Structure height: 100 – 650 mm
- (can be reduced to 45 mm by cutting off at cutting marks)
Max. two extension can be used
Weight: 8.8 kg
Rabattgruppe: 11

Item no.
3300.13.00
