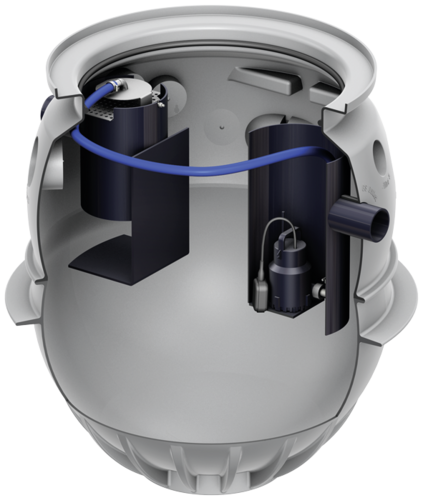

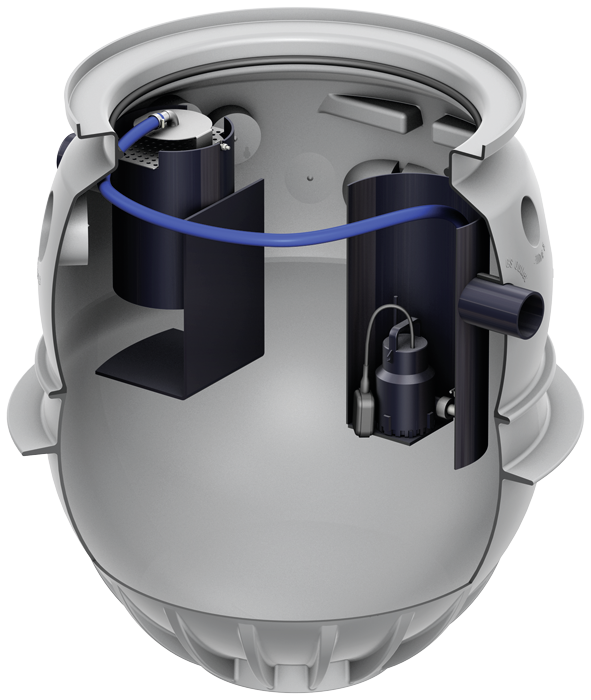

Starch separator FapuMax-P-B basic model
Product benefits
- Can sample from outflow
- Huge load capacity (load class: D 400 – equivalent to SLW 60) without any load-spreading during installation
- Low installation costs – separator, sludge trap, sampling using one container
- No additional goliath crane needed
- Buoyancy-proof for a groundwater level up to maximum 1 m above the base plate
- Ideal ease of cleaning thanks to round shape
Product information
- Starch separator plant
- For underground installation
- Made from polyethylene, material PE-HD
- Consisting of
- PE-body (double-walled wrapped tube) with integrated pre-chamber
- Built-in sampling pot in outflow pipe
- Cover plate made from reinforced concrete
- 1 set operating keys
- Circular shape with no separation between pre-chamber and separator (ideal for ease of cleaning)
- Inlet and outlet DN 100/DN 150
- Shaft manhole cover as per DIN EN 124
- No air vent
- Diameter: 625 mm
- Screwed shut odour-proof
- With 1" spray attachment to wash down starch (for industrial water connections)
- Buoyancy-proof for a groundwater level up to maximum 1 m above the base plate without any additional measures
Connection box
Suitable for
- Grease separators
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection and remote control
- Made from stainless steel, material grade 304
- Fixing: "On wall"
- Dimensions (width x height x depth): 500 x 500 x 160 mm
- Weight: 11.6 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separator
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For disposal connection, pendulum gas line (if necessary) and remote control
- From stainless steel, material grade 304
- "Surface mounted” version
- Glass beaded front
- Lockable door, left limit stop
- Dimensions W x H x D: 300 x 725 x 160 mm
- Weight: 10 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.24
- LipuLift-P-D/-DA/-DAP
Description
- From stainless steel, material grade 304
- "In-wall” version
- Glass beaded front
- Dimension W x H x D:
- 405 x 830 x 30 mm
- Weight: 2.1 kg
- Rabattgruppe: 11
Storz coupling for swinging gas lines
Suitable for
- For installation in connection box art. no. 7601.80.22
Description
- Storz coupling 75B
- For connection of the disposal vehicle pendulum gas line
- For pipe connection Rp 2 ½" (female thread)
- Weight: 1.8 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.20
- LipuLift-P-D/-DA/-DAP
Description
- Dimensions (width x height x depth): 565 x 565 x 15 mm
- Weight: 1.2 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.22
- LipuLift-P-D/-DA/-DAP
Description
- Stainless steel, material grade 304
- Dimensions (width x height x depth): 421 x 381 x 25 mm
- Weight: 1 kg
- Rabattgruppe: 11
Sampling device
Suitable for
- Grease separator LipuMax-P for underground installation
- Light oil separator for underground installation
- Stach seperator FapuMax-P for underground installation
Description
- Consisting of:
- Sampling pot with suction coupling
- Connection hose with suction coupling and connection gland
- Hose length: 3 m
- Weight: 3.4 kg
- Rabattgruppe: 11
Support ring
Suitable for
- Grease separator LipuMax-P for underground installation
- Lipulift-P Serie
- Starch separator FapuMax-P for underground installation
Description
- Made from concrete
- Diameter: 625 mm
- Thickness: 60 mm
- Without seal
- Displacement-proof
- Height
- 60 mm excluding mortar joints
- 70 mm including mortar joints
- Weight: 50 kg
- Rabattgruppe: 11
Support ring
Suitable for
- Grease separator LipuMax-P for underground installation
- Lipulift-P Serie
- Starch separator FapuMax-P for underground installation
Description
- Made from concrete
- Diameter: 625 mm
- Thickness: 80 mm
- Without seal
- Displacement-proof
- Height
- 80 mm excluding mortar joints
- 90 mm including mortar joints
- Weight: 60 kg
- Rabattgruppe: 11
Support ring
Suitable for
- Grease separator LipuMax-P for underground installation
- Lipulift-P Serie
- Starch separator FapuMax-P for underground installation
Description
- Made from concrete
- Diameter: 625 mm
- Thickness: 100 mm
- Without seal
- Displacement-proof
- Height
- 100 mm excluding mortar joints
- 110 mm including mortar joints
- Weight: 70 kg
- Rabattgruppe: 11
Stepox
Description
- Weight: 5.9 kg
- Rabattgruppe: 11
Road cap
Suitable for
- Grease separator for underground installation
- LipuMax-P-D
- LipuMax-P-DM
- LipuMax-P-DA
- Stach separators FapuMax-P-DA for underground installation
- Oil separators Coalisator-P
Description
- Shaft cover tested to DIN EN 124/DIN 1229
- Load class: A 15
- Frame and cover made of cast iron
- Diameter: 300 mm
- Clear width: 250 mm
- Weight: 9.8 kg
- Rabattgruppe: 1
Washing hose 1 SN 10 – 150 DKO/DKO-L-90°
Suitable for
- Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
- Stach seperator FapuMax-P-DA for underground installation
- LipuLift-P-DA/-DAP
Description
- To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
- Length: 10 m
- Weight: 10 kg
- Rabattgruppe: 11
Washing hose 1 SN 10 – 150 DKO/DKO-L-90°
Suitable for
- Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
- Stach seperator FapuMax-P-DA for underground installation
- LipuLift-P-DA/-DAP
Description
- To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
- Length: 20 m
- Weight: 10.3 kg
- Rabattgruppe: 11
Washing hose 1 SN 10 – 150 DKO/DKO-L-90°
Suitable for
- Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
- Stach seperator FapuMax-P-DA for underground installation
- LipuLift-P-DA/-DAP
Description
- To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
- Length: 30 m
- Weight: 19 kg
- Rabattgruppe: 11
Sealing sleeves DN 100 NBR
Suitable for
- Grease separator LipuMax-P for underground installation
Description
- As insulation between air connection on tank and air line.
- Weight: 0.1 kg
- Rabattgruppe: 11
