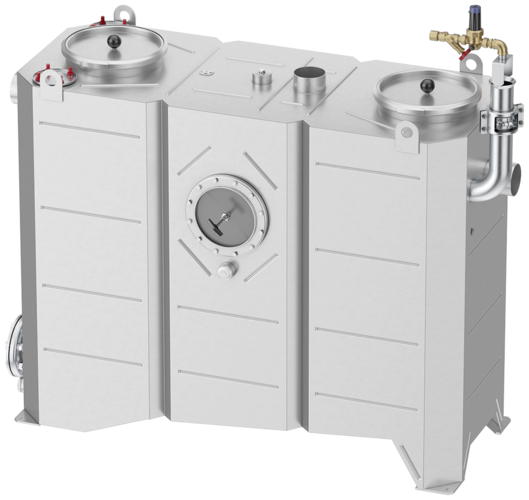

Grease separator LipuJet-S-OB basic model

Product benefits

  • Minimises disposal and maintenance costs thanks to economic step increases in nominal size
  • Small delivery dimensions
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Suction and emptying sump with drain plug socket 1½"
  • Odour-proof maintenance opening
    • Diameter: 300 mm for NS 1 – 4
    • Diameter: 500 mm for NS 5.5 – 10
Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 1DN 1001001003201304507551.34.00
NS 2DN 1002001004401355757552.34.00
NS 3DN 1003001506301557857553.34.00
NS 4DN 10040020083017510057554.34.00
NS 5.5DN 150550360143023016607555.34.00
NS 7DN 150700400160025518557557.34.00
NS 8.5DN 150850475190029521957558.34.00
NS 10DN 1501000520200031523157560.34.00
Nominal sizeNominal widthContentsWeightItem

number
Sludge trapGrease storeOverallEmptyFull
ImageNS 1DN 100100 l100 l320 l130 kg450 kg7551.34.00
ImageNS 2DN 100200 l100 l440 l135 kg575 kg7552.34.00
ImageNS 3DN 100300 l150 l630 l155 kg785 kg7553.34.00
ImageNS 4DN 100400 l200 l830 l175 kg1005 kg7554.34.00
ImageNS 5.5DN 150550 l360 l1430 l230 kg1660 kg7555.34.00
ImageNS 7DN 150700 l400 l1600 l255 kg1855 kg7557.34.00
ImageNS 8.5DN 150850 l475 l1900 l295 kg2195 kg7558.34.00
ImageNS 10DN 1501000 l520 l2000 l315 kg2315 kg7560.34.00

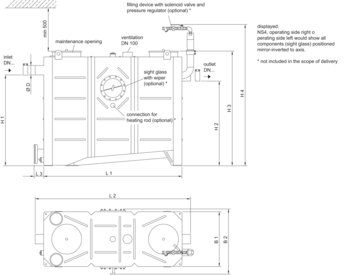

Scale drawing
Item

number
Nominal sizeDimensions
L1L2L3H1H2H3H4B1B2D
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
7551.34.00NS 1905110011583076012001550695760110
7552.34.00NS 29051100115105598513201700695760110
7553.34.00NS 312551450115105598513201700695760110
7554.34.00NS 416051800115105598513201700695760110
7555.34.00NS 5.51655192011512551185157019509401010160
7557.34.00NS 71855212011512551185157019509401010160
7558.34.00NS 8.52155242011512551185157019509401010160
7560.34.00NS 102345261011512551185157019509401010160

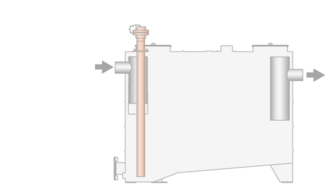

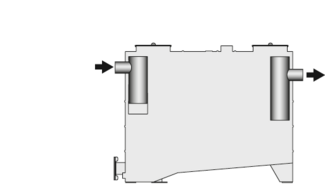

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

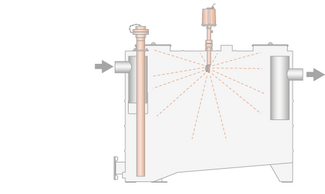

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning
LipuJet-S-OD

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • No odour build-up
LipuJet-S-OM (without disposal pump)

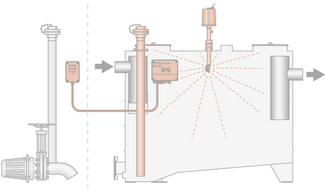

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up
LipuJet-S-OA (without disposal pump)
LipuJet-S-OAP (with disposal pump)

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

Smell neutralisation

Suitable for
  • Grease separators (incl. external makes)
Description
  • Lockable control cabinet
    • From stainless steel, material grade 304
    • Ground surface
    • With side ventilation slots
  • Integrated timer
  • Incl. odour neutralisers: 9 l
  • With dosing pump for reliable discharge
  • Chemical resistant dosing hose
  • Signal column for status monitoring
  • PG gland for on-site connection
  • Control cabinet dimensions: 380 x 600 x 210 mm (W x H x D)
  • System ready to plug in
    • Incl. cable: 1.5 m
  • 230 V socket to be produced on-site
  • Weight: 36.2 kg

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Filling device

Suitable for
  • Grease separator LipuJet-S-OB/OD/RB/RD
Description
  • Free outlet as per DIN 1988 Part 4
  • For connection to drinking water supply
  • With ball valve R ¾"
  • Weight: 2.3 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Viewing window

Suitable for
  • Grease separator LipuJet-S-OB/OD/RB/RD
Description
  • Nominal width: DN 200
  • With screen wiper
  • Weight: 2.3 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
  • Light oil separator Coalisator-R/-RD
    • NS 3
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 100 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 9.9 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
  • Light oil separator Coalisator-R/-RD
    • NS 6 – 10
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 150 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 12.2 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
  • Light oil separator Coalisator-E
    • NS 20
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 200 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 13.1 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
  • Light oil separator Coalisator-R/-RD
    • NS 3
Description
  • Stainless steel, material grade 316
  • Round shape
  • For installation in DN 100 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 9.5 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
  • Light oil separator Coalisator-R/-RD
    • NS 6 – 10
Description
  • Stainless steel, material grade 316
  • Round shape
  • For installation in DN 150 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11.3 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
  • Light oil separator Coalisator-E
    • NS 20
Description
  • Made from stainless steel, material grade 304
  • Round shape
  • For installation in DN 200 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11 kg

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 100 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 150 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 13.4 kg

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 200 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 14.3 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
