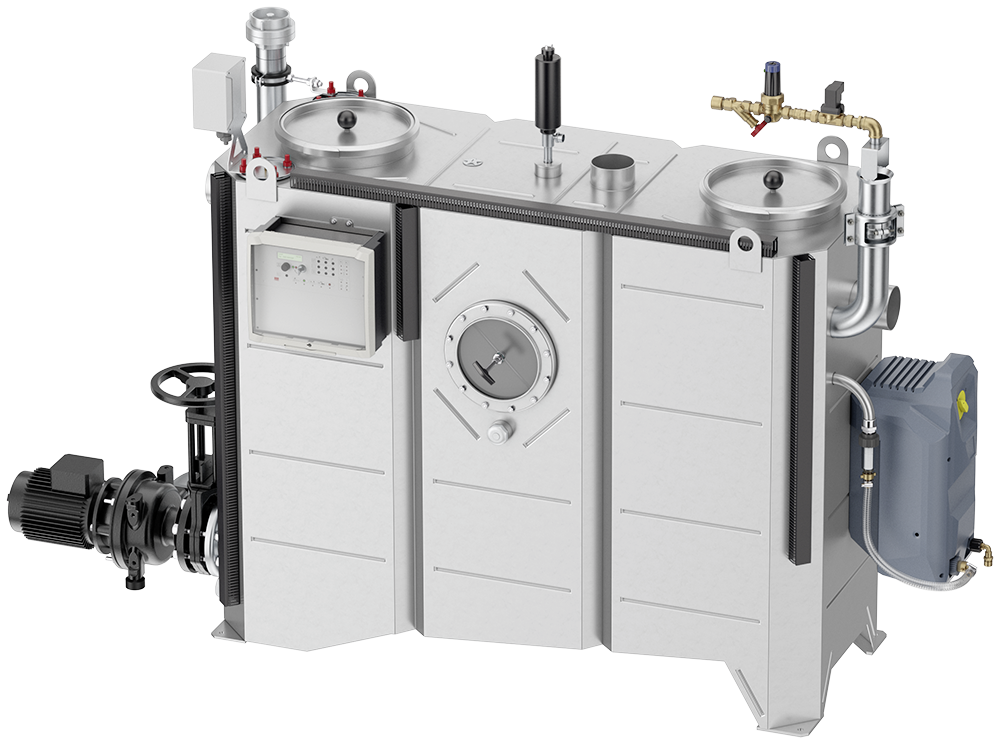

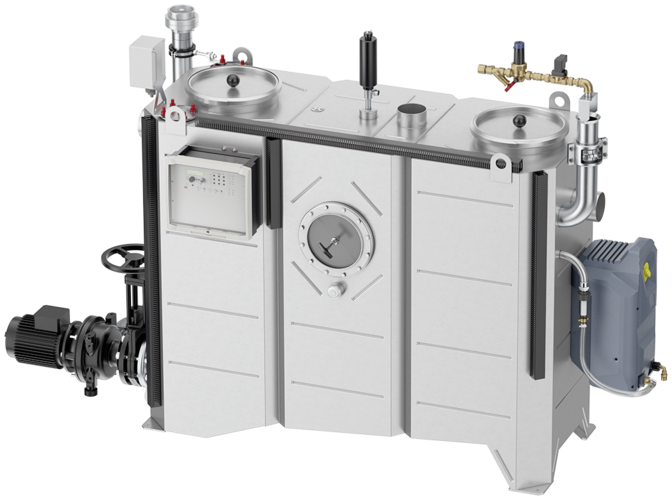

Grease separator LipuJet-S-OAP extension stage 3
Product benefits
- Odour-free emptying, cleaning and filling
- Pre- and post-cleaning times can be set individually
- Hydromechanical high-pressure cleaning – only a cold-water connection required
- Minimises disposal and maintenance costs thanks to economic step increases in nominal size
- Small delivery dimensions
- Low weight
Product information
- Grease separator plant as per DIN EN 1825 and DIN 4040-100
- For indoors installation – frost free
- With integrated sludge trap
- Operating side: right/left
- Draining connection, fire hose quick coupling B 2½"
- Suction and emptying sump with drain plug socket 1½"
- Inspection window with wiper
- Automatic high-pressure internal cleaning with pump
- Nominal pressure: 175 bar
- Capacity: 11,6 l/min
- Chopping, mixing, rinsing in one process
- Standard control with group fault reporting

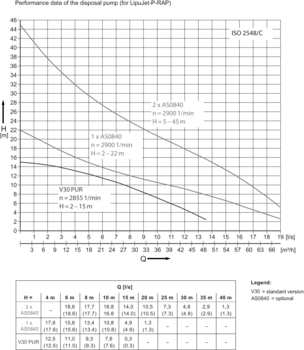

- Disposal pump with free flow impeller
- Motor power: 3.0 kW/2850 rpm
- Delivery performance: 20 m³/h at 1 bar medium delivery head
- Stop valve upstream of disposal pump
- Odour-proof maintenance opening
- Diameter: 300 mm for NS 1 – 4
- Diameter: 500 mm for NS 5.5 – 10
- Filling device with magnetic valve (connection ¾") for automatic refilling
- Electrical connector: 400 V/50 Hz/8,0 kW

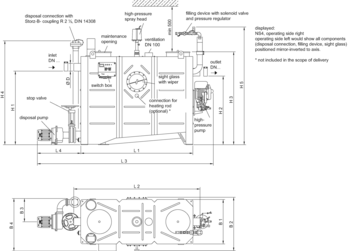

| Item number | Nominal size | Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | H1 | H2 | H3 | H4 | H5 | B1 | B2 | B3 | B4 | D | ||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| 7571.84.42 | NS 1 | 905 | 1100 | 1850 | 650 | 830 | 760 | 1200 | 1380 | 1550 | 695 | 760 | 370 | 800 | 110 |
| 7572.84.42 | NS 2 | 905 | 1100 | 1850 | 650 | 1055 | 985 | 1320 | 1500 | 1700 | 695 | 760 | 370 | 800 | 110 |
| 7573.84.42 | NS 3 | 1255 | 1450 | 2200 | 650 | 1055 | 985 | 1320 | 1500 | 1700 | 695 | 760 | 370 | 800 | 110 |
| 7574.84.42 | NS 4 | 1605 | 1800 | 2550 | 650 | 1055 | 985 | 1320 | 1500 | 1700 | 695 | 760 | 370 | 800 | 110 |
| 7575.84.42 | NS 5.5 | 1655 | 1920 | 2600 | 650 | 1255 | 1185 | 1570 | 1750 | 1950 | 940 | 1010 | 450 | 1000 | 160 |
| 7577.84.42 | NS 7 | 1855 | 2120 | 2800 | 650 | 1255 | 1185 | 1570 | 1750 | 1950 | 940 | 1010 | 450 | 1000 | 160 |
| 7578.84.42 | NS 8.5 | 2155 | 2420 | 3100 | 650 | 1255 | 1185 | 1570 | 1750 | 1950 | 940 | 1010 | 450 | 1000 | 160 |
| 7580.84.42 | NS 10 | 2345 | 2610 | 3300 | 650 | 1255 | 1185 | 1570 | 1750 | 1950 | 940 | 1010 | 450 | 1000 | 160 |
| 7571.84.32 | NS 1 | 905 | 1100 | 1850 | 650 | 830 | 760 | 1200 | 1380 | 1550 | 695 | 760 | 370 | 800 | 110 |
| 7572.84.32 | NS 2 | 905 | 1100 | 1850 | 650 | 1055 | 985 | 1320 | 1500 | 1700 | 695 | 760 | 370 | 800 | 110 |
| 7573.84.32 | NS 3 | 1255 | 1450 | 2200 | 650 | 1055 | 985 | 1320 | 1500 | 1700 | 695 | 760 | 370 | 800 | 110 |
| 7574.84.32 | NS 4 | 1605 | 1800 | 2550 | 650 | 1055 | 985 | 1320 | 1500 | 1700 | 695 | 760 | 370 | 800 | 110 |
| 7575.84.32 | NS 5.5 | 1655 | 1920 | 2600 | 650 | 1255 | 1185 | 1570 | 1750 | 1950 | 940 | 1010 | 450 | 1000 | 160 |
| 7577.84.32 | NS 7 | 1855 | 2120 | 2800 | 650 | 1255 | 1185 | 1570 | 1750 | 1950 | 940 | 1010 | 450 | 1000 | 160 |
| 7578.84.32 | NS 8.5 | 2155 | 2420 | 3100 | 650 | 1255 | 1185 | 1570 | 1750 | 1950 | 940 | 1010 | 450 | 1000 | 160 |
| 7580.84.32 | NS 10 | 2345 | 2610 | 3300 | 650 | 1255 | 1185 | 1570 | 1750 | 1950 | 940 | 1010 | 450 | 1000 | 160 |

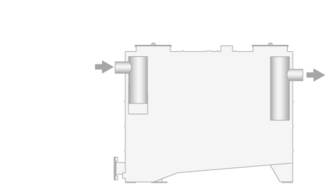

Features of base version:
- Emptying and cleaning via maintenance opening
- Odour build-up during emptying and cleaning

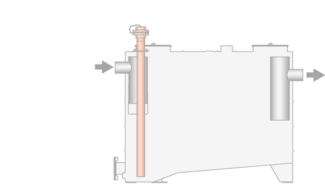

Features of upgrade level 1:
- Connection for direct suction
- Odour build-up only during cleaning

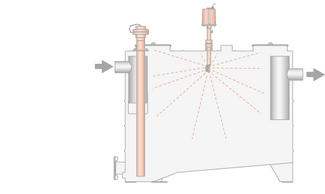

Features of upgrade level 2:
- Connection for direct suction
- High pressure cleaning operated manually
- No odour build-up

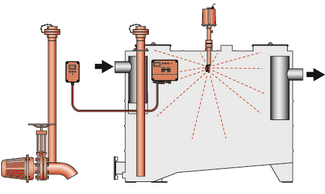

Features of upgrade level 3:
- Connection for direct suction
- Completely automatic programme
- Optionally with drainage pump and remote control
- No odour build-up
Grease layer thickness measuring device
Suitable for
- LipuJet-P
- Oval NS 1 – 10
- Round NS 2 – 22,5
- LipuJet-S
- Oval NS 1 – 10
- Round NS 2 – 20
- LipuSmart-P
- Oval NS 1 – 10
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
- With visual display of fill level
- With heated probe rod to increase reliability of operation
- Operating voltage: 230VAC/5 VA
- Max consumption approx. 12W
- Weight: 2.8 kg
- Rabattgruppe: 11
Remote control
Suitable for
- Grease separator
- LipuJet-P OA/OAP/RA/RAP
- LipuJet-S OA/OAP/RA/RAP
- LipuMax-P-DA
- LipuSmart-P-OA/OAP
- Starch separator FapuJet
Description
- For internal fitting or fitting in connection boxes
- Control line without protective conductor on-site
- Up to 50 m: 7 x 1.0 mm²
- 50 – 200 m 7 x 1.5 mm²
- Weight: 1 kg
- Rabattgruppe: 11
ACO Ozone Generator
Suitable for
- Grease separators, indoors
- Grease separators, outdoors
- Lifting stations
- Pumping stations
Description
- ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
- Material: acid-resistant stainless steel
Consists:
- ACO Ozone - ozone generator
- Size (L x W x H): 270 x 100 x 85 mm
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP20
- ACO Ozone pump - feed pump
- Size (L x W x H): 160 x 90 x 90 mm
- Integrated filter
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP54
- ACO Ozone bracket - wall bracket
- Size (L x W x H): 295 x 110 x 90 mm
- Hoses
- Rabattgruppe: 11
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Heating rod
Suitable for
- Grease separators
Description
- To liquefy grease layer
- Incl. control
- Electrical connector
- 400 V/50 Hz/6.0 kW
- Weight: 15 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separators
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection and remote control
- Made from stainless steel, material grade 304
- Fixing: "On wall"
- Dimensions (width x height x depth): 500 x 500 x 160 mm
- Weight: 11.6 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.20
- LipuLift-P-D/-DA/-DAP
Description
- Dimensions (width x height x depth): 565 x 565 x 15 mm
- Weight: 1.2 kg
- Rabattgruppe: 11
Storz coupling for swinging gas lines
Suitable for
- For installation in connection box art. no. 7601.80.22
Description
- Storz coupling 75B
- For connection of the disposal vehicle pendulum gas line
- For pipe connection Rp 2 ½" (female thread)
- Weight: 1.8 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.22
- LipuLift-P-D/-DA/-DAP
Description
- Stainless steel, material grade 304
- Dimensions (width x height x depth): 421 x 381 x 25 mm
- Weight: 1 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separator
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For disposal connection, pendulum gas line (if necessary) and remote control
- From stainless steel, material grade 304
- "Surface mounted” version
- Glass beaded front
- Lockable door, left limit stop
- Dimensions W x H x D: 300 x 725 x 160 mm
- Weight: 10 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.24
- LipuLift-P-D/-DA/-DAP
Description
- From stainless steel, material grade 304
- "In-wall” version
- Glass beaded front
- Dimension W x H x D:
- 405 x 830 x 30 mm
- Weight: 2.1 kg
- Rabattgruppe: 11
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
- Light oil separator Coalisator-R/-RD
- NS 3
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 100 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 9.9 kg
- Rabattgruppe: 11
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
- Light oil separator Coalisator-R/-RD
- NS 6 – 10
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 150 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 12.2 kg
- Rabattgruppe: 11
Sampling pot DN 200
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 15 – 20
- Light oil separator Coalisator-E
- NS 20
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 200 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 13.1 kg
- Rabattgruppe: 11
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
- Light oil separator Coalisator-R/-RD
- NS 3
Description
- Stainless steel, material grade 316
- Round shape
- For installation in DN 100 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 9.5 kg
- Rabattgruppe: 11
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
- Light oil separator Coalisator-R/-RD
- NS 6 – 10
Description
- Stainless steel, material grade 316
- Round shape
- For installation in DN 150 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 11.3 kg
- Rabattgruppe: 11
Sampling pot DN 200
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 15 – 20
- Light oil separator Coalisator-E
- NS 20
Description
- Made from stainless steel, material grade 304
- Round shape
- For installation in DN 200 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 11 kg
- Rabattgruppe: 11
Coarse trap DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 100 vertical pipes going to grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 11 kg
- Rabattgruppe: 11
Coarse trap DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 150 vertical pipes going to grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 13.4 kg
- Rabattgruppe: 11
Coarse trap DN 200
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 15 – 20
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 200 vertical pipes going to grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 14.3 kg
- Rabattgruppe: 11
Stop valve
Suitable for
- Grease separators for free-standing installation
- Starch separator for free-standing installation
Description
- Made of cast iron
- Penstock plate, spindle made from stainless steel, material grade 304
- DN 100
- Length (L): 50 mm
- Spindle travel (H1 – H2): 365 – 465 mm
- Manual wheel diameter: 200 mm
- Weight: 15 kg
- Rabattgruppe: 11
Stop valve
Suitable for
- Grease separators for free-standing installation
- Starch separator for free-standing installation
Description
- Made of cast iron
- Penstock plate, spindle made from stainless steel, material grade 304
- DN 150
- Length (L): 60 mm
- Spindle travel (H1 – H2): 478 – 639 mm
- Manual wheel diameter: 200 mm
- Weight: 29.4 kg
- Rabattgruppe: 11
Flange connection part
Description
- Stainless steel, material grade 304
- Seal: NBR
- DN 100
- Length (L): 75 mm
- Weight: 6.5 kg
- Rabattgruppe: 11
Flange connection part
Description
- Stainless steel, material grade 304
- Seal: NBR
- DN 150
- Length (L): 75 mm
- Weight: 10 kg
- Rabattgruppe: 11
Operating Logbook
Suitable for
- Grease separator
- For underground installation
- For free-standing installation
Description
- Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
- Format: A4 with double filing rings
- Size: 60 pages
- Laid out to cover 5 years
- Weight: 0.3 kg
- Rabattgruppe: 11
