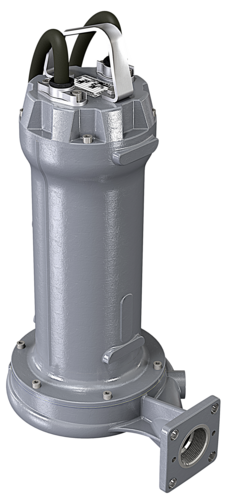

Submerged pump

Product information

  • Underwater pumps with
    • Channel impeller
    • Free flow impeller or Cutting mechanism
DescriptionUsed withDescriptionItem

number
Remember
ImageSITA 200eco N-ex-G
  • Powerlift-P
  • Powerlift pump kit DN 50
  • For faecal wastewater
  • Screws and nuts made of stainless steel
  • Cutting mechanism and cutting plate made of stainless steel 60 HRC
  • ATEX-Certification
  • Performance
    • P1 = 1,78 kW
    • P2 = 1,5 kW
  • Delivery head: H max. = 20.6 m
  • Delivery capacity: Q max. = 5.4 l/s
  • Voltage: 400 V, 50 Hz
  • Rev count: 2,900 rpm
  • Electric wire typ: 4G1,5+3x1 – 10 m
  • IP 68 protection
  • Operating mode: S1
301550712
SITA 200 N-ex-G
  • Powerlift-P
  • Powerlift pump kit DN 50
  • For faecal wastewater
  • Screws and nuts made of stainless steel
  • Cutting mechanism and cutting plate made of stainless steel 60 HRC
  • ATEX-Certification
  • Performance
    • P1 = 1,78 kW
    • P2 = 1,5 kW
  • Delivery head: H max. = 24.4 m
  • Delivery capacity: Q max. = 4.7 l/s
  • Voltage: 400 V, 50 Hz
  • Rev count: 2,900 rpm
  • Electric wire typ: 4G1,5+3x1 – 10 m
  • IP 68 protection
  • Operating mode: S1
0178.64.3012
Sita 300 N-ex-G
  • Powerlift-P
  • Powerlift installation kit DN 50
  • For faecal wastewater
  • Screws and nuts made of stainless steel
  • Cutting mechanism and cutting plate made of stainless steel 60 HRC
  • ATEX-Certification
  • Performance
    • P1 = 2,76 kW
    • P2 = 2,2 kW
  • Delivery head: H max. = 30,2 m
  • Delivery capacity: Q max. = 7,5 l/s
  • Voltage: 400 V, 50 Hz
  • Rev count: 2,900 rpm
  • Electric wire typ: 4G1,5+3x1 – 10 m
  • IP 68 protection
  • Operating mode: S1
0178.64.3212
Sita 550 N-ex-G
  • Powerlift-P
  • Powerlift pump kit DN 50
  • For faecal wastewater
  • With cutting mechanism and cutting plate (stainless steel 60 HRC)
  • With ATEX certification
  • Performance
    • P1 = 4,66 kW
    • P2 = 4,0 kW
  • Delivery head: H max. = 43,0 m
  • Delivery capacity: Q max. = 8,5 l/s
  • Voltage: 400V, 50 Hz
  • Speed: 2900 rpm
  • Connection discharge pipework: DN 50
  • Electric wire typ: 4G1,5+3x1 – 10 m
  • Operation mode: S1
0178.64.3312
ImageSAT 50/2/32/D
  • For non-faecal wastewater
  • For free-standing installation without coupling
  • Open multi-channel impeller
  • Performance
    • P1 = 0.94 kW
    • P2 = 0.37 kW
  • Delivery head: H max. = 8,5 m
  • Delivery capacity: Q max. = 4,5 l/s
  • Voltage: 400 V, 50 Hz
  • Speed: 2900 rpm
  • Connection discharge pipework: DN 50
  • Cable type: H07RN-F4G1 – 10 m
  • Operation mode: S3
0178.12.7612
SAT 50/2/32 WS
  • For non-faecal wastewater
  • For free-standing installation without coupling
  • Version with float switch
  • Open multi-channel impeller
  • Performance
    • P1 = 0.94 kW
    • P2 = 0.37 kW
  • Delivery head: H max. = 8,7 m
  • Delivery capacity: Q max. = 4,5 l/s
  • Voltage: 230 V, 50 Hz
  • Speed: 2900 rpm
  • Discharge line connection: R 1¼"
  • Cable type: H07RN-F4G1 – 10 m
  • Operation mode: S3
  • Supplied without attachment parts
0159.06.6312
SAT 75/2/32/D
  • Powerlift P
  • Powerlift Pumpenset DN 50
  • Für fäkalienfreies Abwasser
  • Open multi-channel impeller
  • Performance
    • P1 = 1.30 kW
    • P2 = 0.55 kW
  • Delivery head: H max. = 12,0 m
  • Delivery capacity: Q max. = 6,3 l/s
  • Voltage: 400 V, 50 Hz
  • Speed: 2900 rpm
  • Connection discharge pipework: DN 50
  • Cable type: H07RN-F4G1 – 10 m
  • Operation mode: S3
0178.12.7712
SAT 75/2/32 WS
  • For non-faecal wastewater
  • For free-standing installation without coupling
  • Version with float switch
  • Open multi-channel impeller
  • Performance
    • P1 = 1.30 kW
    • P2 = 0.55 kW
  • Delivery head: H max. = 12,1 m
  • Delivery capacity: Q max. = 6,0 l/s
  • Voltage: 230 V, 50 Hz
  • Speed: 2900 rpm
  • Discharge line connection: R 1¼"
  • Cable type: H07RN-F4G1 – 10 m
  • Operation mode: S3
  • Supplied without attachment parts
0159.06.6712
ImageSAT-V 75/2/50/D
  • Powerlift-P
  • Powerlift pump kit DN 50
  • For non-faecal wastewater
  • Housing made of GG
  • 3-phase current version
  • With free flow impeller
  • Performance
    • P1= 0,70 kW
    • P2= 0.55 kW
  • Delivery head: H max. = 8 m
  • Delivery capacity: Q max. = 6,7 l/s
  • Voltage: 400 V, 50 Hz
  • Rev count: 2,900 rpm
  • IP 68 protection
  • With motor protection
  • Granulation: 40 mm
0178.12.8312
SAT-V 150/2/50/D
  • Powerlift-P
  • Powerlift pump kit DN 50
  • For non-faecal wastewater
  • Housing made of GG
  • 3-phase current version
  • With free flow impeller
  • Performance
    • P1= 1.50 kW
    • P2= 1.10 kW
  • Delivery head: H max. = 14 m
  • Delivery capacity: Q max. = 10,9 l/s
  • Voltage: 400 V, 50 Hz
  • Rev count: 2,900 rpm
  • IP 68 protection
  • With motor protection
  • Granulation: 50 mm
0178.12.8412
ImageSat-100/D
  • Powerlift-P
  • Powerlift installation kit DN 50
  • For non-faecal wastewater
  • Housing made of GG
  • 3-phase current version
  • With open impeller
  • Performance
    • P1= 1.30 kW
    • P2= 0.89 kW
  • Delivery head: H max. = 12,5 m
  • Delivery capacity: Q max. = 10,0 l/s
  • Voltage: 400 V, 50 Hz
  • Rev count: 2,900 rpm
  • IP 68 protection
  • Granulation: 10/16 mm (with/out strainer)
0178.12.8012
Sat-150/D
  • Powerlift-P
  • Powerlift installation kit DN 50
  • For non-faecal wastewater
  • Housing made of GG
  • 3-phase current version
  • With open impeller
  • Performance
    • P1= 1.60 kW
    • P2= 1.10 kW
  • Delivery head: H max. = 16,0 m
  • Delivery capacity: Q max. = 12,0 l/s
  • Voltage: 400 V, 50 Hz
  • Rev count: 2,900 rpm
  • IP 68 protection
  • Granulation: 10/16 mm (with/out strainer)
0178.12.8112
Sat‑200/D
  • Powerlift-P
  • Powerlift installation kit DN 50
  • For non-faecal wastewater
  • Housing made of GG
  • 3-phase current version
  • With open impeller
  • Performance
    • P1= 2.00 kW
    • P2= 1.50 kW
  • Delivery head: H max. = 18,0 m
  • Delivery capacity: Q max. = 13,0 l/s
  • Voltage: 400 V, 50 Hz
  • Rev count: 2,900 rpm
  • IP 68 protection
  • Granulation: 12/16 mm (with/out strainer)
0178.12.8212
