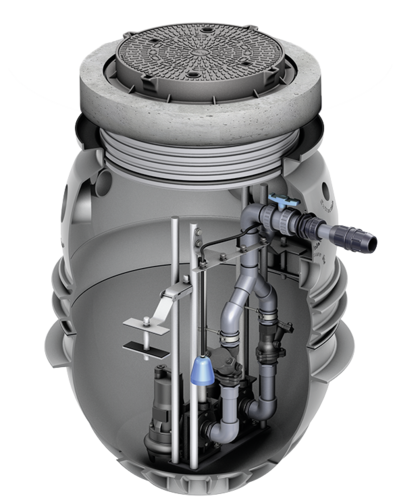

Pumping stations Powerlift-P duo – load class: B 125 with top section
Product benefits
- Selected material combinations for longer service life
- Vertically installed ball retaining valve for reliable closing
- Overall installation depth up to 3 m
- Large usable volume – for surface drainage
- Largely deposit free collection chamber with spherical bottom
- Car trafficable
Product information
- Area of use
- Downstream of separators
- Detached and multi-dwelling houses
- Surface drainage, e.g.:
- Ramps, inner courtyards, etc.
- Trade and industrial buildings
- Double pumping station for collecting and automatic lifting of faecal and non-faecal wastewater above the backflow level
- For installation below ground
- Housing made out of polyethylene

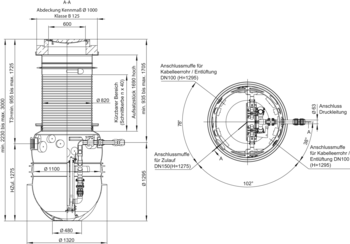

- Nominal diameter 1320 mm
- Clear width 1100 mm
- Cross beams made of stainless steel material grade 316Ti
- Automatic underwater coupling for retaining ACO submersible pumps with coupling element
- Piping made of PVC-U
- 1x ball valve G 2 made of PVC-U
- 2x ball retaining valve G 2 made of cast iron EN-GJL
- Flushing pipe connection option
- Pressure line connection (outside) with compression fitting DN 50 (adapter DN 70, DN 80 as accessory)
- DN 50 for pipe outside Ø 63 mm
- DN 70 for pipe outside Ø 75 mm
- Dimension from bottom of tank to middle of pressure pipe 1295 mm, positioned at 3 o'clock
- 1x connection socket DN 150 with sealing element for inlet pipe, connection according to DIN EN 877, One inlet DN150, Dimension from upper edge of the manhole cover to the centre of the inlet 955-1705mm
- 2x connection socket DN 100 with sealing element for cable conduit/ventilation, connection to EN 877, dimension from upper edge of the manhole cover to the centre of the socket 935-1705mm
- Use of different level sensors due to universal level switching bracket
- Control to control the level of liquids
- Adapter plate Ø 1000/625, H = 150 mm
- Shaft cover nominal size 600 - class B 125, according to DIN EN 124, odourproof bolted, H=125 mm
- Due to a height-adjustable top section (top section H = 1740 mm) it can be installed up to a total installation depth of 3.00 mm
- Installation depth T1 = min. 630 mm
- Buoyancy proof where groundwater levels are up to 0.5 m below the ground level
Switching device, ACO Multi Control Duo Advanced incl. Dynamic pressure bell
Suitable for
- Muli-Max
- Duo-plants
- Powerlift–P / Powerlift-P/F-H
- Muli-Flex
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- 20 m pneumatic control cable 8 x 6 mm
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Professional incl. Dynamic pressure bell
Suitable for
- Muli-Max
- Duo-plants
- Powerlift–P / Powerlift-P/F-H
- Muli-Flex
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- With Modbus RTU functionality for connection to the building management system
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- 20 m pneumatic control cable 8 x 6 mm
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Advanced without Dynamic pressure bell
Suitable for
- Muli-Max
- Duo
- Powerlift–P / Powerlift-P/F-H
- Muli-Flex
- Muli-Nova DDP
- Muli-Nova x.1 / x.2
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- Without control line
- Weight: 5.4 kg
- Rabattgruppe: 12
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Float switch
Suitable for
- For faecal and non-faecal wastewater
- MultiControl controls as float switches
- MultiControl controls as additional High alarm float
Description
- Housing: PRE-ELEC PP
- Degree of protection: IP68
- Switch voltage: 4-40 V
- Switch current: 1-100 mA
- Connection cable: 10m
- Switch inclination: 10°
- Protection class: II 1G Ex ia IIC T6 Ga
- Rabattgruppe: 12
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Air bubble injection
Suitable for
- Muli-Max
- Powerlift–P
- Muli-Flex
Description
- To increase operational safety (where floating surfaces are generated e.g. grease separator)
- For pneumatic level switching
- Mini compressor
- Connection: 230 V
- Plug and use
- With T-screw-in connection
- With backflow valve
- Weight: 0.6 kg
- Rabattgruppe: 12
Outdoor cabinet
Description
- Dimensions: 310 x 1460 x 207 mm (H x W x D)
- With pre-fuse C16 (16 A)
- With 10 mm² PE-terminals for voltage compensation
- Flashing light (knock resistant)
- Closed using safety lock cylinder
- Weight: 21 kg
- Rabattgruppe: 12
Outdoor cabinet
Description
- Dimensions: 310 x 1460 x 207 mm (H x W x D)
- With pre-fuse C16 (16 A)
- With 10 mm² PE-terminals for voltage compensation
- Flashing light (knock resistant)
- Closed using safety lock cylinder
- Weight: 21.1 kg
- Rabattgruppe: 12
Outdoor cabinet
Suitable for
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- LipuLift-P-B/P-D
Description
- As empty housing
- Dimensions: 310 x 230 x 1,400 mm (L x W x H)
- For installation for an on-site backflow loop in DN 50
- With heated cabinet and thermostat, 230 V, 50 Hz
- Integrated back-up fuse: 1-pole B16A
- With mounting plate and safety lock
- Weight: 13.8 kg
- Rabattgruppe: 12
Outdoor cabinet for local pressure pipes an controller
Suitable for
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- LipuLift-P-DA/P-DAP
Description
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- DN 50 – DN 150
- With mounting plate incl. base
- With lamp
- With CEE32 and work socket with earth contact
- Integrated back-up fuse: 3-pole B32A
- Integrated Fi 40 40/0.03A 4-pole
- With heating and thermostat
- With security lock
- Weight: 76 kg
- Rabattgruppe: 12
Outdoor cabinet for local pressure pipes an controller
Suitable for
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- LipuLift-P-B/P-D
Description
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- DN 50 – DN 150
- With mounting plate incl. base
- With lamp
- With CEE16 and work socket
- Integrated back-up fuse: 3-pole C20A
- Integrated Fi 40 40/0.03A 4-pole
- With heating and thermostat
- With security lock
- Weight: 76 kg
- Rabattgruppe: 12
Open air cupboard
Suitable for
- GRP outdoor cabinet for on-site pressure line
- DN 80
- DN 100
- DN 125
- DN 150
- LipuLift-P Serie
- Powerlift-P/F-H
Description
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- With mounting plate incl. base
- With heating and thermostat
- With CEE32 and work socket with earth contact
- Integrated back-up fuse: 3-pole B32A
- Integrated Fi 40 40/0.03A 4-pole
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- Weight: 100 kg
- Rabattgruppe: 12
Pressure pick-up
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- With cable for installation: 20 m
- Weight: 2 kg
- Rabattgruppe: 12
Pressure pick-up
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- Cable for installation: 40 m
- Weight: 3.4 kg
- Rabattgruppe: 12
Flushing connection
Suitable for
- Muli-Max
- Powerlift–P
- Muli-Flex
Description
- Total height: 430 mm
- Weight: 2 kg
- Rabattgruppe: 12
Safety barrier
Suitable for
- Pressure pick-off
- Float switch with ATEX-certificate
Description
- To separate Ex-risk and secure areas
- Incl. housing
- Weight: 0.5 kg
- Rabattgruppe: 12
Vacuum relief valve
Suitable for
- Muli-Max
- Powerlift–P
Description
- Only possible in combination with Flushing connection
- Weight: 1.5 kg
- Rabattgruppe: 12
Extension guide tube
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
Description
- For pressure line DN 50
- Length: 1 m
- Material: PVC-U
- For easy installation of pumps in deep shafts or if using a top section
- Incl. adapter, guide pipe and threaded rod
- Weight: 0.8 kg
- Rabattgruppe: 12
Compression fitting 63 x 63 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extension of the pressure line pipe Ø63 mm
- Weight: 0.6 kg
- Rabattgruppe: 12
Compression fitting 63 x 75 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extending the pressure line diameter from Ø63 mm to Ø75 mm
- Weight: 0.8 kg
- Rabattgruppe: 12
Compression fitting 63 x 90 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extending the pressure line diameter from Ø63 mm to Ø90 mm
- Weight: 0.7 kg
- Rabattgruppe: 12
