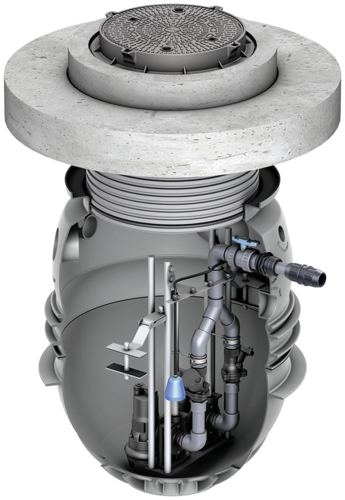

Pumping stations Powerlift-P duo – load class: D 400 with top section

Product benefits

  • Selected material combinations for longer service life
  • Vertically installed ball retaining valve for reliable closing
  • Overall installation depth up to 3 m
  • Large usable volume – for surface drainage
  • Largely deposit free collection chamber with spherical bottom
  • Truck trafficable

Product information

  • Area of use
    • Downstream of separators
    • Detached and multi-dwelling houses
    • Surface drainage, e.g.:
    • Ramps, inner courtyards, etc.
    • Trade and industrial buildings
  • Double pumping station for collecting and automatic lifting of faecal and non-faecal wastewater above the backflow level
  • For installation below ground
  • Housing made out of polyethylene
    • Nominal diameter 1320 mm
    • Clear width 1100 mm
  • Cross beams made of stainless steel material grade 316Ti
  • Automatic underwater coupling for retaining ACO submersible pumps with coupling element
  • Piping made of PVC-U
    • 1x ball valve G 2 made of PVC-U
    • 2x ball retaining valve G 2 made of cast iron EN-GJL
    • Flushing pipe connection option
  • Pressure line connection (outside) with compression fitting DN 50 (adapter DN 70, DN 80 as accessory)
    • DN 50 for pipe outside Ø 63 mm
    • DN 70 for pipe outside Ø 75 mm
    • Dimension from bottom of tank to middle of pressure pipe 1295 mm, positioned at 3 o'clock
  • 1x connection socket DN 150 with sealing element for inlet pipe, connection according to EN 877, dimension from upper edge of the manhole cover to the centre of the inlet 955-1705mm
  • 2x connection socket DN 100 with sealing element for cable conduit/ventilation, connection to EN 877, dimension from upper edge of the manhole cover to the centre of the socket 935-1705mm
  • Use of different level sensors due to universal level switching bracket
  • Control to control the level of liquids
  • Full top section
    • Top section H = 1600 mm
    • 2x sealing ring Ø 780 mm, 20 thick
    • 1x retaining ring Ø 810 mm, 30 thick
  • Load distribution plate Ø1,550/850, H = 200 mm
  • Adapter plate Ø 1000/625, H = 150 mm
  • Shaft cover nominal size 600 - class D 400, according to EN 124, odourproof bolted, H=125 mm
  • Due to a height-adjustable top section it can be installed up to a total installation depth of 3.00 mm
  • Installation depth T3 = min. 955 mm up to max. 1795 mm
  • Buoyancy-proof at groundwater levels up to the terrain surface
TypeDescriptionUsable volumeWeightItem

number
Remember
To
[l][kg]
Duo
  • Cross beams made of stainless steel 1.4571 (AISI 316Ti)
  • Pressure connection DN 50 for pipe outside Ø 63 mm
55011600178.13.1312
TypeDescriptionUsable volumeWeightItem

number
To
Duo
  • Cross beams made of stainless steel 1.4571 (AISI 316Ti)
  • Pressure connection DN 50 for pipe outside Ø 63 mm
550 l1160 kg0178.13.13

Switching device, ACO Multi Control Duo Advanced incl. Dynamic pressure bell

Suitable for
  • Muli-Max
    • Duo-plants
  • Powerlift–P / Powerlift-P/F-H
  • Muli-Flex
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 10 VA
  • Temperature range: -20 to +60 ° C
  • IP 54 protection
  • CEE 16 plug with phase-changing switch
    • Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
  • 20 m pneumatic control cable 8 x 6 mm
  • Weight: 5.4 kg
  • Rabattgruppe: 12

Switching device, ACO Multi Control Duo Professional incl. Dynamic pressure bell

Suitable for
  • Muli-Max
    • Duo-plants
  • Powerlift–P / Powerlift-P/F-H
  • Muli-Flex
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 10 VA
  • Temperature range: -20 to +60 ° C
  • IP 54 protection
  • With Modbus RTU functionality for connection to the building management system
  • CEE 16 plug with phase-changing switch
    • Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
  • 20 m pneumatic control cable 8 x 6 mm
  • Weight: 5.4 kg
  • Rabattgruppe: 12

Switching device, ACO Multi Control Duo Advanced without Dynamic pressure bell

Suitable for
  • Muli-Max
    • Duo
  • Powerlift–P / Powerlift-P/F-H
  • Muli-Flex
  • Muli-Nova DDP
    • Muli-Nova x.1 / x.2
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 10 VA
  • Temperature range: -20 to +60 ° C
  • IP 54 protection
  • CEE 16 plug with phase-changing switch
    • Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
  • Without control line
  • Weight: 5.4 kg
  • Rabattgruppe: 12

Flashing light

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V
  • Power consumption: 70 mA
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Flashing light

Description
  • Rabattgruppe: 12

Float switch

Suitable for
  • For faecal and non-faecal wastewater
  • MultiControl controls as float switches
  • MultiControl controls as additional High alarm float
Description
  • Housing: PRE-ELEC PP
  • Degree of protection: IP68
  • Switch voltage: 4-40 V
  • Switch current: 1-100 mA
  • Connection cable: 10m
  • Switch inclination: 10°
  • Protection class: II 1G Ex ia IIC T6 Ga
  • Rabattgruppe: 12

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg
  • Rabattgruppe: 12

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Signal horn

Suitable for
  • Signalling unit
  • Signalling unit with GSM module
Description
  • Operating voltage: 12V DC
  • Power consumption: 30 mA
  • 62 x 62 x 85 mm (LxWxD)
  • Degree of protection: IP66
  • Noise level: 95 dB(A)
  • Weight: 0.2 kg
  • Rabattgruppe: 12

Signal horn

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V AC
  • Power consumption: 30mA
  • Ø62x85 mm (L/B x T)
  • Protection: IP66
  • 95 dB(A)
  • Weight: 0.3 kg
  • Rabattgruppe: 12

Air bubble injection

Suitable for
  • Muli-Max
  • Powerlift–P
  • Muli-Flex
Description
  • To increase operational safety (where floating surfaces are generated e.g. grease separator)
  • For pneumatic level switching
  • Mini compressor
    • Connection: 230 V
    • Plug and use
  • With T-screw-in connection
  • With backflow valve
  • Weight: 0.6 kg
  • Rabattgruppe: 12

Outdoor cabinet

Description
  • Dimensions: 310 x 1460 x 207 mm (H x W x D)
  • With pre-fuse C16 (16 A)
  • With 10 mm² PE-terminals for voltage compensation
  • Flashing light (knock resistant)
  • Closed using safety lock cylinder
  • Weight: 21 kg
  • Rabattgruppe: 12

Outdoor cabinet

Description
  • Dimensions: 310 x 1460 x 207 mm (H x W x D)
  • With pre-fuse C16 (16 A)
  • With 10 mm² PE-terminals for voltage compensation
  • Flashing light (knock resistant)
  • Closed using safety lock cylinder
  • Weight: 21.1 kg
  • Rabattgruppe: 12

Outdoor cabinet

Suitable for
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • LipuLift-P-B/P-D
Description
  • As empty housing
  • Dimensions: 310 x 230 x 1,400 mm (L x W x H)
  • For installation for an on-site backflow loop in DN 50
  • With heated cabinet and thermostat, 230 V, 50 Hz
  • Integrated back-up fuse: 1-pole B16A
  • With mounting plate and safety lock
  • Weight: 13.8 kg
  • Rabattgruppe: 12

Outdoor cabinet for local pressure pipes an controller

Suitable for
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • LipuLift-P-DA/P-DAP
Description
  • Dimension: 2000 x 806 x 335 mm (H x W x D)
  • With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
  • DN 50 – DN 150
  • With mounting plate incl. base
  • With lamp
  • With CEE32 and work socket with earth contact
  • Integrated back-up fuse: 3-pole B32A
  • Integrated Fi 40 40/0.03A 4-pole
  • With heating and thermostat
  • With security lock
  • Weight: 76 kg
  • Rabattgruppe: 12

Outdoor cabinet for local pressure pipes an controller

Suitable for
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • LipuLift-P-B/P-D
Description
  • Dimension: 2000 x 806 x 335 mm (H x W x D)
  • With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
  • DN 50 – DN 150
  • With mounting plate incl. base
  • With lamp
  • With CEE16 and work socket
  • Integrated back-up fuse: 3-pole C20A
  • Integrated Fi 40 40/0.03A 4-pole
  • With heating and thermostat
  • With security lock
  • Weight: 76 kg
  • Rabattgruppe: 12

Open air cupboard

Suitable for
  • GRP outdoor cabinet for on-site pressure line
    • DN 80
    • DN 100
    • DN 125
    • DN 150
,
  • LipuLift-P Serie
  • Powerlift-P/F-H
Description
  • With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
  • With mounting plate incl. base
  • With heating and thermostat
  • With CEE32 and work socket with earth contact
  • Integrated back-up fuse: 3-pole B32A
  • Integrated Fi 40 40/0.03A 4-pole
  • Dimension: 2000 x 806 x 335 mm (H x W x D)
  • Weight: 100 kg
  • Rabattgruppe: 12

Pressure pick-up

Suitable for
  • Control ACO Multi-Control Mono/Duo
  • LipuLift-P/LipuLift-PF
  • Powerlift-P/F-H
  • Muli-Flex
Description
  • 4–20 mA
  • For secure switching cable lengths > 12 m
  • 0–200 mbar
  • With cable for installation: 20 m
  • Weight: 2 kg
  • Rabattgruppe: 12

Pressure pick-up

Suitable for
  • Control ACO Multi-Control Mono/Duo
  • LipuLift-P/LipuLift-PF
  • Powerlift-P/F-H
  • Muli-Flex
Description
  • 4–20 mA
  • For secure switching cable lengths > 12 m
  • 0–200 mbar
  • Cable for installation: 40 m
  • Weight: 3.4 kg
  • Rabattgruppe: 12

Flushing connection

Suitable for
  • Muli-Max
  • Powerlift–P
  • Muli-Flex
Description
  • Total height: 430 mm
  • Weight: 2 kg
  • Rabattgruppe: 12

Safety barrier

Suitable for
  • Pressure pick-off
  • Float switch with ATEX-certificate
Description
  • To separate Ex-risk and secure areas
  • Incl. housing
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Vacuum relief valve

Suitable for
  • Muli-Max
  • Powerlift–P
Description
  • Only possible in combination with Flushing connection
  • Weight: 1.5 kg
  • Rabattgruppe: 12

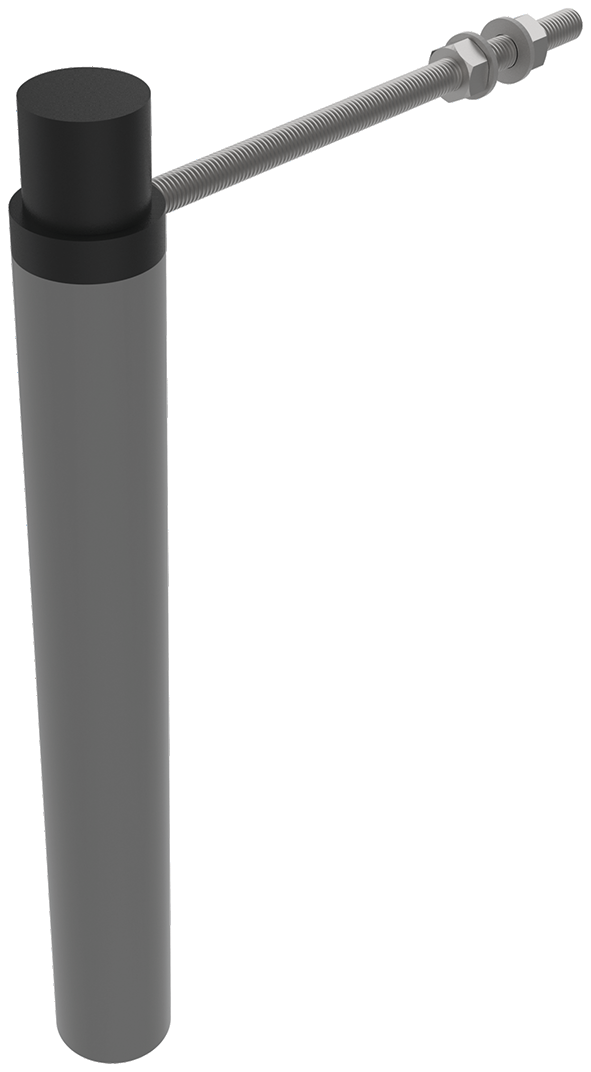

Extension guide tube

Suitable for
  • Powerlift installation kit DN 50
  • Powerlift–P
Description
  • For pressure line DN 50
  • Length: 1 m
  • Material: PVC-U
  • For easy installation of pumps in deep shafts or if using a top section
  • Incl. adapter, guide pipe and threaded rod
  • Weight: 0.8 kg
  • Rabattgruppe: 12

Compression fitting 63 x 63 mm

Suitable for
  • Powerlift installation kit DN 50
  • Powerlift–P
  • LipuLift-P
  • Muli-Max
Description
  • Material: PP
  • Pressure level: PN16
  • For extension of the pressure line pipe Ø63 mm
  • Weight: 0.6 kg
  • Rabattgruppe: 12

Compression fitting 63 x 75 mm

Suitable for
  • Powerlift installation kit DN 50
  • Powerlift–P
  • LipuLift-P
  • Muli-Max
Description
  • Material: PP
  • Pressure level: PN16
  • For extending the pressure line diameter from Ø63 mm to Ø75 mm
  • Weight: 0.8 kg
  • Rabattgruppe: 12

Compression fitting 63 x 90 mm

Suitable for
  • Powerlift installation kit DN 50
  • Powerlift–P
  • LipuLift-P
  • Muli-Max
Description
  • Material: PP
  • Pressure level: PN16
  • For extending the pressure line diameter from Ø63 mm to Ø90 mm
  • Weight: 0.7 kg
  • Rabattgruppe: 12
