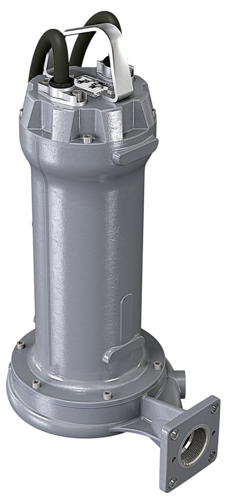

SITA 200eco N-ex-G Powerlift-P Powerlift pump kit DN 50 For faecal wastewater Screws and nuts made of stainless steel Cutting mechanism and cutting plate made of stainless steel 60 HRC ATEX-Certification Performance Delivery head: H max. = 20.6 m Delivery capacity: Q max. = 5.4 l/s Voltage: 400 V, 50 Hz Rev count: 2,900 rpm Electric wire typ: 4G1,5+3x1 – 10 m IP 68 protection Operating mode: S1 3015507 12 SITA 200 N-ex-G Powerlift-P Powerlift pump kit DN 50 For faecal wastewater Screws and nuts made of stainless steel Cutting mechanism and cutting plate made of stainless steel 60 HRC ATEX-Certification Performance Delivery head: H max. = 24.4 m Delivery capacity: Q max. = 4.7 l/s Voltage: 400 V, 50 Hz Rev count: 2,900 rpm Electric wire typ: 4G1,5+3x1 – 10 m IP 68 protection Operating mode: S1 0178.64.30 12 Sita 300 N-ex-G Powerlift-P Powerlift installation kit DN 50 For faecal wastewater Screws and nuts made of stainless steel Cutting mechanism and cutting plate made of stainless steel 60 HRC ATEX-Certification Performance Delivery head: H max. = 30,2 m Delivery capacity: Q max. = 7,5 l/s Voltage: 400 V, 50 Hz Rev count: 2,900 rpm Electric wire typ: 4G1,5+3x1 – 10 m IP 68 protection Operating mode: S1 0178.64.32 12 Sita 550 N-ex-G Powerlift-P Powerlift pump kit DN 50 For faecal wastewater With cutting mechanism and cutting plate (stainless steel 60 HRC) With ATEX certification Performance Delivery head: H max. = 43,0 m Delivery capacity: Q max. = 8,5 l/s Voltage: 400V, 50 Hz Speed: 2900 rpm Connection discharge pipework: DN 50 Electric wire typ: 4G1,5+3x1 – 10 m Operation mode: S1 0178.64.33 12 KL-AT-M 200/4/80-ex-G Powerlift-P/F-H Powerlift pump kit DN 100 For faecal wastewater Open single-channel impeller With ATEX certification Performance Delivery head: H max. = 8,7 m Delivery capacity: Q max. = 22,5 l/s Voltage: 400 V, 50 Hz Speed: 1450 rpm Connection discharge pipework: OD 90 mm Electric wire typ: 4G1,5+3x1 – 10 m Operation mode: S1 0178.64.34 12 KL-AT-M 300/4/80-ex-G Powerlift-P/F-H Powerlift pump kit DN 100 For faecal wastewater Open single-channel impeller With ATEX certification Performance Delivery head: H max. = 12,8 m Delivery capacity: Q max. = 31,0 l/s Voltage: 400 V, 50 Hz Speed: 1450 rpm Connection discharge pipework: OD 90 mm Electric wire typ: 4G1,5+3x1 – 10 m Operation mode: S1 0178.64.35 12 KL-AT-M 400/4/80-ex-G Powerlift-P/F-H Powerlift pump kit DN 100 For faecal wastewater Open single-channel impeller With ATEX certification Performance Delivery head: H max. = 14,6 m Delivery capacity: Q max. = 33,8 l/s Voltage: 400 V, 50 Hz Speed: 1450 rpm Connection discharge pipework: OD 90 mm Electric wire typ: 4G1,5+3x1 – 10 m Operation mode: S1 0178.64.36 12 SAT-Q 300/2/80/-G Powerlift-P/F-H Powerlift pump kit DN 100 For non-faecal wastewater Open multi-channel impeller Performance Delivery head: H max. = 18,4 m Delivery capacity: Q max. = 25,5 l/s Voltage: 400 V, 50 Hz Speed: 2900 rpm Connection discharge pipework: OD 90 mm Electric wire typ: 4G1,5+3x1 – 10 m Operation mode: S1 0178.64.40 12 SAT-Q 400/2/80/-G Powerlift-P/F-H Powerlift pump kit DN 100 For non-faecal wastewater Open multi-channel impeller Performance Delivery head: H max. = 24 m Delivery capacity: Q max. = 29 l/s Voltage: 400 V, 50 Hz Speed: 2900 rpm Connection discharge pipework: OD 90 mm Electric wire typ: 4G1,5+3x1 – 10 m Operation mode: S1 0178.64.41 12 SAT 50/2/32/D For non-faecal wastewater For free-standing installation without coupling Open multi-channel impeller Performance Delivery head: H max. = 8,5 m Delivery capacity: Q max. = 4,5 l/s Voltage: 400 V, 50 Hz Speed: 2900 rpm Connection discharge pipework: DN 50 Cable type: H07RN-F4G1 – 10 m Operation mode: S3 0178.12.76 12 SAT 50/2/32 WS For non-faecal wastewater For free-standing installation without coupling Version with float switch Open multi-channel impeller Performance Delivery head: H max. = 8,7 m Delivery capacity: Q max. = 4,5 l/s Voltage: 230 V, 50 Hz Speed: 2900 rpm Discharge line connection: R 1¼" Cable type: H07RN-F4G1 – 10 m Operation mode: S3 Supplied without attachment parts 0159.06.63 12 SAT 75/2/32/D Powerlift P Powerlift Pumpenset DN 50 Für fäkalienfreies Abwasser Open multi-channel impeller Performance Delivery head: H max. = 12,0 m Delivery capacity: Q max. = 6,3 l/s Voltage: 400 V, 50 Hz Speed: 2900 rpm Connection discharge pipework: DN 50 Cable type: H07RN-F4G1 – 10 m Operation mode: S3 0178.12.77 12 SAT 75/2/32 WS For non-faecal wastewater For free-standing installation without coupling Version with float switch Open multi-channel impeller Performance Delivery head: H max. = 12,1 m Delivery capacity: Q max. = 6,0 l/s Voltage: 230 V, 50 Hz Speed: 2900 rpm Discharge line connection: R 1¼" Cable type: H07RN-F4G1 – 10 m Operation mode: S3 Supplied without attachment parts 0159.06.67 12 SAT-V 75/2/50/D Powerlift-P Powerlift pump kit DN 50 For non-faecal wastewater Housing made of GG 3-phase current version With free flow impeller Performance Delivery head: H max. = 8 m Delivery capacity: Q max. = 6,7 l/s Voltage: 400 V, 50 Hz Rev count: 2,900 rpm IP 68 protection With motor protection Granulation: 40 mm 0178.12.83 12 SAT-V 150/2/50/D Powerlift-P Powerlift pump kit DN 50 For non-faecal wastewater Housing made of GG 3-phase current version With free flow impeller Performance Delivery head: H max. = 14 m Delivery capacity: Q max. = 10,9 l/s Voltage: 400 V, 50 Hz Rev count: 2,900 rpm IP 68 protection With motor protection Granulation: 50 mm 0178.12.84 12 Sat-100/D Powerlift-P Powerlift installation kit DN 50 For non-faecal wastewater Housing made of GG 3-phase current version With open impeller Performance Delivery head: H max. = 12,5 m Delivery capacity: Q max. = 10,0 l/s Voltage: 400 V, 50 Hz Rev count: 2,900 rpm IP 68 protection Granulation: 10/16 mm (with/out strainer) 0178.12.80 12 Sat-150/D Powerlift-P Powerlift installation kit DN 50 For non-faecal wastewater Housing made of GG 3-phase current version With open impeller Performance Delivery head: H max. = 16,0 m Delivery capacity: Q max. = 12,0 l/s Voltage: 400 V, 50 Hz Rev count: 2,900 rpm IP 68 protection Granulation: 10/16 mm (with/out strainer) 0178.12.81 12 Sat‑200/D Powerlift-P Powerlift installation kit DN 50 For non-faecal wastewater Housing made of GG 3-phase current version With open impeller Performance Delivery head: H max. = 18,0 m Delivery capacity: Q max. = 13,0 l/s Voltage: 400 V, 50 Hz Rev count: 2,900 rpm IP 68 protection Granulation: 12/16 mm (with/out strainer) 0178.12.82 12
