Pumping set Powerlift-P mono/duo
Product benefits
- Selected material combination for longer service life

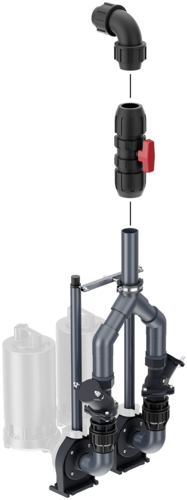

- Preassembled piping
- Overall height and features adjustable using the modular principle
- Underwater coupling system with sliding tube
Suitable for
- Grey and black water
- Use downstream of grease separators
Product information
- Field of application
- Downstream of separators
- Detached and multi-dwelling houses
- Surface water drainage, e.g. ramps, inner courtyards, etc.
- Trade and industry parks
- Automatic underwater coupling for retaining ACO submersible pumps with coupling element
- Easier hanging and pulling out of the pumps due to sliding tube system
- Use of different level sensors due to universal level switching bracket (see accessories)
- 4 m chain enclosed with the pump
- Pump set DN 50
- Pressure line and ball valve made of PVC-U
- Backflow valve made of cast iron
- Pressure line connection DN 50 (OD=63 mm) with compression fitting (DN 70 or DN 80 as accessory)
- Optional horizontal or vertical pressure outlet (included in the scope of supply)
- Minimum installation space: 800 x 800 mm Ø1000
- Pump set DN 100
- Backflow valve, Y-branch pipe, gate valve and transition elements made of cast iron
- Special adapter DN 100 for connection of the pressure line with 108 – 114.3 mm pipe outside diameter (optional 88 – 90 mm)
- Vertical pressure outlet

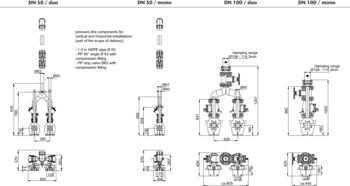

- Minimum installation space: angular - 1000x1000mm/ round - see PDF "Installation situations in the shaft" in the download area
Version: Pump set DN 50
Version: Pump set DN 100
Switching device, ACO Multi Control Mono Advanced
Suitable for
- Muli-Max
- Mono-plant
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- EEC 16-plug with phase inverter
- 20 m pneumatic control line 10 x 1.5 mm
- Dynamic pressure bell
- Cable duct
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 8 VA
- Temperature range: -20 to +60 °C
- IP 54 protection
- Weight: 4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Mono Professional
Suitable for
- Muli-Max
- Mono-plant
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- EEC 16-plug with phase inverter
- 20 m pneumatic control line 10 x 1.5 mm
- Dynamic pressure bell
- Cable duct
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 8 VA
- Temperature range: -20 to +60 °C
- IP 54 protection
- With Modbus RTU - functionality for connection to the building management system
- Weight: 4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Advanced incl. Dynamic pressure bell
Suitable for
- Muli-Max
- Duo-plants
- Powerlift–P / Powerlift-P/F-H
- Muli-Flex
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- 20 m pneumatic control cable 8 x 6 mm
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Professional incl. Dynamic pressure bell
Suitable for
- Muli-Max
- Duo-plants
- Powerlift–P / Powerlift-P/F-H
- Muli-Flex
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- With Modbus RTU functionality for connection to the building management system
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- 20 m pneumatic control cable 8 x 6 mm
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Advanced without Dynamic pressure bell
Suitable for
- Muli-Max
- Duo
- Powerlift–P / Powerlift-P/F-H
- Muli-Flex
- Muli-Nova DDP
- Muli-Nova x.1 / x.2
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- Without control line
- Weight: 5.4 kg
- Rabattgruppe: 12
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Float switch
Suitable for
- For faecal and non-faecal wastewater
- MultiControl controls as float switches
- MultiControl controls as additional High alarm float
Description
- Housing: PRE-ELEC PP
- Degree of protection: IP68
- Switch voltage: 4-40 V
- Switch current: 1-100 mA
- Connection cable: 10m
- Switch inclination: 10°
- Protection class: II 1G Ex ia IIC T6 Ga
- Rabattgruppe: 12
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Air bubble injection
Suitable for
- Muli-Max
- Powerlift–P
- Muli-Flex
Description
- To increase operational safety (where floating surfaces are generated e.g. grease separator)
- For pneumatic level switching
- Mini compressor
- Connection: 230 V
- Plug and use
- With T-screw-in connection
- With backflow valve
- Weight: 0.6 kg
- Rabattgruppe: 12
Outdoor cabinet
Description
- Dimensions: 310 x 1460 x 207 mm (H x W x D)
- With pre-fuse C16 (16 A)
- With 10 mm² PE-terminals for voltage compensation
- Flashing light (knock resistant)
- Closed using safety lock cylinder
- Weight: 21 kg
- Rabattgruppe: 12
Outdoor cabinet
Description
- Dimensions: 310 x 1460 x 207 mm (H x W x D)
- With pre-fuse C16 (16 A)
- With 10 mm² PE-terminals for voltage compensation
- Flashing light (knock resistant)
- Closed using safety lock cylinder
- Weight: 21.1 kg
- Rabattgruppe: 12
Outdoor cabinet
Suitable for
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- LipuLift-P-B/P-D
Description
- As empty housing
- Dimensions: 310 x 230 x 1,400 mm (L x W x H)
- For installation for an on-site backflow loop in DN 50
- With heated cabinet and thermostat, 230 V, 50 Hz
- Integrated back-up fuse: 1-pole B16A
- With mounting plate and safety lock
- Weight: 13.8 kg
- Rabattgruppe: 12
Outdoor cabinet for local pressure pipes an controller
Suitable for
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- LipuLift-P-DA/P-DAP
Description
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- DN 50 – DN 150
- With mounting plate incl. base
- With lamp
- With CEE32 and work socket with earth contact
- Integrated back-up fuse: 3-pole B32A
- Integrated Fi 40 40/0.03A 4-pole
- With heating and thermostat
- With security lock
- Weight: 76 kg
- Rabattgruppe: 12
Outdoor cabinet for local pressure pipes an controller
Suitable for
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- LipuLift-P-B/P-D
Description
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- DN 50 – DN 150
- With mounting plate incl. base
- With lamp
- With CEE16 and work socket
- Integrated back-up fuse: 3-pole C20A
- Integrated Fi 40 40/0.03A 4-pole
- With heating and thermostat
- With security lock
- Weight: 76 kg
- Rabattgruppe: 12
Open air cupboard
Suitable for
- GRP outdoor cabinet for on-site pressure line
- DN 80
- DN 100
- DN 125
- DN 150
- LipuLift-P Serie
- Powerlift-P/F-H
Description
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- With mounting plate incl. base
- With heating and thermostat
- With CEE32 and work socket with earth contact
- Integrated back-up fuse: 3-pole B32A
- Integrated Fi 40 40/0.03A 4-pole
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- Weight: 100 kg
- Rabattgruppe: 12
Pressure pick-up
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- With cable for installation: 20 m
- Weight: 2 kg
- Rabattgruppe: 12
Pressure pick-up
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- Cable for installation: 40 m
- Weight: 3.4 kg
- Rabattgruppe: 12
Safety barrier
Suitable for
- Pressure pick-off
- Float switch with ATEX-certificate
Description
- To separate Ex-risk and secure areas
- Incl. housing
- Weight: 0.5 kg
- Rabattgruppe: 12
Floater
Suitable for
- Signalling unit 0150.26 73
Description
- With 10 m cable
- For separate warning system/volt free fault reporting level
- Weight: 0.5 kg
- Rabattgruppe: 12
Extension guide tube
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
Description
- For pressure line DN 50
- Length: 1 m
- Material: PVC-U
- For easy installation of pumps in deep shafts or if using a top section
- Incl. adapter, guide pipe and threaded rod
- Weight: 0.8 kg
- Rabattgruppe: 12
Extension guide tube
Description
- For pressure line DN 100
- Length: 1 m
- Material: Stainless steel
- For easy installation of pumps in deep shafts
- Incl. adapter, guide pipe and threaded rod
- Weight: 5.4 kg
- Rabattgruppe: 12
Compression fitting 63 x 63 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extension of the pressure line pipe Ø63 mm
- Weight: 0.6 kg
- Rabattgruppe: 12
Compression fitting 63 x 75 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extending the pressure line diameter from Ø63 mm to Ø75 mm
- Weight: 0.8 kg
- Rabattgruppe: 12
Compression fitting 63 x 90 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extending the pressure line diameter from Ø63 mm to Ø90 mm
- Weight: 0.7 kg
- Rabattgruppe: 12
Assembly kit, level measurement retainer
Suitable for
- Powerlift installation kit
Description
- For retaining / fixing float switches, back pressure bell, or pressure transducer
- Incl. fixing material & glands
- Weight: 1.5 kg
- Rabattgruppe: 12
Sealing ring
Suitable for
- LipuSmart-P
- Powerlift installation kit DN 100
- Fäkablock II
- All Muli wastewater lifting plants
Description
- As additional component for pressure line DN 80
- Clamping range: 88 - 93 mm
- Weight: 0.3 kg
