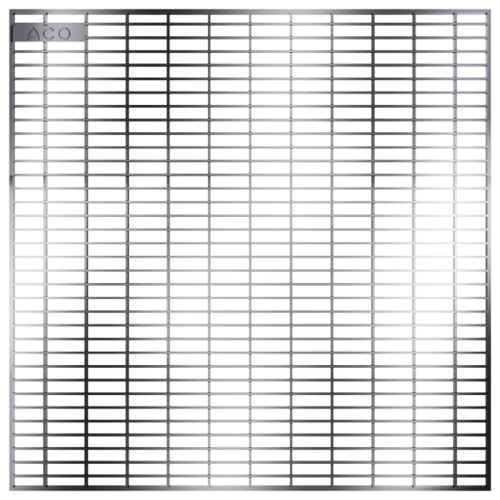

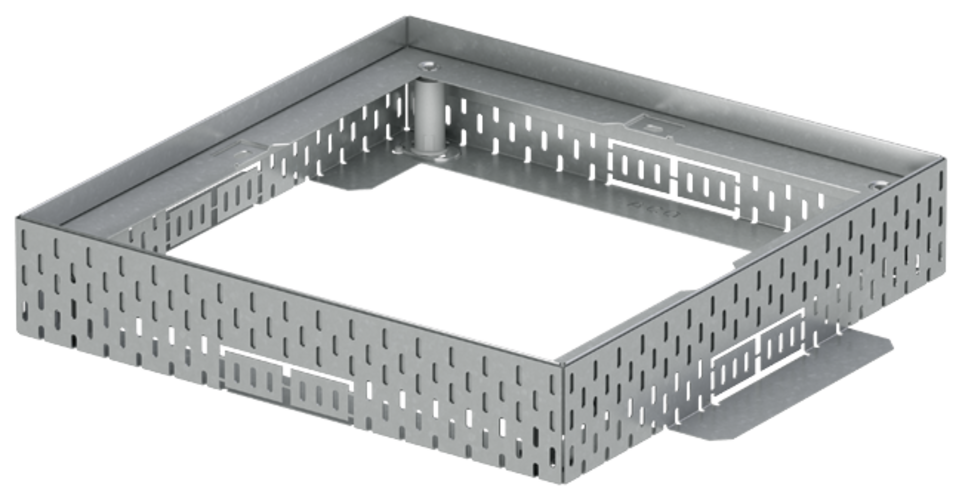

Top sections and gratings for roof gullys made of stainless steel

	Dimensions		Height adjustability	Item number		Downloads	Remember
	Length	Width	Height adjustability
	[mm]	[mm]	[mm]
	400	400	50	320019	13
			55 – 78	320020	13
			78 – 108	320021	13
	500	500	50	320022	13
			55 – 78	320023	13
			78 – 108	320024	13

	Dimensions		Height adjustability	Item number		Downloads	Remember
	Length	Width	Height adjustability
	[mm]	[mm]	[mm]
	400	400	30	320037	13
			60	320038	13
			120	320039	13
	500	500	30	320040	13
			60	320041	13
			120	320042	13

	Dimensions		Item number		Downloads	Remember
	Length	Width
	[mm]	[mm]
	390	390	38573	13
	490	490	38574	13

	Height- adjusta- bility H1min – H1max	Weight	Item number
	50 mm	1.5 kg	320019
	55 – 78 mm	2.5 kg	320020
	78 – 108 mm	3.0 kg	320021
	50 mm	1.7 kg	320022
	55 – 78 mm	4.0 kg	320023
	78 – 108 mm	4.0 kg	320024
	30 mm	0.8 kg	320037
	60 mm	1.9 kg	320038
	120 mm	3.0 kg	320039
	30 mm	1.6 kg	320040
	60 mm	2.3 kg	320041
	120 mm	2.5 kg	320042
		3.5 kg	38573
		6.2 kg	38574
