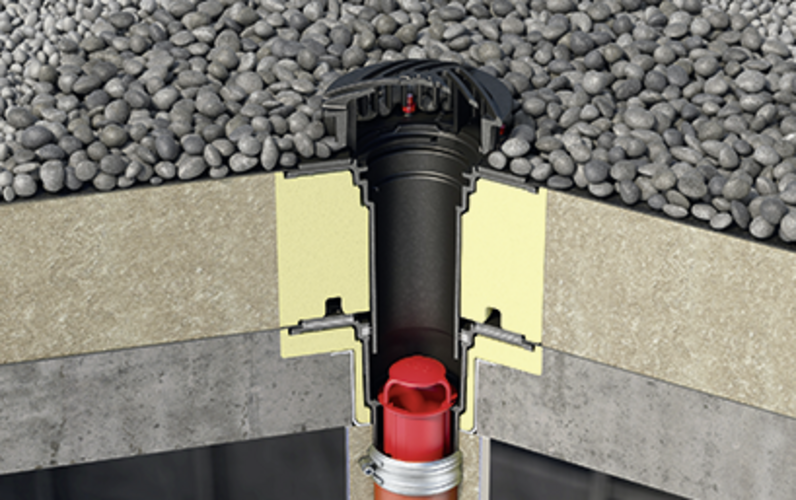

Gully body Passavant Spin, DN 70 – DN 100 | gravity drainage
Product benefits
- Guaranteed fire protection
- No additional fire load
- Fire protection classes: R 30 – R 120
- Permanent resistance
- Maintenance-friendly
- 100% UV resistant
- Flexibility in sealing
- PVC/PE/PP/Bitumen
- Variable installation
- On-site height adjustment by means of cast iron adjustment ring
- Can be utilised as emergency drainage
- Few components, compact design
Product information
- Made of cast iron
- Building material class A1, non-flammable
- With paint coat (transport protection)
- High pressure resistance > 700 N/mm²
- Tested in accordance with EN 1253-2
- With flat compression seal flange
- For recess necessary for thread slots
- With seepage openings

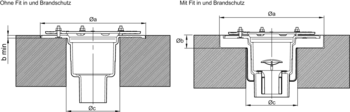

Nominal width | øa | øb | øc | Description | Item number |
---|---|---|---|---|---|
[mm] | [mm] | [mm] | |||
DN 70 | 330 | 10 | 160 | For gully bodies without insulation bodies | 7033.10.12 |
DN 70 | 330 | 40 | 160 | For gully bodies with insulation bodies | 7033.10.12 |
DN 100 | 330 | 10 | 160 | For gully bodies without insulation bodies | 7034.10.12 |
DN 100 | 330 | 40 | 160 | For gully bodies with insulation bodies | 7034.10.12 |


Upper part of gully body Passavant Spin

ACO Covecta cover plates

Top sections and gratings for roof gullies

Top sections and gratings for roof gullys

Top sections and gratings for roof gullys made of stainless steel
Flat roof heating
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg
- Rabattgruppe: 1
Flat roof heating with thermostat
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg
- Rabattgruppe: 1
Fire protection insert
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- Parking deck gullies Passavant made of cast iron
- DN 70
- Socket inclination: 90°
Description
- Note:
- The discharge value is reduced by use
- A Fit-in must be installed for core hole drilling
- aBG: Z-19.53-2439
- abZ: Z-19.17-2430
- Weight: 0.5 kg
- Rabattgruppe: 1
Fire protection insert
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- Parking deck gullies Passavant made of cast iron
- DN 100
- Socket inclination: 90°
Description
- Note:
- The discharge value is reduced by use
- A Fit-in must be installed for core hole drilling
- aBG: Z-19.53-2439
- abZ: Z-19.17-2430
- Weight: 0.5 kg
- Rabattgruppe: 1
Insulating body for gully
Fit-In
Insulating body for gully
Fit-In
Insulating body for gully
Insulating body for gully
Removable dirt trap
Adjustable height
Adjustable height
Gravel trap
Levelling height
Flange seal set
Flange seal set
Flange seal set
Lip seal ring
Suitable for
- Jet flat roof gullies
- DN 50
- Upper part for Spin flat roof gullies
- DN 70
- 1-/2-piece flat roof/terrace Spin gullies DN 70 for ventilation pipe to be added during installation
- SML-pipe DN 100 made from cast iron for grey water downpipes over roof, length as per DIN EN 12056 and DIN 1986‑100
Description
- Diameter: 136 mm
- Weight: 0.1 kg
- Rabattgruppe: 1
