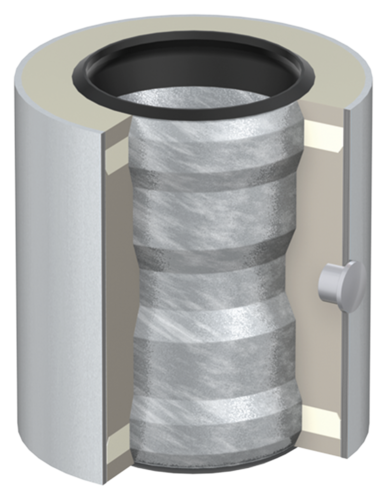

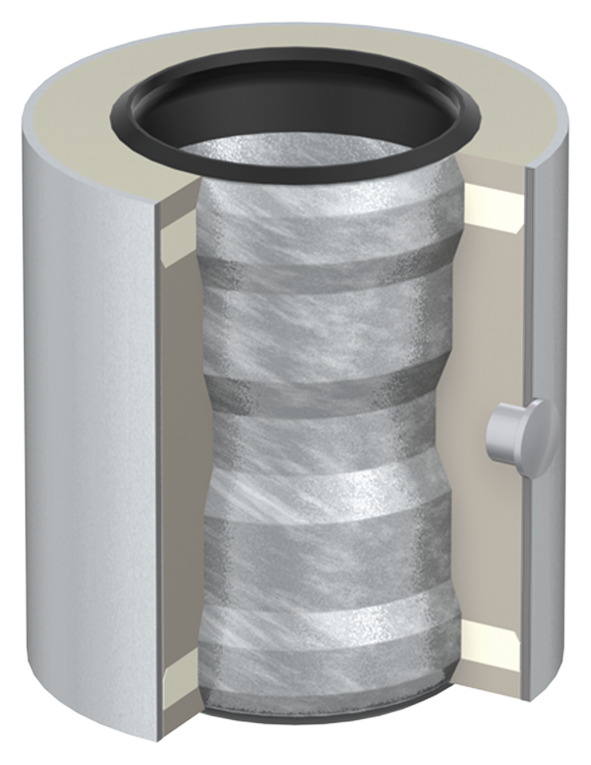

Straight coupling

Product information

  • Conforms to DIN EN 1123
  • Galvanised steel
  • With additional internal coating
  • Insulating layer (CFC-free PU rigid foam)
  • External pipe galvanised steel

Infobox

Note: Please order sealing items separately.

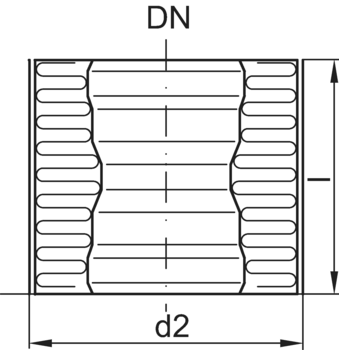

Nominal widthDimensionsWeightItem

number
Remember
DN1ld2
[mm][mm][kg]
ImageDN 4076890.8605020040
DN 5094890.9605020050
DN 701351021.4605020070
DN 801451341.7Z201675
DN 1001801342.0605020100
DN 1251901642.4605020125
DN 1502002043.0605020150
Nominal widthDimensionsWeightItem

number
DN1ld2
ImageDN 4076 mm89 mm0.8 kg605020040
ImageDN 5094 mm89 mm0.9 kg605020050
ImageDN 70135 mm102 mm1.4 kg605020070
ImageDN 80145 mm134 mm1.7 kgZ201675
ImageDN 100180 mm134 mm2.0 kg605020100
ImageDN 125190 mm164 mm2.4 kg605020125
ImageDN 150200 mm204 mm3.0 kg605020150
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipes0174.14.670174.14.680174.14.690174.14.700174.14.710174.14.730174.14.740174.14.75
For the transition to pipe 32 mm0174.14.830174.14.84
For the transition to pipe 38 mm and plastic siphon 40 mm0174.14.850174.14.86
For the transition to pipe 48 mm and plastic siphon 50 mm0174.14.87
For the transition of the KA sleeve DN 100 to GM-X pipe DN 1000174.14.80
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 800174.14.82
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm0174.14.72
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm0174.14.81
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipesE80010040 E80010050E80010070 E80010080E80010100 E80010125E80010150 E80010200
For the transition to pipe 32 mmE80100040 E80100050
For the transition to pipe 38 mm and plastic siphon 40 mmE80110040 E80110050
For the transition to pipe 48 mm and plastic siphon 50 mm E80130050
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 E80040100
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80E80060080
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm E80010110
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mmE80055125

Coupling socket dimensions

Nominal widthd1d2m1m12s1s2
DNmmmmmmmmmmmm
40428930251,51,8
50538938301,51,8
707310255451,62,0
808913460501,82,0
10010213470602,02,0
12513316475652,52,0
15015920480702,52,0
2002192731201103,22,0

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 150
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.5 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.8 kg
  • Rabattgruppe: 8

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 40
  • D = 100 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 50
  • D = 130 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 70
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 80
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 100
  • D = 180 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 125
  • D = 220 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 150
  • D = 225 mm

GM-X lubricant

Suitable for
  • GM-X drainpipes
  • GM-X compound piping
Description
  • In can
  • Contents: 1,000 g
  • To be used as per laying instructions 0154.49.79
  • Weight: 1.1 kg
  • Rabattgruppe: 8
