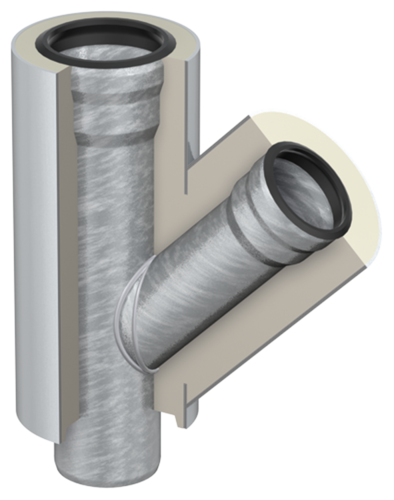

Product information

  • Conforms to DIN EN 1123
  • Galvanised steel
  • With additional internal coating
  • Insulating layer (CFC-free PU rigid foam)
  • External pipe galvanised steel

Infobox

Note: Please order sealing items separately.

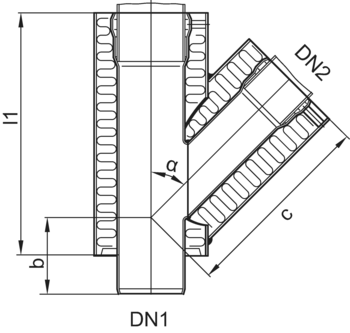

Nominal widthDimensionsWeightItem

number		Remember
DN1DN2l1bc
[mm][mm][mm][kg]
ImageDN 40DN 32145551451.60174.88.17
DN 50DN 32160601451.70174.88.18
DN 40190601531.80174.51.20
DN 70DN 40195751691.90174.51.21
DN 50185751442.00174.51.22
DN 80DN 50195721823.20174.51.23
DN 70225871823.70174.51.24
DN 100DN 40210901903.20174.51.26
DN 50225861823.70174.51.27
DN 70240901914.50174.51.29
DN 802751102075.40174.51.31
DN 125DN 50300652256.10174.51.30
DN 702709019010.00174.51.25
DN 1003001052467.00174.51.33
DN 150DN 70335802328.00174.51.28
DN 100300952668.50174.51.34
DN 12535012030511.00174.51.35
DN 200DN 704458527613.70174.51.32
DN 10043510040315.60174.51.36
DN 12539013034918.20174.75.03
DN 15043015036419.50174.51.37
ImageDN 70DN 50160100991.80174.51.38
DN 100DN 702101251353.50174.51.39
DN 125DN 1002651551756.00174.51.40
DN 150DN 1002651551897.00174.51.41
DN 1253001752099.00174.51.42
DN 200DN 10030519522013.50174.51.43
DN 15036522524617.00174.51.44
Nominal widthDimensionsWeightItem

number
DN1DN2l1bc
ImageDN 40DN 32145 mm55 mm145 mm1.6 kg0174.88.17
ImageDN 50DN 32160 mm60 mm145 mm1.7 kg0174.88.18
ImageDN 50DN 40190 mm60 mm153 mm1.8 kg0174.51.20
ImageDN 70DN 40195 mm75 mm169 mm1.9 kg0174.51.21
ImageDN 70DN 50185 mm75 mm144 mm2.0 kg0174.51.22
ImageDN 80DN 50195 mm72 mm182 mm3.2 kg0174.51.23
ImageDN 80DN 70225 mm87 mm182 mm3.7 kg0174.51.24
ImageDN 100DN 40210 mm90 mm190 mm3.2 kg0174.51.26
ImageDN 100DN 50225 mm86 mm182 mm3.7 kg0174.51.27
ImageDN 100DN 70240 mm90 mm191 mm4.5 kg0174.51.29
ImageDN 100DN 80275 mm110 mm207 mm5.4 kg0174.51.31
ImageDN 125DN 50300 mm65 mm225 mm6.1 kg0174.51.30
ImageDN 125DN 70270 mm90 mm190 mm10.0 kg0174.51.25
ImageDN 125DN 100300 mm105 mm246 mm7.0 kg0174.51.33
ImageDN 150DN 70335 mm80 mm232 mm8.0 kg0174.51.28
ImageDN 150DN 100300 mm95 mm266 mm8.5 kg0174.51.34
ImageDN 150DN 125350 mm120 mm305 mm11.0 kg0174.51.35
ImageDN 200DN 70445 mm85 mm276 mm13.7 kg0174.51.32
ImageDN 200DN 100435 mm100 mm403 mm15.6 kg0174.51.36
ImageDN 200DN 125390 mm130 mm349 mm18.2 kg0174.75.03
ImageDN 200DN 150430 mm150 mm364 mm19.5 kg0174.51.37
ImageDN 70DN 50160 mm100 mm99 mm1.8 kg0174.51.38
ImageDN 100DN 70210 mm125 mm135 mm3.5 kg0174.51.39
ImageDN 125DN 100265 mm155 mm175 mm6.0 kg0174.51.40
ImageDN 150DN 100265 mm155 mm189 mm7.0 kg0174.51.41
ImageDN 150DN 125300 mm175 mm209 mm9.0 kg0174.51.42
ImageDN 200DN 100305 mm195 mm220 mm13.5 kg0174.51.43
ImageDN 200DN 150365 mm225 mm246 mm17.0 kg0174.51.44
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipes0174.14.670174.14.680174.14.690174.14.700174.14.710174.14.730174.14.740174.14.75
For the transition to pipe 32 mm0174.14.830174.14.84
For the transition to pipe 38 mm and plastic siphon 40 mm0174.14.850174.14.86
For the transition to pipe 48 mm and plastic siphon 50 mm0174.14.87
For the transition of the KA sleeve DN 100 to GM-X pipe DN 1000174.14.80
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 800174.14.82
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm0174.14.72
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm0174.14.81
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipesE80010040 E80010050E80010070 E80010080E80010100 E80010125E80010150 E80010200
For the transition to pipe 32 mmE80100040 E80100050
For the transition to pipe 38 mm and plastic siphon 40 mmE80110040 E80110050
For the transition to pipe 48 mm and plastic siphon 50 mm E80130050
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 E80040100
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80E80060080
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm E80010110
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mmE80055125

Coupling socket dimensions

Nominal widthd1d2m1m12s1s2
DNmmmmmmmmmmmm
40428930251,51,8
50538938301,51,8
707310255451,62,0
808913460501,82,0
10010213470602,02,0
12513316475652,52,0
15015920480702,52,0
2002192731201103,22,0

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.45.60

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.45.61

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.45.62

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.45.63

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.45.64

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.3 kg
Item no.
0174.45.65

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 150
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.4 kg
Item no.
0174.45.66

Pipe clamp

Description
  • Weight: 0.2 kg
Item no.
0174.45.14

Pipe clamp

Description
  • Weight: 0.3 kg
Item no.
0174.45.15

Pipe clamp

Description
  • Weight: 0.3 kg
Item no.
0174.45.16

Pipe clamp

Description
  • Weight: 0.3 kg
Item no.
0174.45.17

Pipe clamp

Description
  • Weight: 0.4 kg
Item no.
0174.45.18

Pipe clamp

Description
  • Weight: 0.5 kg
Item no.
0174.45.19

Pipe clamp

Description
  • Weight: 0.8 kg
Item no.
0174.45.20

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 40
  • D = 100 mm
Item no.
0174.77.17

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 50
  • D = 130 mm
Item no.
0174.77.18

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 70
  • D = 150 mm
Item no.
0174.77.19

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 80
  • D = 150 mm
Item no.
0174.77.20

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 100
  • D = 180 mm
Item no.
0174.77.21

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 125
  • D = 220 mm
Item no.
0174.77.22

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 150
  • D = 225 mm
Item no.
0174.77.23

GM-X lubricant

Suitable for
  • GM-X drainpipes
  • GM-X compound piping
Description
  • In can
  • Contents: 1,000 g
  • To be used as per laying instructions 0154.49.79
  • Weight: 1.1 kg
Item no.
0174.14.98
