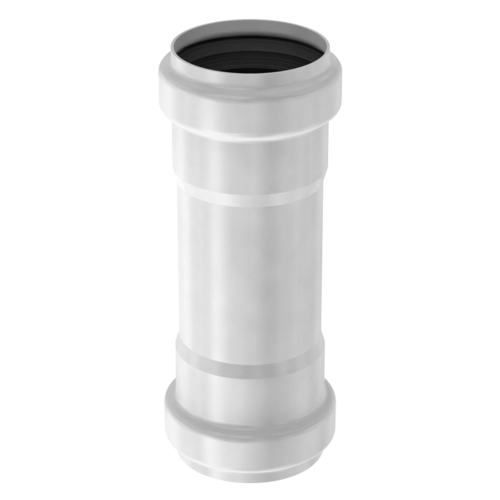

Straight pipes - double socket

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof
Contact
Downloads

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

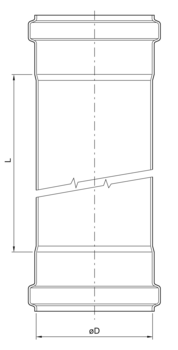

Nominal pipe sizeActive length (L)DimensionsMaterialSealWeightItem

number		Remember
D
[mm][mm][kg]
DN 40250401.4301EPDM0.20417276
1.4404EPDM0.20417290
500401.4301EPDM0.60417278
1.4404EPDM0.60417292
750401.4301EPDM0.90417280
1.4404EPDM0.90417294
1000401.4301EPDM1.20417282
1.4404EPDM1.20417296
1500401.4301EPDM1.80417284
1.4404EPDM1.80417298
2000401.4301EPDM2.40417286
1.4404EPDM2.40417300
3000401.4301EPDM3.60417288
1.4404EPDM3.60417302
DN 50250501.4301EPDM0.40419554
Viton®0.40419555
1.4404EPDM0.40419594
Viton®0.40419595
500501.4301EPDM0.70419556
Viton®0.70419557
1.4404EPDM0.70419596
Viton®0.70419597
750501.4301EPDM1.10419558
Viton®1.10419559
1.4404EPDM1.10419598
Viton®1.10419599
1000501.4301EPDM1.40419560
Viton®1.40419561
1.4404EPDM1.40419600
Viton®1.40419601
1500501.4301EPDM2.00419562
Viton®2.00419563
1.4404EPDM2.00419602
Viton®2.00419603
2000501.4301EPDM2.60419564
Viton®2.60419565
1.4404EPDM2.60419604
Viton®2.60419605
3000501.4301EPDM3.90419566
Viton®3.90419567
1.4404EPDM3.90419606
Viton®3.90419607
DN 75250751.4301EPDM0.70419568
Viton®0.70419569
1.4404EPDM0.70419608
Viton®0.70419609
500751.4301EPDM1.20419570
Viton®1.20419571
1.4404EPDM1.20419610
Viton®1.20419611
750751.4301EPDM1.60419572
Viton®1.60419573
1.4404EPDM1.60419612
Viton®1.60419613
1000751.4301EPDM2.10419574
Viton®2.10419575
1.4404EPDM2.10419614
Viton®2.10419615
1500751.4301EPDM3.00419576
Viton®3.00419577
1.4404EPDM3.00419616
Viton®3.00419617
2000751.4301EPDM4.00419578
Viton®4.00419579
1.4404EPDM4.00419618
Viton®4.00419619
3000751.4301EPDM5.80419580
Viton®5.80419581
1.4404EPDM5.80419620
Viton®5.80419621
DN 1105001101.4301EPDM1.70419582
Viton®1.70419583
1.4404EPDM1.70419622
Viton®1.70419623
7501101.4301EPDM2.40419584
Viton®2.40419585
1.4404EPDM2.40419624
Viton®2.40419625
10001101.4301EPDM3.00419586
Viton®3.00419587
1.4404EPDM3.00419626
Viton®3.00419627
15001101.4301EPDM4.40419588
Viton®4.40419589
1.4404EPDM4.40419628
Viton®4.40419629
20001101.4301EPDM5.70419590
Viton®5.70419591
1.4404EPDM5.70419630
Viton®5.70419631
30001101.4301EPDM8.40419592
Viton®8.40419593
1.4404EPDM8.40419632
Viton®8.40419633
DN 1255001251.4301EPDM1.70419787
Viton®1.70419788
1.4404EPDM1.70419799
Viton®1.70419800
7501251.4301EPDM2.50419789
Viton®2.50419790
1.4404EPDM2.50419801
Viton®2.50419802
10001251.4301EPDM3.30419791
Viton®3.30419792
1.4404EPDM3.30419803
Viton®3.30419804
15001251.4301EPDM4.90419793
Viton®4.90419794
1.4404EPDM4.90419805
Viton®4.90419806
20001251.4301EPDM6.50419795
Viton®6.50419796
1.4404EPDM6.50419807
Viton®6.50419808
30001251.4301EPDM9.60419797
Viton®9.60419798
1.4404EPDM9.60419809
Viton®9.60419810
DN 1605001601.4301EPDM3.30419634
Viton®3.30419635
1.4404EPDM3.30419646
Viton®3.30419647
7501601.4301EPDM4.50419636
Viton®4.50419637
1.4404EPDM4.50419648
Viton®4.50419649
10001601.4301EPDM5.80419638
Viton®5.80419639
1.4404EPDM5.80419650
Viton®5.80419651
15001601.4301EPDM8.20419640
Viton®8.20419641
1.4404EPDM8.20419652
Viton®8.20419653
20001601.4301EPDM10.70419642
Viton®10.70419643
1.4404EPDM10.70419654
Viton®10.70419655
30001601.4301EPDM15.70419644
Viton®15.70419645
1.4404EPDM15.70419656
Viton®15.70419657
DN 2005002001.4301EPDM5.00419658
Viton®5.00419660
1.4404EPDM5.00419659
Viton®5.00419661
10002001.4301EPDM8.60419662
Viton®8.60419664
1.4404EPDM8.60419663
Viton®8.60419665
20002001.4301EPDM15.90419666
Viton®15.90419668
1.4404EPDM15.90419667
Viton®15.90419669
30002001.4301EPDM23.10419670
Viton®23.10419672
1.4404EPDM23.10419671
Viton®23.10419673
Nominal sizeActive length (L)DimensionsSealMaterialWeightItem

number
D
DN 40250 mm40 mmEPDM1.43010.20 kg417276
1.44040.20 kg417290
500 mm40 mmEPDM1.43010.60 kg417278
1.44040.60 kg417292
750 mm40 mmEPDM1.43010.90 kg417280
1.44040.90 kg417294
1000 mm40 mmEPDM1.43011.20 kg417282
1.44041.20 kg417296
1500 mm40 mmEPDM1.43011.80 kg417284
1.44041.80 kg417298
2000 mm40 mmEPDM1.43012.40 kg417286
1.44042.40 kg417300
3000 mm40 mmEPDM1.43013.60 kg417288
1.44043.60 kg417302
DN 50250 mm50 mmEPDM1.43010.40 kg419554
Viton®1.43010.40 kg419555
EPDM1.44040.40 kg419594
Viton®1.44040.40 kg419595
500 mm50 mmEPDM1.43010.70 kg419556
Viton®1.43010.70 kg419557
EPDM1.44040.70 kg419596
Viton®1.44040.70 kg419597
750 mm50 mmEPDM1.43011.10 kg419558
Viton®1.43011.10 kg419559
EPDM1.44041.10 kg419598
Viton®1.44041.10 kg419599
1000 mm50 mmEPDM1.43011.40 kg419560
Viton®1.43011.40 kg419561
EPDM1.44041.40 kg419600
Viton®1.44041.40 kg419601
1500 mm50 mmEPDM1.43012.00 kg419562
Viton®1.43012.00 kg419563
EPDM1.44042.00 kg419602
Viton®1.44042.00 kg419603
2000 mm50 mmEPDM1.43012.60 kg419564
Viton®1.43012.60 kg419565
EPDM1.44042.60 kg419604
Viton®1.44042.60 kg419605
3000 mm50 mmEPDM1.43013.90 kg419566
Viton®1.43013.90 kg419567
EPDM1.44043.90 kg419606
Viton®1.44043.90 kg419607
DN 75250 mm75 mmEPDM1.43010.70 kg419568
Viton®1.43010.70 kg419569
EPDM1.44040.70 kg419608
Viton®1.44040.70 kg419609
500 mm75 mmEPDM1.43011.20 kg419570
Viton®1.43011.20 kg419571
EPDM1.44041.20 kg419610
Viton®1.44041.20 kg419611
750 mm75 mmEPDM1.43011.60 kg419572
Viton®1.43011.60 kg419573
EPDM1.44041.60 kg419612
Viton®1.44041.60 kg419613
1000 mm75 mmEPDM1.43012.10 kg419574
Viton®1.43012.10 kg419575
EPDM1.44042.10 kg419614
Viton®1.44042.10 kg419615
1500 mm75 mmEPDM1.43013.00 kg419576
Viton®1.43013.00 kg419577
EPDM1.44043.00 kg419616
Viton®1.44043.00 kg419617
2000 mm75 mmEPDM1.43014.00 kg419578
Viton®1.43014.00 kg419579
EPDM1.44044.00 kg419618
Viton®1.44044.00 kg419619
3000 mm75 mmEPDM1.43015.80 kg419580
Viton®1.43015.80 kg419581
EPDM1.44045.80 kg419620
Viton®1.44045.80 kg419621
DN 110500 mm110 mmEPDM1.43011.70 kg419582
Viton®1.43011.70 kg419583
EPDM1.44041.70 kg419622
Viton®1.44041.70 kg419623
750 mm110 mmEPDM1.43012.40 kg419584
Viton®1.43012.40 kg419585
EPDM1.44042.40 kg419624
Viton®1.44042.40 kg419625
1000 mm110 mmEPDM1.43013.00 kg419586
Viton®1.43013.00 kg419587
EPDM1.44043.00 kg419626
Viton®1.44043.00 kg419627
1500 mm110 mmEPDM1.43014.40 kg419588
Viton®1.43014.40 kg419589
EPDM1.44044.40 kg419628
Viton®1.44044.40 kg419629
2000 mm110 mmEPDM1.43015.70 kg419590
Viton®1.43015.70 kg419591
EPDM1.44045.70 kg419630
Viton®1.44045.70 kg419631
3000 mm110 mmEPDM1.43018.40 kg419592
Viton®1.43018.40 kg419593
EPDM1.44048.40 kg419632
Viton®1.44048.40 kg419633
DN 125500 mm125 mmEPDM1.43011.70 kg419787
Viton®1.43011.70 kg419788
EPDM1.44041.70 kg419799
Viton®1.44041.70 kg419800
750 mm125 mmEPDM1.43012.50 kg419789
Viton®1.43012.50 kg419790
EPDM1.44042.50 kg419801
Viton®1.44042.50 kg419802
1000 mm125 mmEPDM1.43013.30 kg419791
Viton®1.43013.30 kg419792
EPDM1.44043.30 kg419803
Viton®1.44043.30 kg419804
1500 mm125 mmEPDM1.43014.90 kg419793
Viton®1.43014.90 kg419794
EPDM1.44044.90 kg419805
Viton®1.44044.90 kg419806
2000 mm125 mmEPDM1.43016.50 kg419795
Viton®1.43016.50 kg419796
EPDM1.44046.50 kg419807
Viton®1.44046.50 kg419808
3000 mm125 mmEPDM1.43019.60 kg419797
Viton®1.43019.60 kg419798
EPDM1.44049.60 kg419809
Viton®1.44049.60 kg419810
DN 160500 mm160 mmEPDM1.43013.30 kg419634
Viton®1.43013.30 kg419635
EPDM1.44043.30 kg419646
Viton®1.44043.30 kg419647
750 mm160 mmEPDM1.43014.50 kg419636
Viton®1.43014.50 kg419637
EPDM1.44044.50 kg419648
Viton®1.44044.50 kg419649
1000 mm160 mmEPDM1.43015.80 kg419638
Viton®1.43015.80 kg419639
EPDM1.44045.80 kg419650
Viton®1.44045.80 kg419651
1500 mm160 mmEPDM1.43018.20 kg419640
Viton®1.43018.20 kg419641
EPDM1.44048.20 kg419652
Viton®1.44048.20 kg419653
2000 mm160 mmEPDM1.430110.70 kg419642
Viton®1.430110.70 kg419643
EPDM1.440410.70 kg419654
Viton®1.440410.70 kg419655
3000 mm160 mmEPDM1.430115.70 kg419644
Viton®1.430115.70 kg419645
EPDM1.440415.70 kg419656
Viton®1.440415.70 kg419657
DN 200500 mm200 mmEPDM1.43015.00 kg419658
Viton®1.43015.00 kg419660
EPDM1.44045.00 kg419659
Viton®1.44045.00 kg419661
1000 mm200 mmEPDM1.43018.60 kg419662
Viton®1.43018.60 kg419664
EPDM1.44048.60 kg419663
Viton®1.44048.60 kg419665
2000 mm200 mmEPDM1.430115.90 kg419666
Viton®1.430115.90 kg419668
EPDM1.440415.90 kg419667
Viton®1.440415.90 kg419669
3000 mm200 mmEPDM1.430123.10 kg419670
Viton®1.430123.10 kg419672
EPDM1.440423.10 kg419671
Viton®1.440423.10 kg419673
