Wall and ceiling penetration for waterproof concrete roofs

Wall And Ceiling Penetration For Waterproof Concrete Roofs 714982

Wall And Ceiling Penetration For Waterproof Concrete Roofs 714986

Wall And Ceiling Penetration For Waterproof Concrete Roofs 714984

Product benefits

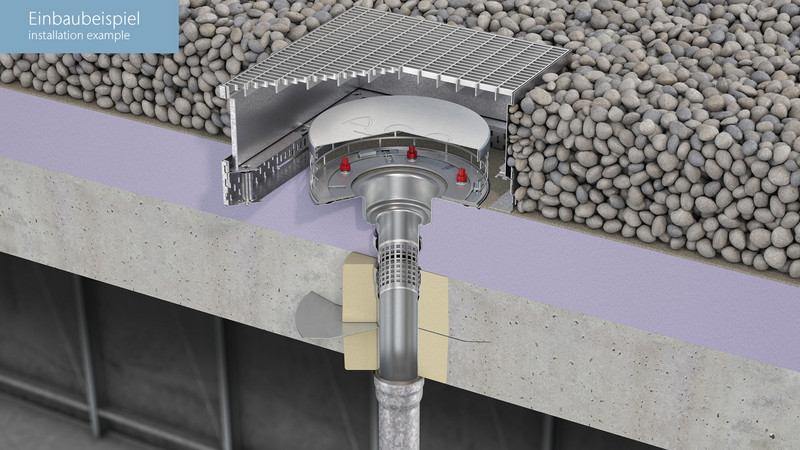

Can be combined with Variant-Flex flat roof gully
No recess necessary. The waterproof duct is cast directly into the waterproof concrete ceiling.
With surrounding sealing flange, which prevents the penetration of seepage water.
No corrosion

Product information

Wall and ceiling penetration for waterproof concrete
Material: stainless steel 1.4301
Building material class: A1, non-flammable
Nominal widths DN70 - DN200
Optionally with or without PUR insulation
Scope of application:
- Flat roof drainage
- Use for down pipe ventilation
- Parapet wall roof drainage
Suitable for ACO plug-in pipes made of stainless steel 1.4301

		Material	Nominal width	Dimensions		Item number	Downloads	Remember
				d	l
				[mm]	[mm]
		1.4301	DN 70	342	510	Z417681
			DN 100	342	510	Z417685
			DN 125	460	510	Z417688
			DN 150	460	510	Z417691
			DN 200	460	530	Z417694
			DN 70	342	910	0174.59.30
			DN 100	342	910	0174.59.31

		Material	Nominal width	Dimensions				Item number	Downloads	Remember
				d	l	H1	H2
				[mm]	[mm]	[mm]	[mm]
		1.4301	DN 70	342	510	108	90	Z417683
			DN 100	342	510	108	90	Z417686
			DN 125	460	510	108	90	Z417689
			DN 150	460	510	108	90	Z417692
			DN 200	460	530	128	70	Z417695
			DN 70	342	910	108	90	0174.59.32
			DN 100	342	910	108	90	0174.59.33

			Description	Material	Nominal width	Dimensions				Item number
			Description	Material	Nominal width	d	l	H1	H2	Item number

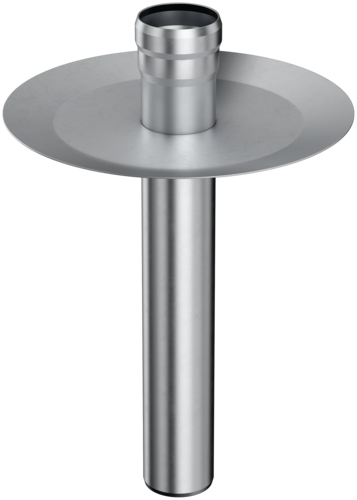

			WU wall and ceiling penetration with barrier flange	1.4301	DN 70	342 mm	510 mm			Z417681
			WU wall and ceiling penetration with barrier flange	1.4301	DN 100	342 mm	510 mm			Z417685
			WU wall and ceiling penetration with barrier flange	1.4301	DN 125	460 mm	510 mm			Z417688
			WU wall and ceiling penetration with barrier flange	1.4301	DN 150	460 mm	510 mm			Z417691
			WU wall and ceiling penetration with barrier flange	1.4301	DN 200	460 mm	530 mm			Z417694
			WU wall and ceiling penetration with barrier flange	1.4301	DN 70	342 mm	910 mm			0174.59.30
			WU wall and ceiling penetration with barrier flange	1.4301	DN 100	342 mm	910 mm			0174.59.31

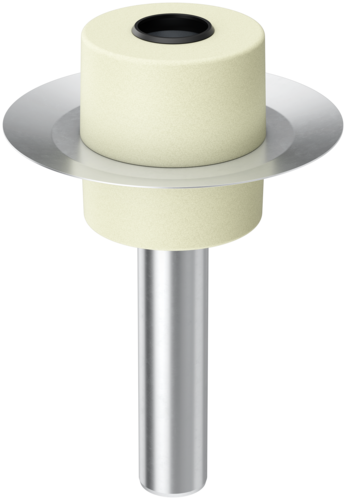

			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 70	342 mm	510 mm	108 mm	90 mm	Z417683
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 100	342 mm	510 mm	108 mm	90 mm	Z417686
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 125	460 mm	510 mm	108 mm	90 mm	Z417689
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 150	460 mm	510 mm	108 mm	90 mm	Z417692
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 200	460 mm	530 mm	128 mm	70 mm	Z417695
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 70	342 mm	910 mm	108 mm	90 mm	0174.59.32
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 100	342 mm	910 mm	108 mm	90 mm	0174.59.33

Insert pipe for WU concrete ducts

Insert pipe for WU concrete ducts

		Material	Nominal width	Dimensions		Item number	Downloads	Remember
				d	l
				[mm]	[mm]
		1.4301	DN 70	342	510	Z417681
			DN 100	342	510	Z417685
			DN 125	460	510	Z417688
			DN 150	460	510	Z417691
			DN 200	460	530	Z417694
			DN 70	342	910	0174.59.30
			DN 100	342	910	0174.59.31

		Material	Nominal width	Dimensions				Item number	Downloads	Remember
				d	l	H1	H2
				[mm]	[mm]	[mm]	[mm]
		1.4301	DN 70	342	510	108	90	Z417683
			DN 100	342	510	108	90	Z417686
			DN 125	460	510	108	90	Z417689
			DN 150	460	510	108	90	Z417692
			DN 200	460	530	128	70	Z417695
			DN 70	342	910	108	90	0174.59.32
			DN 100	342	910	108	90	0174.59.33

			Description	Material	Nominal width	Dimensions				Item number
			Description	Material	Nominal width	d	l	H1	H2	Item number
			WU wall and ceiling penetration with barrier flange	1.4301	DN 70	342 mm	510 mm			Z417681
			WU wall and ceiling penetration with barrier flange	1.4301	DN 100	342 mm	510 mm			Z417685
			WU wall and ceiling penetration with barrier flange	1.4301	DN 125	460 mm	510 mm			Z417688
			WU wall and ceiling penetration with barrier flange	1.4301	DN 150	460 mm	510 mm			Z417691
			WU wall and ceiling penetration with barrier flange	1.4301	DN 200	460 mm	530 mm			Z417694
			WU wall and ceiling penetration with barrier flange	1.4301	DN 70	342 mm	910 mm			0174.59.30
			WU wall and ceiling penetration with barrier flange	1.4301	DN 100	342 mm	910 mm			0174.59.31
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 70	342 mm	510 mm	108 mm	90 mm	Z417683
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 100	342 mm	510 mm	108 mm	90 mm	Z417686
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 125	460 mm	510 mm	108 mm	90 mm	Z417689
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 150	460 mm	510 mm	108 mm	90 mm	Z417692
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 200	460 mm	530 mm	128 mm	70 mm	Z417695
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 70	342 mm	910 mm	108 mm	90 mm	0174.59.32
			WU wall and ceiling penetration with barrier flange and insulation	1.4301	DN 100	342 mm	910 mm	108 mm	90 mm	0174.59.33

Insert pipe for WU concrete ducts
