Insert Pipe For Wu Concrete Ducts 714989

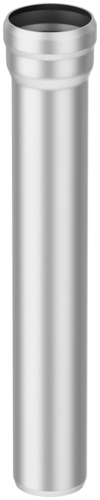

Insert pipe for WU concrete ducts

Product information

  • Insert pipes made of stainless steel 1.4301
  • Building material class: A1, non-flammable
  • Nominal widths DN70 - DN200
  • Scope:
    • Suitable for wall and ceiling penetrations for waterproof concrete

Description: insert tube

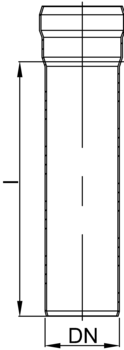

MaterialDimensionsNominal widthItem

number		Remember
l
[mm]
1.4301250DN 700174.59.3413
DN 1000174.59.3513
DN 1250174.59.3613
DN 1500174.59.3713
DN 2000174.59.3813
510DN 700174.59.39
DN 1000174.59.4013
DN 1250174.59.4113
DN 1500174.59.4213
DN 2000174.59.4313
750DN 700174.59.4413
DN 1000174.59.4513
DN 1250174.59.4613
DN 1500174.59.4713
DN 2000174.59.4813
DescriptionMaterialDimensionsNominal widthItem

number
l
insert tube1.4301250 mmDN 700174.59.34
insert tube1.4301250 mmDN 1000174.59.35
insert tube1.4301250 mmDN 1250174.59.36
insert tube1.4301250 mmDN 1500174.59.37
insert tube1.4301250 mmDN 2000174.59.38
insert tube1.4301510 mmDN 700174.59.39
insert tube1.4301510 mmDN 1000174.59.40
insert tube1.4301510 mmDN 1250174.59.41
insert tube1.4301510 mmDN 1500174.59.42
insert tube1.4301510 mmDN 2000174.59.43
insert tube1.4301750 mmDN 700174.59.44
insert tube1.4301750 mmDN 1000174.59.45
insert tube1.4301750 mmDN 1250174.59.46
insert tube1.4301750 mmDN 1500174.59.47
insert tube1.4301750 mmDN 2000174.59.48
Wall and ceiling penetration for waterproof concrete roofs

Wall and ceiling penetration for waterproof concrete roofs

Description: insert tube

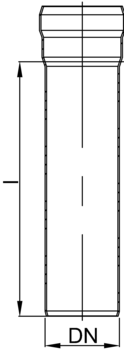

MaterialDimensionsNominal widthItem
