Fixed height – vertical outlet

Product benefits

Fully inspectable and cleanable
Fully removable and easily cleanable stainless steel foul air trap (FAT)
Full drainability
Internal radii equal or larger than 3 mm
Fully welded hygienic joints
Steel thickness min. 1,5 mm
Edge infill
ACO protective cover available
Fully pickled and passivated

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Certified according to EN 1253-1
Silt basket available as accessory

	Gully top dimensions	Outlet diameter ∅	Foul air trap	Flow rate EN 1253-1 / Direct *	Material	Item number	Downloads	Remember
	[mm]	[mm]	Foul air trap	[l/s]	Material	Item number	Downloads	Remember
	600 x 600	160	Without		1.4301	446425
			Without		1.4404	446428
			With	12.0 / 28	1.4301	446426
			With	12.0 / 28	1.4404	446429
		200	Without		1.4301	446396
			Without		1.4404	446412
			With	12.0 / 32	1.4301	446397
			With	12.0 / 32	1.4404	446413

	Recess	Outlet diameter ∅	Flow rate EN 1253-1 / Direct *	Odour trap	Material	Item number
	600 x 600 mm	160 mm		Without	1.4301	446425
	600 x 600 mm	160 mm		Without	1.4404	446428
	600 x 600 mm	160 mm	12.0 / 28 l/s	With	1.4301	446426
	600 x 600 mm	160 mm	12.0 / 28 l/s	With	1.4404	446429
	600 x 600 mm	200 mm		Without	1.4301	446396
	600 x 600 mm	200 mm		Without	1.4404	446412
	600 x 600 mm	200 mm	12.0 / 32 l/s	With	1.4301	446397
	600 x 600 mm	200 mm	12.0 / 32 l/s	With	1.4404	446413

Gratings and covers for ACO hygienic gully - high capacity

ACO hygienic ladder grating

ACO mesh grating

ACO mesh grating

ACO tundish portable

Suitable for

Universal

Description

Base width x length (mm): 250 mm x 286 mm
Funnel width x length (mm): x
Funnel height (mm): 100 mm
Material (EN 1253): 1.4301

Item no.
450648

ACO tundish portable

Suitable for

Universal

Description

Base width x length (mm): 250 mm x 286 mm
Funnel width x length (mm): x
Funnel height (mm): 200 mm
Material (EN 1253): 1.4301

Item no.
450649

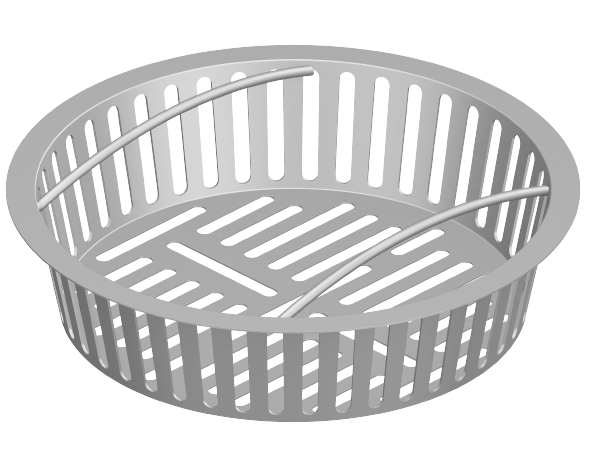

Silt basket

Description

Material grade 1.4301 (304)

Item no.
446399

Silt basket

Description

Material grade 1.4404 (316L)

Item no.
446415

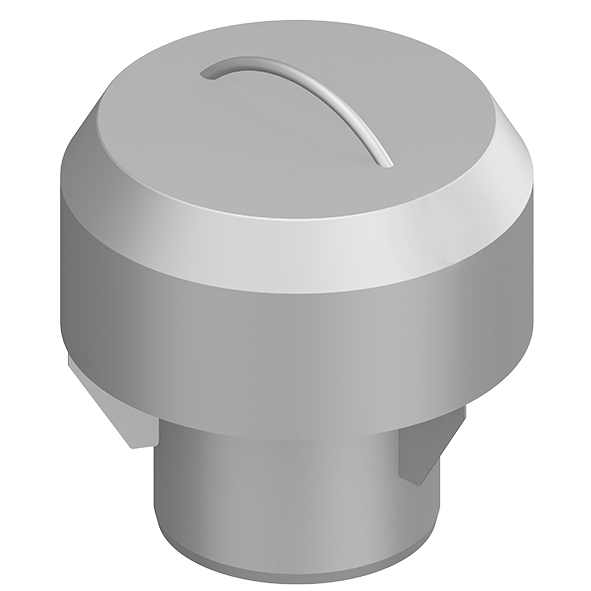

Bell foul air trap

Description

Material grade 1.4301 (304)

Item no.
446398

Bell foul air trap

Description

Material grade 1.4404 (316L)

Item no.
446414
