Fixed height – vertical outlet

Fixed Height Vertical Outlet 391871

Product benefits

Fully inspectable and cleanable
Fully removable and easily cleanable stainless steel foul air trap (FAT)
Full drainability
Internal radii equal or larger than 3 mm
Fully welded hygienic joints
Steel thickness min. 1,5 mm
Edge infill
ACO protective cover available
Fully pickled and passivated

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Certified according to EN 1253-1
Silt basket available as accessory

	Gully top dimensions	Outlet diameter ∅	Foul air trap	Flow rate EN 1253-1 / Direct *	Material	Item number	Downloads	Remember
	[mm]	[mm]	Foul air trap	[l/s]	Material	Item number	Downloads	Remember
	400 x 400	160	With	9.5 / 20	1.4301	446844
			With	9.5 / 20	1.4404	446846
			Without		1.4301	446845
			Without		1.4404	446847

	Recess	Outlet diameter ∅	Flow rate EN 1253-1 / Direct *	Odour trap	Material	Item number
	400 x 400 mm	160 mm	9.5 / 20 l/s	With	1.4301	446844
	400 x 400 mm	160 mm	9.5 / 20 l/s	With	1.4404	446846
	400 x 400 mm	160 mm		Without	1.4301	446845
	400 x 400 mm	160 mm		Without	1.4404	446847

Gratings and covers for ACO hygienic gully - high capacity

ACO hygienic ladder grating

ACO mesh grating

ACO mesh grating

ACO tundish portable

Suitable for

Universal

Description

Base width x length (mm): 250 mm x 286 mm
Funnel width x length (mm): x
Funnel height (mm): 100 mm
Material (EN 1253): 1.4301

Item no.
450648

ACO tundish portable

Suitable for

Universal

Description

Base width x length (mm): 250 mm x 286 mm
Funnel width x length (mm): x
Funnel height (mm): 200 mm
Material (EN 1253): 1.4301

Item no.
450649

Silt basket

Description

Material grade 1.4301 (304)

Item no.
447681

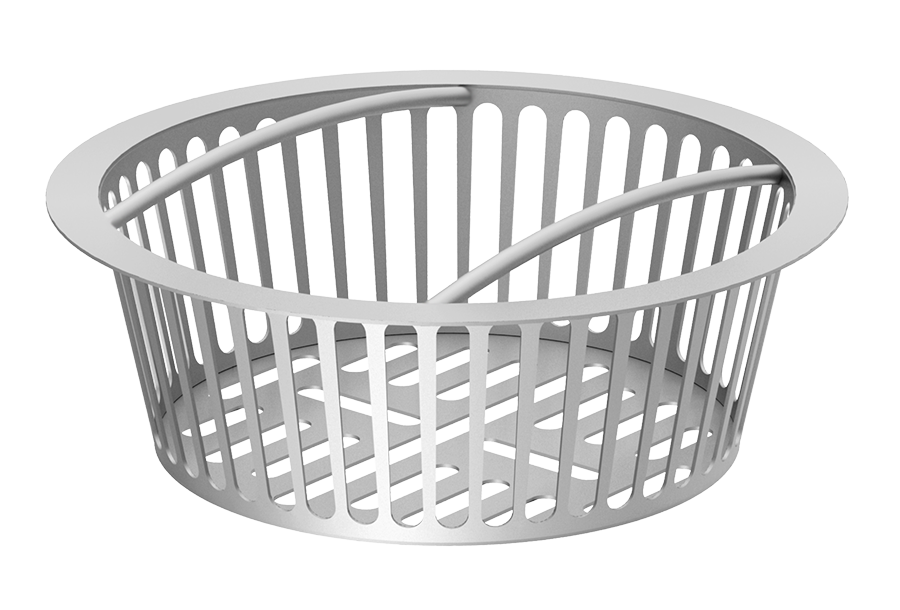

Silt basket

Description

Material grade 1.4404 (316L)

Item no.
447682

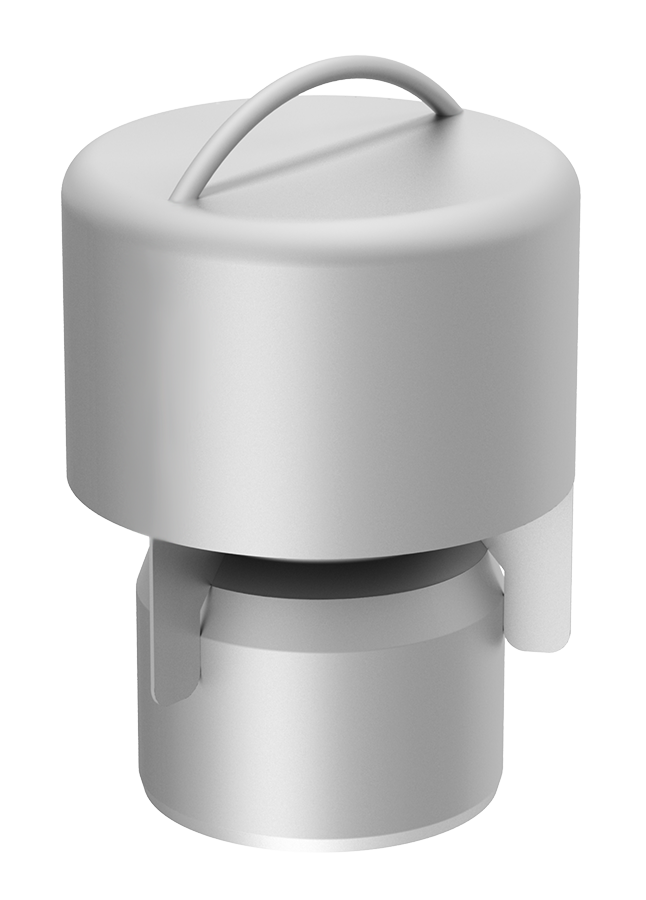

Bell foul air trap

Description

Material grade 1.4301 (304)

Item no.
447673

Bell foul air trap

Description

Material grade 1.4404 (316L)

Item no.
447674
