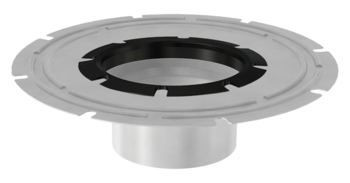

Raising pieces for ACO hygienic gully 157 - telescopic

Product benefits

Fully inspectable and cleanable
Internal radii equal or larger than 3 mm
Fully welded hygienic joints
Steel thickness min. 1,5 mm
Fully pickled and passivated

Product information

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Certified according to EN 1253-1
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Suitable for all floor types including vinyl flooring
Location flange or integrated membrane flange for either adhesive bonding or mechanical clamp
Telescopic friction ring included

	Description	Length	Width	Version	Item number	Downloads	Remember
	Description	[mm]	[mm]	Version	Item number	Downloads	Remember
	With location flange	182	182	1.4301	408249
	With location flange	182	182	1.4404	408259
	With adhesive bonding flange	357	357	1.4301	408206
	With adhesive bonding flange	357	357	1.4404	408216
	With mechanical clamping flange	357	357	1.4301	408207
	With mechanical clamping flange	357	357	1.4404	408217

	Description	Length	Width	Version	Item number
	With location flange	182 mm	182 mm	1.4301	408249
	With location flange	182 mm	182 mm	1.4404	408259
	With adhesive bonding flange	357 mm	357 mm	1.4301	408206
	With adhesive bonding flange	357 mm	357 mm	1.4404	408216
	With mechanical clamping flange	357 mm	357 mm	1.4301	408207
	With mechanical clamping flange	357 mm	357 mm	1.4404	408217

Telescopic – vertical outlet

Telescopic – vertical outlet

Telescopic – horizontal outlet

Telescopic – horizontal outlet
