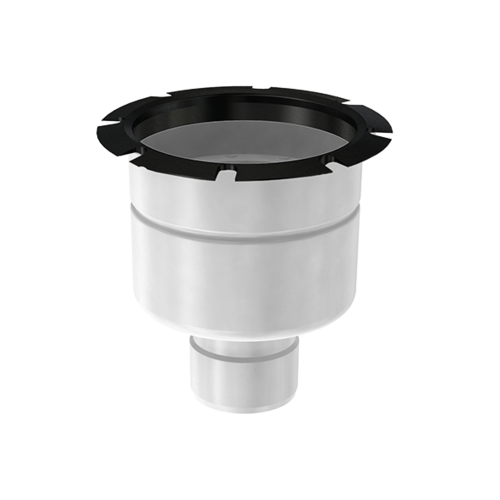

Telescopic – vertical outlet
Product benefits
- Fully inspectable and cleanable
- Fully removable and easily cleanable stainless steel foul air trap (FAT)
- Full drainability
- Internal radii equal or larger than 3 mm
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Fully pickled and passivated
Product information
- Certified according to EN 1253-1
- Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Suitable for all floor types including vinyl flooring
- Location flange or integrated membrane flange for either adhesive bonding or mechanical clamp
- Telescopic friction ring included
- Certified fire protective solution available for classes EI 90 – EI 180 (EN 13 501-2)

Gully tops for ACO hygienic gully 218 - telescopic

Raising pieces for ACO hygienic gully 218 - telescopic

ACO weldless ladder grating

ACO frameless ladder grating

ACO hygienic ladder grating

ACO hygienic slot cover

ACO perforated grating

ACO mesh grating

ACO quadrato grating

ACO heelsafe grating

ACO multi-slot 5 grating

ACO odour proof gully cover

ACO ladder grating

ACO perforated grating
ACO tundish portable
ACO tundish portable
ACO fire resistant kit for gully 218/ DN 110
ACO fire resistant kit for gully 218/ DN 160
Silt basket
Suitable for
- ACO hygienic gully 218 - Vertical
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: vertical
Description
Stainless steel
- 1,4 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO hygienic gully 218 - Vertical
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: vertical
Description
Stainless steel
- 1,4 litre capacity
- Material grade 1.4404 (316L)
Odour trap
Odour trap
