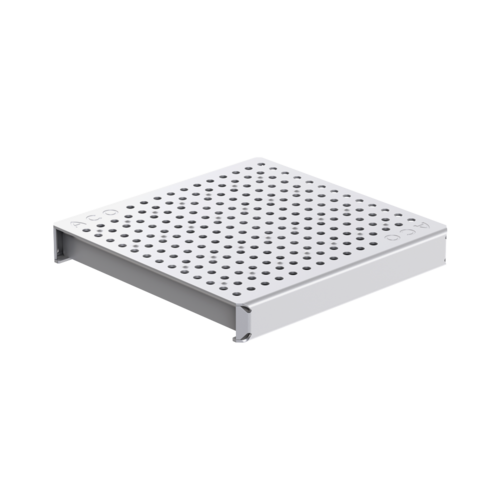

ACO perforated grating

Grating dimensions			Class	Material	Item number
Size	Frame height (E)	Bar height (G)	Class	Material	Item number
268 x 268 mm	30 mm	30 mm	L 15	1.4301	450408
268 x 268 mm	30 mm	30 mm	L 15	1.4404	450409
268 x 268 mm	30 mm	30 mm	R 50	1.4301	450410
268 x 268 mm	30 mm	30 mm	R 50	1.4404	450411

Fixed height with vertical outlet - Square top

Fixed height with horizontal outlet - Square top

Telescopic – vertical outlet

Telescopic – horizontal outlet

Fixed height with vertical outlet - Round top

Extended fixed height – vertical outlet

Fixed height with horizontal outlet - Round top

Extended fixed height – horizontal outlet

Grating dimensions			Class	Material	Item number
Size	Frame height (E)	Bar height (G)	Class	Material	Item number
268 x 268 mm	30 mm	30 mm	L 15	1.4301	450408
268 x 268 mm	30 mm	30 mm	L 15	1.4404	450409
268 x 268 mm	30 mm	30 mm	R 50	1.4301	450410
268 x 268 mm	30 mm	30 mm	R 50	1.4404	450411
