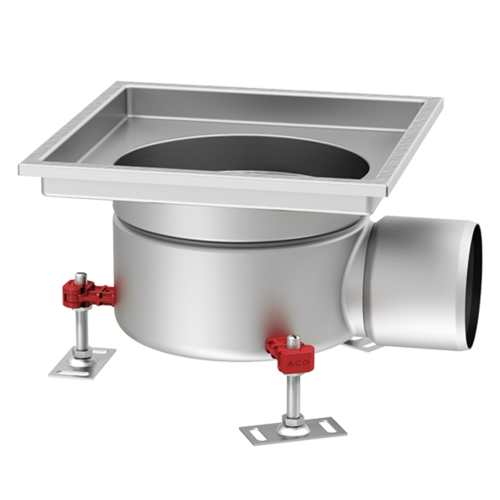

Fixed height with horizontal outlet - Square top
Product benefits
- Fully inspectable and cleanable
- Fully removable and easily cleanable stainless steel foul air trap (FAT)
- Full drainability
- Internal radii equal or larger than 3 mm
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Edge infill
- ACO protective cover available
- Fully pickled and passivated
Product information
- Certified according to EN 1253-1
- Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Adjustable EasyFix leveling feet
- Wide range of gratings for various load classes including slip resistant solutions
- Silt basket available as accessory
Gully tops for ACO hygienic gully 218 - telescopic
Raising pieces for ACO hygienic gully 218 - telescopic
ACO weldless ladder grating
ACO frameless ladder grating
ACO hygienic ladder grating
ACO hygienic slot cover
ACO perforated grating
ACO mesh grating
ACO quadrato grating
ACO heelsafe grating
ACO multi-slot 5 grating
ACO odour proof gully cover
ACO ladder grating
ACO perforated grating
ACO Easy FAT 218
Suitable for
- ACO gully 218, fixed height
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 416910 (1.4301)
- 416911 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.9 l/s
- Maximum flow rate with vertical gully: 5.6 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 1.3 kg
ACO Easy FAT 218
Suitable for
- ACO gully 218, fixed height
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 416910 (1.4301)
- 416911 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.9 l/s
- Maximum flow rate with vertical gully: 5.6 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 1.3 kg
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
ACO Easy FAT 218
Suitable for
- ACO gully 218, fixed height
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 5.8 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1.9 kg
ACO Easy FAT 218
Suitable for
- ACO gully 218, fixed height
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 5.8 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1.9 kg
ACO mesh tundish 300
Suitable for
- ACO gully tops with frame dimensions 300 x 300 mm
Description
Features
- Grating width x length (mm): 268 mm x 268 mm
- Grating height (mm): 30 mm
- Funnel width x length (mm): 223 mm x 223 mm
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO mesh tundish 300
Suitable for
- ACO gully tops with frame dimensions 300 x 300 mm
Description
Features
- Grating width x length (mm): 268 mm x 268 mm
- Grating height (mm): 30 mm
- Funnel width x length (mm): 223 mm x 223 mm
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
ACO quadrato tundish 300
Suitable for
- ACO gully tops with frame dimensions 300 x 300 mm
Description
Features
- Grating width x length (mm): 268 mm x 268 mm
- Grating height (mm): 30 mm
- Funnel width x length (mm): 223 mm x 223 mm
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO quadrato tundish 300
Suitable for
- ACO gully tops with frame dimensions 300 x 300 mm
Description
Features
- Grating width x length (mm): 268 mm x 268 mm
- Grating height (mm): 30 mm
- Funnel width x length (mm): 223 mm x 223 mm
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
ACO fire resistant kit for gully 218/ DN 110
Suitable for
- ACO hygienic gully 218
- Fixed height, vertical
- Telescopic, vertical
Description
- Fixed height, vertical
- Telescopic, vertical
- Made from 1.4404 (316) grade of stainless steel
- NBR
ACO fire resistant kit for gully 218/ DN 160
Suitable for
- ACO hygienic gully 218
- Fixed height, vertical
- Telescopic, vertical
Description
- Fixed height, vertical
- Telescopic, vertical
- Made from 1.4404 (316) grade of stainless steel
- NBR
Silt basket
Suitable for
- ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal
Description
Stainless steel
- 0,7 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal
Description
Stainless steel
- 0,7 litre capacity
- Material grade 1.4404 (316L)
Push-in foul air trap
Suitable for
- Gully body variant-CR 218
- DN 100
- Socket inclination: 1.5°
Description
- Plastic
- Weight: 0.2 kg
- Rabattgruppe: 3
Odour trap
Suitable for
- ACO hygienic gully 218
- Fixed height
- Telescopic
Description
- Height: 50 mm
- Material grade 1.4301 (304)
Odour trap
Suitable for
- ACO hygienic gully 218
- Fixed height
- Telescopic
Description
- Height: 50 mm
- Material grade 1.4404 (316L)
Standard foul air trap support
Suitable for
- ACO hygienic gully 218
- Telescopic
Description
NBR
Friction ring
Suitable for
- ACO hygienic gully 218
- Telescopic
Description
SBR
