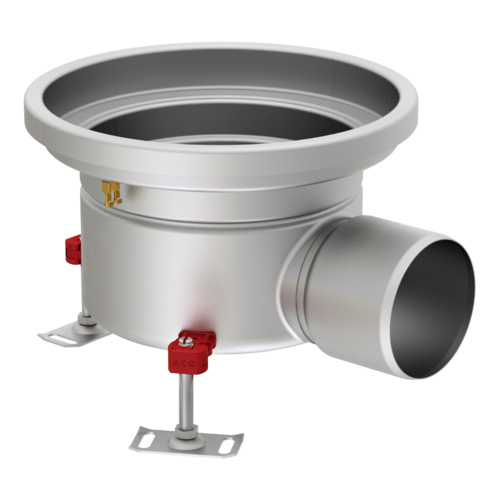

Fixed height with horizontal outlet - Round top
Product benefits
- Fully inspectable and cleanable
- Fully removable and easily cleanable stainless steel foul air trap (FAT)
- Full drainability
- Internal radii equal or larger than 3 mm
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Edge infill
- ACO protective cover available
- Fully pickled and passivated
Product information
- Certified according to EN 1253-1
- Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Adjustable EasyFix leveling feet
- Wide range of gratings for various load classes including slip resistant solutions
- Silt basket available as accessory

Gully tops for ACO hygienic gully 218 - telescopic

Raising pieces for ACO hygienic gully 218 - telescopic

ACO weldless ladder grating

ACO frameless ladder grating

ACO frameless ladder grating - Round

ACO hygienic ladder grating

ACO hygienic ladder grating - Round

ACO hygienic slot cover

ACO hygienic slot cover - Round

ACO perforated grating

ACO perforated grating - Round

ACO mesh grating

ACO quadrato grating

ACO heelsafe grating

ACO multi-slot 5 grating

ACO odour proof gully cover

ACO ladder grating

ACO perforated grating
ACO Easy FAT 218
Suitable for
- ACO gully 218, fixed height
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 416910 (1.4301)
- 416911 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.9 l/s
- Maximum flow rate with vertical gully: 5.6 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 1.3 kg
ACO Easy FAT 218
Suitable for
- ACO gully 218, fixed height
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 416910 (1.4301)
- 416911 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.9 l/s
- Maximum flow rate with vertical gully: 5.6 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 1.3 kg
ACO tundish portable
ACO tundish portable
ACO Easy FAT 218
Suitable for
- ACO gully 218, fixed height
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 5.8 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1.9 kg
ACO Easy FAT 218
Suitable for
- ACO gully 218, fixed height
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 5.8 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1.9 kg
ACO fire resistant kit for gully 218/ DN 110
ACO fire resistant kit for gully 218/ DN 160
Silt basket
Suitable for
- ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal
Description
Stainless steel
- 0,7 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal
Description
Stainless steel
- 0,7 litre capacity
- Material grade 1.4404 (316L)
Push-in foul air trap
Odour trap
Odour trap
