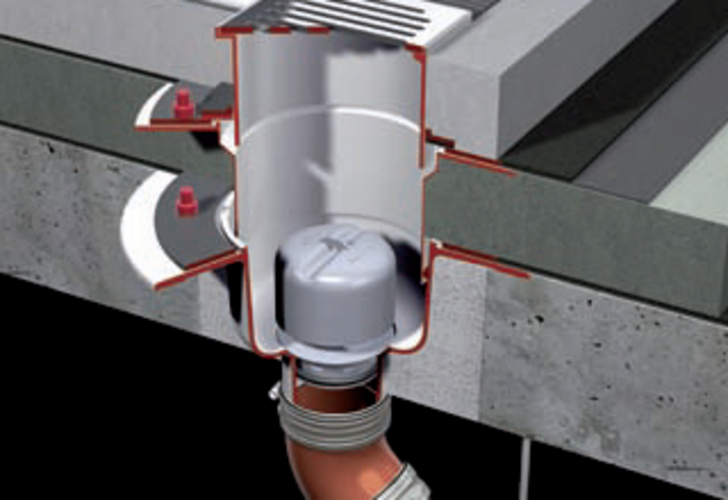

Gully body Wal-Selecta, DN 100 – socket inclination 90°

Product benefits

  • Building material class: A1
  • Tested and practical fire protection solutions
    • Minimum ceiling thickness – for Fit-in installation : 150 mm

Product information

Fire protection

Fire resistance class R 30 – R 120 tested as per Gen. Build. Sup.: Z-19.17-1527 for use of a fire protection bell foul air trap with heat shield.

Infobox

Note: The lateral inlet DN 50 is suitable for connections to a pipe of external diameter 48 – 54 mm

Note: When using the rubber sleeve 5162.15.25 you cannot connect to pipes of DN 50.

Without lateral inlet

Flange designOdour trapSurfaceFlow rateWeightItem

number
Remember
[l/s][kg]
ImageAdhesive bonding flangeWithoutPainted2.511.25187.10.00
ImageAdhesive bonding flangeWithoutCoated in white epoxy2.511.25187.60.00
ImageMechanical clamping flangeWithoutPainted2.515.45187.20.00
ImageMechanical clamping flangeWithoutCoated in white epoxy2.515.45187.70.00

With lateral inlet

Flange designOdour trapSurfaceFlow rateWeightItem

number
Remember
[l/s][kg]
ImageAdhesive bonding flangeWithoutPainted2.511.45187.14.00
ImageAdhesive bonding flangeWithoutCoated in white epoxy2.511.45187.64.00
ImageMechanical clamping flangeWithoutPainted2.515.65187.24.00
ImageMechanical clamping flangeWithoutCoated in white epoxy2.515.65187.74.00
Odour trapSurfaceFlow rateWeightItem

number
ImageAdhesive bonding flangeWithoutPainted2.5 l/s11.2 kg5187.10.00
ImageAdhesive bonding flangeWithoutCoated in white epoxy2.5 l/s11.2 kg5187.60.00
ImageMechanical clamping flangeWithoutPainted2.5 l/s15.4 kg5187.20.00
ImageMechanical clamping flangeWithoutCoated in white epoxy2.5 l/s15.4 kg5187.70.00
ImageAdhesive bonding flangeWithoutPainted2.5 l/s11.4 kg5187.14.00
ImageAdhesive bonding flangeWithoutCoated in white epoxy2.5 l/s11.4 kg5187.64.00
ImageMechanical clamping flangeWithoutPainted2.5 l/s15.6 kg5187.24.00
ImageMechanical clamping flangeWithoutCoated in white epoxy2.5 l/s15.6 kg5187.74.00

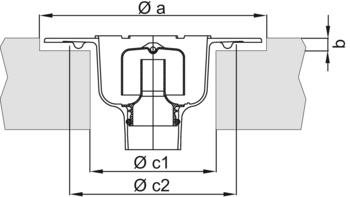

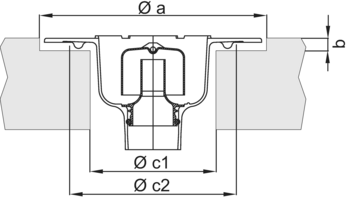

Nominal widthøaøbøc1øc2Item
number
[mm][mm][mm][mm]
DN 100450252503305187.10.00
DN 100450252503305187.60.00
DN 100450252503305187.20.00
DN 100450252503305187.70.00

Upper part

Suitable for
  • Gully bodies Wal-Selecta
    • DN 100
Description
  • Made of cast iron
  • Socket diameter 198 mm
  • Sealing ring
  • Not inflammable as for building material class A1
  • To seal the 2nd sealing membrane
  • With clamping flange
  • With seepage openings
  • Adjustable height: 45 – 100 mm
  • Painted
  • Weight: 10.9 kg

Upper part

Suitable for
  • Gully bodies Wal-Selecta
    • DN 100
Description
  • Made of cast iron
  • Socket diameter 198 mm
  • Sealing ring
  • Not inflammable as for building material class A1
  • To seal the 2nd sealing membrane
  • With clamping flange
  • With seepage openings
  • Adjustable height: 45 – 100 mm
  • Coated in white epoxy
  • Weight: 11.8 kg

Fit-In installation set

Suitable for
  • Gully bodies Wal-Selecta
    • DN 100
    • Socket inclination: 90°
    • Without lateral inlet
Description
  • Not inflammable as for building material class A1
  • For mortar free insertion in core bores: 350 mm
  • Dimensions Fit-In
    • Diameter: 340 mm
    • Height: 180 mm
  • With Gen. Build. Sup. Appr.: Z‑19.17‑1527
  • Weight: 7 kg

Extension part

Suitable for
  • All upper parts and top sections with a socket diameter: 198 mm
Description
  • Stainless steel, material grade 304
  • Extension to max. 110 mm
  • With sealing ring
  • Weight: 1.4 kg

Bell foul air trap

Suitable for
  • Gully bodies Wal-Selecta and CR Variant series
    • DN 100
    • Socket inclination: 90°
Description
  • With lip seal
  • Weight: 0.4 kg

Push-in foul air trap

Suitable for
  • Gully bodies Wal-Selecta
    • DN 100
    • Socket inclination: 1.5°
Description
  • With lip seal
  • Weight: 0.1 kg

Fire protection-bell foul air trap

Suitable for
  • Gully bodies Wal-Selecta and CR Variant series
    • DN 100
    • Socket inclination: 90°
Description
  • Fire protection bell foul air trap with moulded fire protection cartridge
  • Fire and smoke lock for retro-fitting fire protection equipment to gullies
  • With Gen. Build. Sup. Appr.: Z‑19.17‑1527
  • With lip seal
  • Weight: 0.6 kg

Replacement roller ring

Suitable for
  • Bell and push-fit foul air trap DN 100
    • 5086.10.15
    • 5086.30.15
  • Fire protection set DN 100
    • 5087.10.15
Description
  • Weight: 0.1 kg

Sealing ring

Suitable for
  • All top sections and upper parts have socket diameter 198 mm
  • Gully bodies Wal-Selecta and CR Variant series
    • DN 100
  • Finor
    • 2-piece
    • Made of stainless steel
Description
  • To seal the flow gap between gully body and top section
  • Weight: 0.1 kg

Connecting piece

Suitable for
  • Gully bodies Wal-Selecta
    • DN 100
Description
  • Made of cast iron
  • No seepage openings
  • With lateral inlet DN 50
  • Incl. rubber sleeves DN 50
  • For pipe diameter: 48 – 54 mm
  • Only together with gully body and clamping flange
  • Painted
  • Weight: 7.3 kg

Connecting piece

Suitable for
  • Gully bodies Wal-Selecta
    • DN 100
Description
  • Made of cast iron
  • No seepage openings
  • With lateral inlet DN 50
  • Incl. rubber sleeves DN 50
  • For pipe diameter: 48 – 54 mm
  • Only together with gully body and clamping flange
  • Coated in white epoxy
  • Weight: 7.3 kg

Sealing ring

Suitable for
  • Connecting pieces
    • 5089.84.00
    • 5089.85.00
Description
  • Diameter: 180 mm
  • Thickness: 12 mm
  • To seal the flow gap between connecting piece and top section
  • Sealing ring must be ordered separately
  • Weight: 0.1 kg

Socket DN 50

Suitable for
  • Gully bodies Wal-Selecta
    • DN 100
Description
  • Painted cast iron
  • With clamping flange
  • With vertical outlet
  • Incl. rubber sleeves DN 50
  • Weight: 3.8 kg

Socket DN 50

Suitable for
  • Gully bodies Wal-Selecta
    • DN 100
Description
  • Painted cast iron
  • With clamping flange
  • With horizontal outlet
  • Incl. rubber sleeves DN 50
  • Weight: 4.7 kg
