Top sections thin bed for gully body Wal-Selecta
Product information
- The top sections are available in a standard and in a long version
- Top sections with thin bed seals cover the following types of floor structures
- Type D: Floor structure with thin bed sealing
Infobox
Note: Top sections with slot widths ≤ 8 mm are suitable for barefoot areas.
Note: The top sections should be cut to size between the maximum and minimum adjustable heights depending on the version.
Note: It is possible to adjust the frame by 18 mm to fit the tile pattern using a sliding flange.
Standard type
Extended sockets

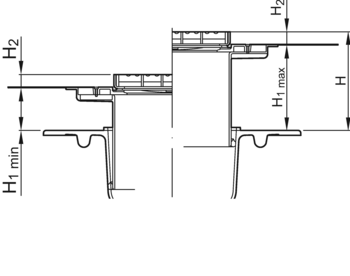

| With adhesive flange | With clamping flange min. H1 | H1 max. | Multi-step height adjustment H2 | Item number |
|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | |
| 30 | 46 | 120 | 8 / 11 | 5084.91.11 |
| 30 | 46 | 120 | 18 / 21 | 5084.97.00 |
| 30 | 46 | 240 | 8 / 11 | 5084.91.01 |
| 30 | 46 | 240 | 18 / 21 | 5084.97.01 |
Removable dirt trap
Description
- Weight: 0.3 kg
- Rabattgruppe: 3
Standard type
Extended sockets
| With adhesive flange | With clamping flange min. H1 | H1 max. | Multi-step height adjustment H2 | Item number |
|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | |
| 30 | 46 | 120 | 8 / 11 | 5084.91.11 |
| 30 | 46 | 120 | 18 / 21 | 5084.97.00 |
| 30 | 46 | 240 | 8 / 11 | 5084.91.01 |
| 30 | 46 | 240 | 18 / 21 | 5084.97.01 |
Removable dirt trap
Description
- Weight: 0.3 kg
- Rabattgruppe: 3
