Finor – cleaning ports two-part, M 125 cover with concrete filling


Product information

  • Painted cast iron
  • Conforms to DIN EN 1253-2
  • Odour and waterproof
  • Screw-down cover
  • Resists backflow up to 0.5 bar
  • Lower part with clamping flange
  • Socket inclination: 90°

Infobox

Note: Pipe connection according to German Standard DIN 19522 and EN 877.

ClassDescriptionNominal widthHeight-

adjustability
WeightItem

number
Remember
[mm][kg]
ImageM 125
  • Concrete-filled cover
DN 100100 – 13025.65289.22.34
DN 125100 – 13026.15289.22.35
DN 150100 – 13026.95289.22.36
ClassDescriptionNominal widthHeight-

adjustability
WeightItem

number
ImageM 125
  • Concrete-filled cover
DN 100100 – 130 mm25.6 kg5289.22.34
ImageM 125
  • Concrete-filled cover
DN 125100 – 130 mm26.1 kg5289.22.35
ImageM 125
  • Concrete-filled cover
DN 150100 – 130 mm26.9 kg5289.22.36

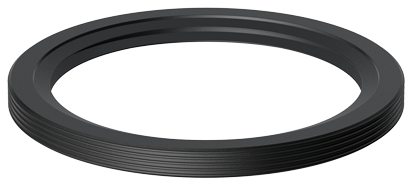

Lip seal ring

Suitable for
  • Jet flat roof gullies
    • DN 50
  • Upper part for Spin flat roof gullies
    • DN 70
  • 1-/2-piece flat roof/terrace Spin gullies DN 70 for ventilation pipe to be added during installation
    • SML-pipe DN 100 made from cast iron for grey water downpipes over roof, length as per DIN EN 12056 and DIN 1986‑100
Description
  • Diameter: 136 mm
  • Weight: 0.1 kg

Lip seal ring

Suitable for
  • Oberteil zu Flachdachabläufe Passavant Spin aus Gusseisen
    • DN 125/DN 150
  • Oberteil zu Flachdachabläufe Passavant Jet aus Gusseisen
    • DN 80
  • Staurohr für Notüberlauf
  • Finor 2-teilig aus Gusseisen
Description
  • Diameter: 186 mm
