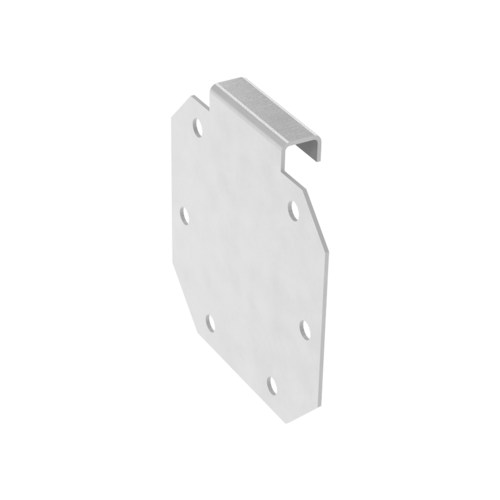

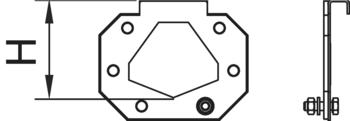

End cap
Product information
- Certified according to EN 1253-1 and EN 1433
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Steel thickness min. 1,5 mm
- Fully welded hygienic joints
- Fully pickled and passivated
- Edge infill
- V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
- Adjustable EasyFix levelling feet
- Anchors for fixing in concrete
- Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
- Silt basket available as accessory
- ACO protective cover available
- Hygienic design is not applied for this product.
ACO frameless ladder grating
ACO hygienic ladder grating
ACO hygienic slot cover
ACO mesh grating
ACO quadrato grating
ACO heelsafe grating
ACO multi-slot 5 grating
ACO odour proof gully cover
ACO tile grating
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
EasyFix stabilizing set
Suitable for
- ACO modular slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO hygienic and commercial box channels, widths 155, 180, 230 and 280 mm
- ACO vinyl box channels, width 170 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
Odour trap
Suitable for
- ACO slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
Description
- Height: 50 mm
- Material grade 1.4301 (304)
Odour trap
Suitable for
- ACO slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
Description
- Height: 50 mm
- Material grade 1.4404 (316L)
Foul air trap + silt basket (for outlet 110 mm)
Suitable for
- ACO slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
Description
- Height: 50 mm
- Material grade 1.4301 (304)
Foul air trap + silt basket (for outlet 110 mm)
Suitable for
- ACO slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
Description
- Height: 50 mm
- Material grade 1.4404 (316L)
