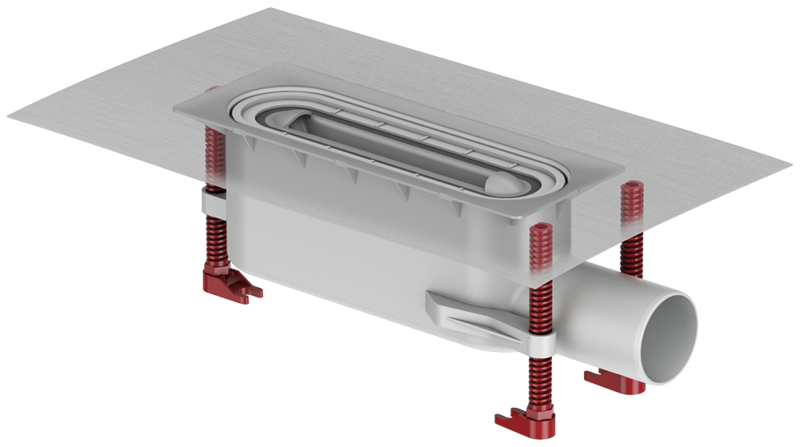

Floordrain for ACO ShowerDrain S+

Product benefits

  • Preassembled sealing membrane
  • Corresponding according W3-I according to German Standard DIN 18534
  • Compliant with noise protection DIN 4109 and VDI 4100

Product information

  • Made of plastic
  • Product class A (DIN EN 1253-1)
  • Drain socket suitable for all push fit pipe socket systems
  • Socket type: ND 50, inclination 1,5°
  • Foul air trap: 2-part, removeable
  • With pre-assembled sealing membrane
    • For optimum connection of a compound sealing
    • 60 mm overlap
    • Corresponding acc. tensile test of EN 1253-1
  • With secondary drainage
  • With mounting set and protective cover

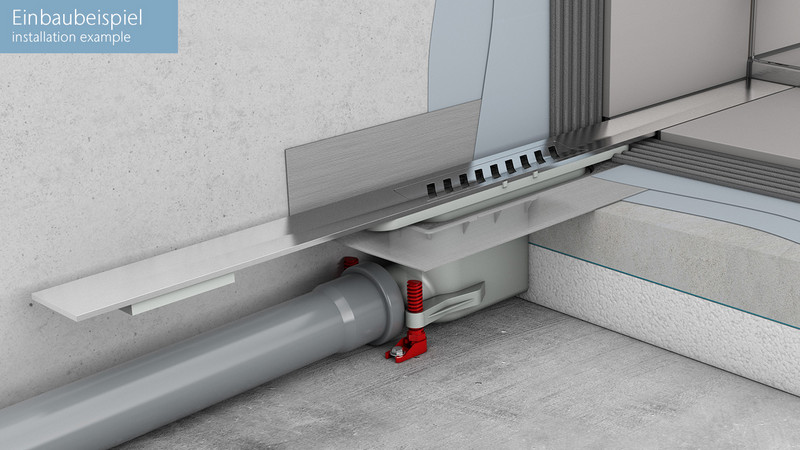

  • Assembly: Modular system consisting of shower channel profile and floor drain

Flowrate depending on grating and floor drain:

Design Stripes:

  • Floor drain S+ with water trap 50 mm (DIN EN 1253-1)
    • 0,8 l/s with 20 mm build up
    • 0,7 l/s with 10 mm build up
  • Floor drain S+ with water trap 30 mm
    • 0,6 l/s with 20 mm build up
    • 0,4 l/s with 10 mm build up

Design Plate:

  • Floor drain S+ with water trap 50 mm (DIN EN 1253-1)
    • 0,6 l/s with 20 mm build up
    • 0,5 l/s with 10 mm build up
  • Floor drain S+ with water trap 30 mm
    • 0,5 l/s with 20 mm build up
    • 0,4 l/s with 10 mm build up

Infobox

Note: Please order shower channel profile S+ separately

Odour trap

Suitable for
  • ACO ShowerDrain S +
    • Floordrain
Description

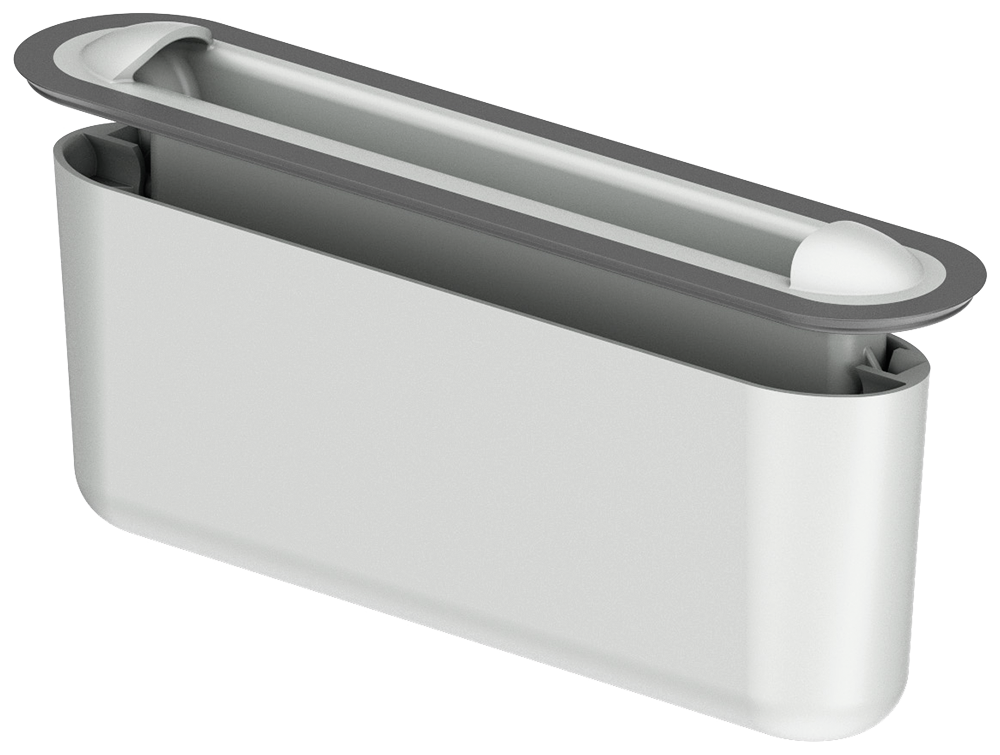

  • ACO ShowerDrain S + odor trap
    • Replacement part
    • Two-part and removable
    • Made of plastic
  • With water trap 50 mm

Odour trap

Suitable for
  • ACO ShowerDrain S +
    • Floordrain
Description

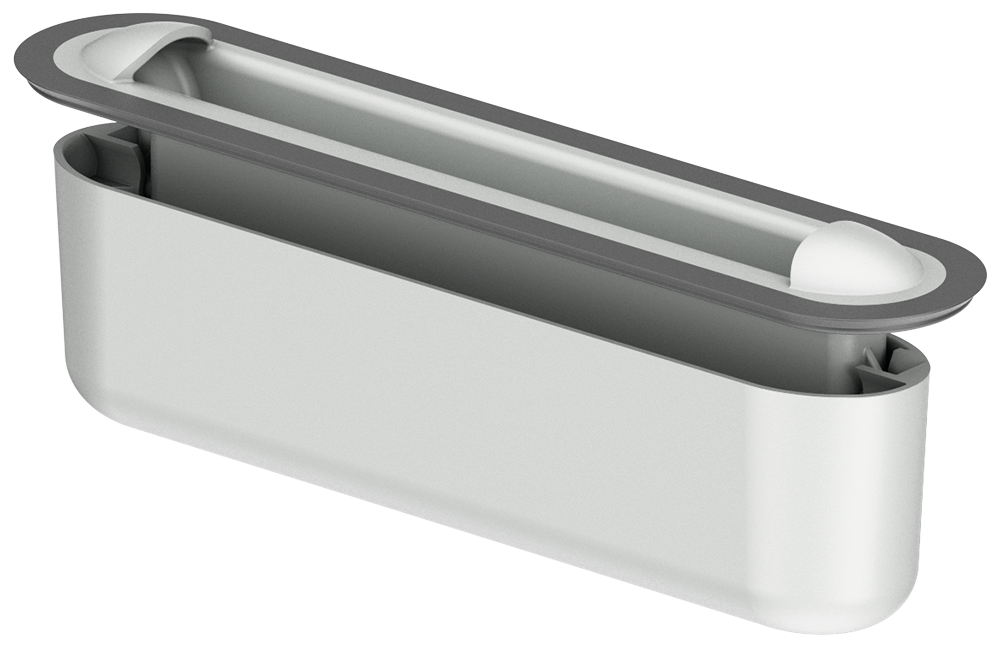

  • ACO ShowerDrain S + odor trap
    • Replacement part
    • Two-part and removable
    • Made of plastic
  • With water trap 30 mm
