ACO ShowerDrain S+, Shower channel profile

Product benefits

Unique minimalist design
Electro-polished surface for a lasting high-quality appearance

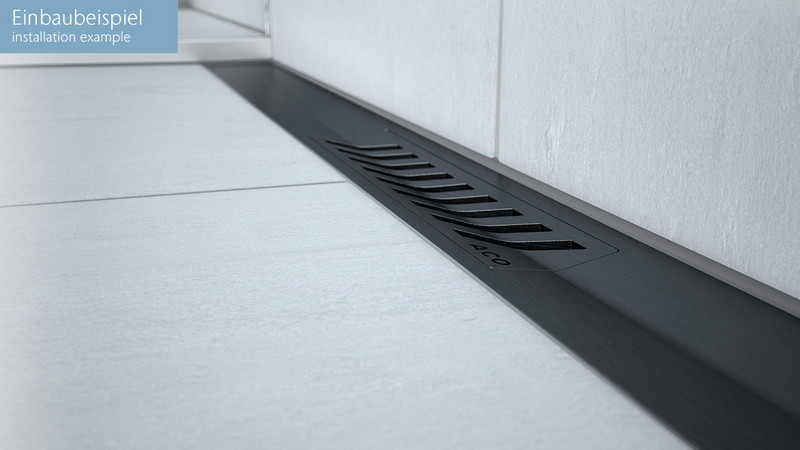

Installation of shower channel profile with tile height < 10 mm without shortening work
Alignment support for installation

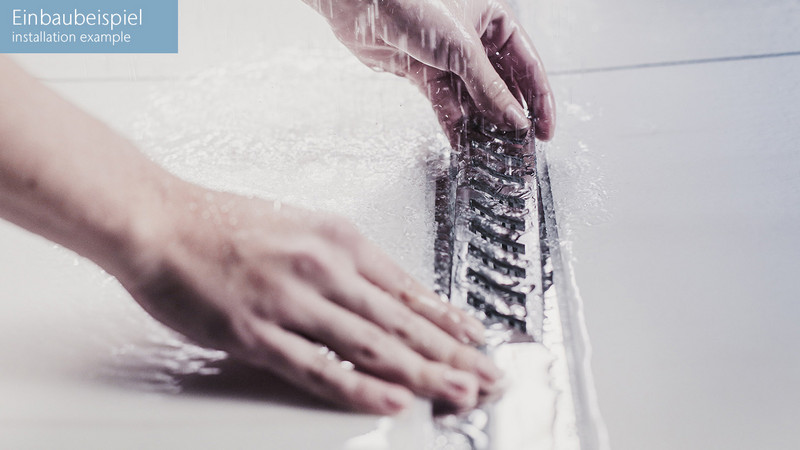

Toolless grate removal through tip&flipp function
Compliant with noise protection DIN 4109 and VDI 4100

Product information

Material: Stainless steel, grade 304
- Surface: Electropolished
- Surface: electropolished, PVD-coated (Black)
Load class K3 (compliant with DIN EN 1253-1)
Profile width: 55 mm
Shower profile with longitudinal and transverse gradient
Profile length can be shortened by 80 mm on site

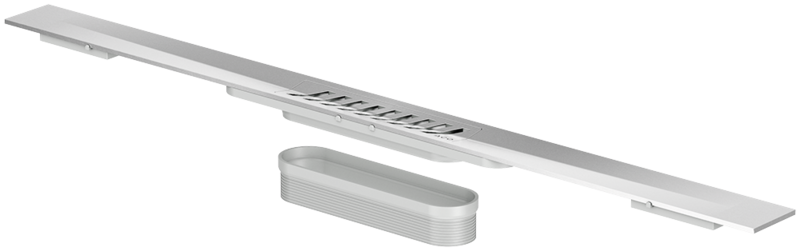

Scope of delivery: Profile with design grating, hair strainer and extension (extension for tile heights from 15 - 35 mm OKE)
Assembly: Modular system consisting of shower channel profile and floor drain

Flowrate depending on grating and floor drain:

Design profil Stripes:

Floor drain S+ with water trap 50 mm (DIN EN 1253-1)
- 0,8 l/s with 20 mm build up
- 0,7 l/s with 10 mm build up
Floor drain S+ with water trap 30 mm
- 0,6 l/s with 20 mm build up
- 0,4 l/s with 10 mm build up

Design profil Plate:

Floor drain S+ with water trap 50 mm (DIN EN 1253-1)
- 0,6 l/s with 20 mm build up
- 0,5 l/s with 10 mm build up
Floor drain S+ with water trap 30 mm
- 0,5 l/s with 20 mm build up
- 0,4 l/s with 10 mm build up

Infobox

Note: Please order floor drain S+ separately

		Dimensions			Item number		Downloads	Remember
		L1	B	H
		[mm]	[mm]	[mm]
		800	55	12	9010.51.01	6
		900	55	12	9010.51.02	6
		1000	55	12	9010.51.03	6
		1200	55	12	9010.51.04	6

		Dimensions			Item number		Downloads	Remember
		L1	B	H
		[mm]	[mm]	[mm]
		800	55	12	9010.51.41	6
		900	55	12	9010.51.42	6
		1000	55	12	9010.51.43	6
		1200	55	12	9010.51.44	6

		Dimensions			Item number	Downloads	Remember
		L1	B	H
		[mm]	[mm]	[mm]
		800	55	12	9010.51.11
		900	55	12	9010.51.12
		1000	55	12	9010.51.13
		1200	55	12	9010.51.14

		Dimensions			Item number	Downloads	Remember
		L1	B	H
		[mm]	[mm]	[mm]
		800	55	12	9010.51.51
		900	55	12	9010.51.52
		1000	55	12	9010.51.53
		1200	55	12	9010.51.54

	Dimensions			Item number
	L1	B	H	Item number

	800 mm	55 mm	12 mm	9010.51.01
	900 mm	55 mm	12 mm	9010.51.02
	1000 mm	55 mm	12 mm	9010.51.03
	1200 mm	55 mm	12 mm	9010.51.04

	800 mm	55 mm	12 mm	9010.51.41
	900 mm	55 mm	12 mm	9010.51.42
	1000 mm	55 mm	12 mm	9010.51.43
	1200 mm	55 mm	12 mm	9010.51.44

	800 mm	55 mm	12 mm	9010.51.11
	900 mm	55 mm	12 mm	9010.51.12
	1000 mm	55 mm	12 mm	9010.51.13
	1200 mm	55 mm	12 mm	9010.51.14

	800 mm	55 mm	12 mm	9010.51.51
	900 mm	55 mm	12 mm	9010.51.52
	1000 mm	55 mm	12 mm	9010.51.53
	1200 mm	55 mm	12 mm	9010.51.54

Floordrain for ACO ShowerDrain S+

ACO ShowerStep – difference wedge

ACO ShowerStep – difference wedge

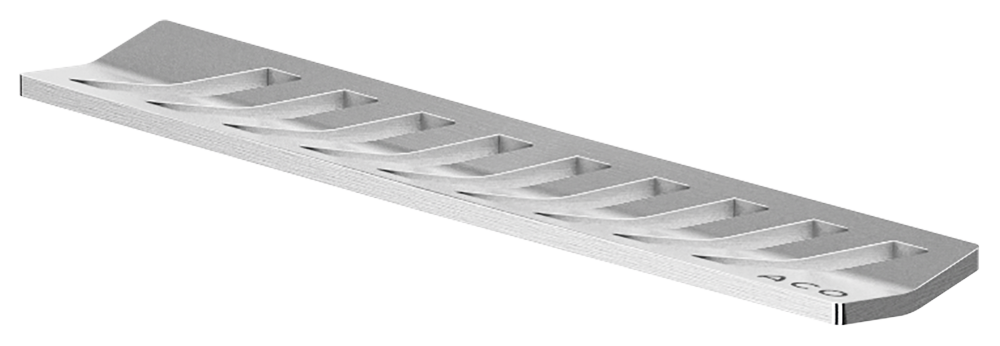

grating: Stripe

Suitable for

ACO ShowerDrain S+
- Shower channel profile

Description

ACO ShowerDrain S + grating
- Replacement part
- Stripes 190 x 40 mm

Item no.
9010.51.30

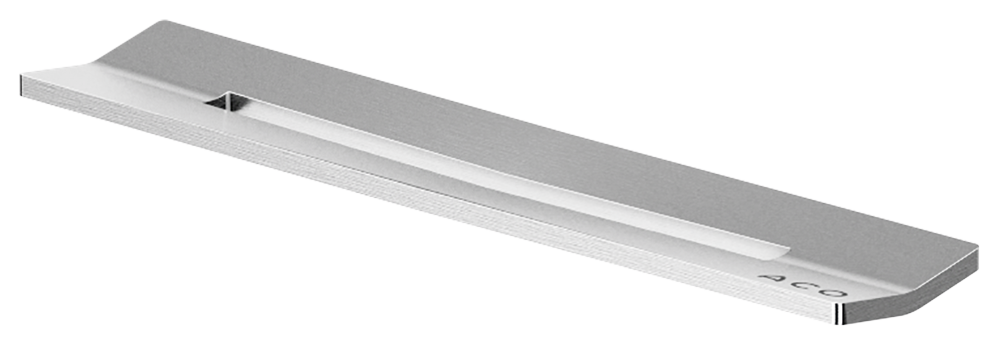

grating: Plate

Suitable for

ACO ShowerDrain S+
- Shower channel profile

Description

ACO ShowerDrain S + grating
- Replacement part
- Plate 190 x 40 mm

Item no.
9010.51.32

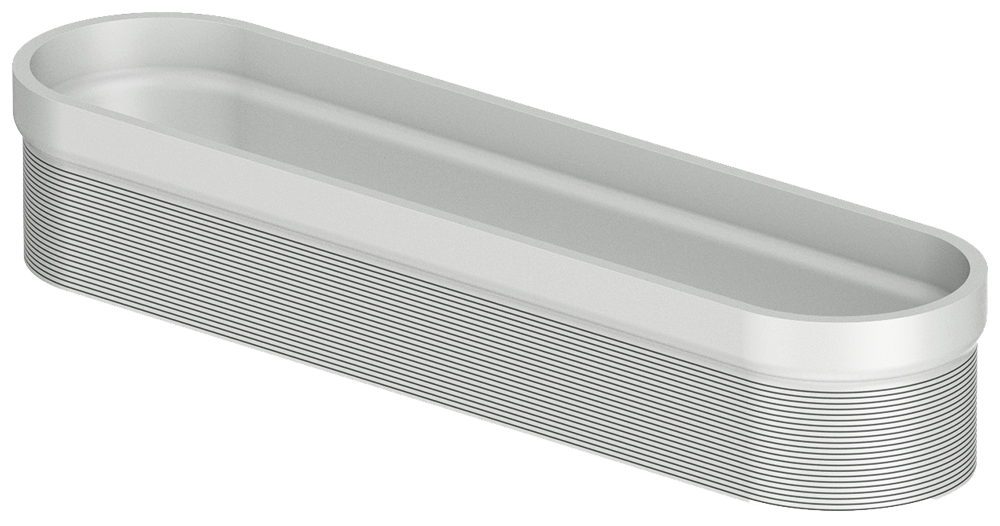

Extension

Suitable for

ACO ShowerDrain S+
- Shower channel profile

Description

ACO ShowerDrain S + extension
- Up to max. 35 mm tile thickness

Item no.
9010.51.29

Odour trap

Suitable for

ACO ShowerDrain S +
- Floordrain

Description

ACO ShowerDrain S + odor trap
- Replacement odor trap
- Two-part and removable
- Made of plastic
With water trap 50 mm

Item no.
9010.51.27

Odour trap

Suitable for

ACO ShowerDrain S +
- Floordrain

Description

ACO ShowerDrain S + odor trap
- Replacement odor trap
- Two-part and removable
- Made of plastic
With water trap 30 mm

Item no.
9010.51.28
