Gully Bodies For ACO Showerdrain E Fire Protection 288706

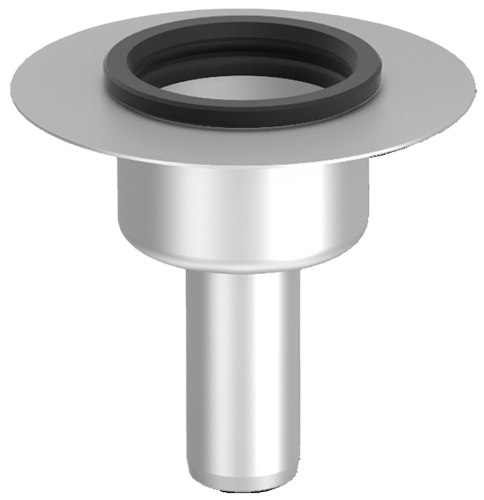

Gully bodies for ACO ShowerDrain E+ (fire protection)

Product benefits

  • Fire resistance class
    • R 30 – R 120 without Fit-in
    • R 30 – R 120 with Fit-in
  • General national technical approval abZ: Z-19.17-2181
  • Assembly: ready to install
Contact
Downloads

Fire protection

Fire resistance class R 30 – R 120 without Fit-In and R 30 – R 90 with Fit-in. Approval has been applied for.
DescriptionItem

number		Remember
  • Bell-shaped odour seal
  • DN 50
  • Water seal height: 50 mm
9010.77.486
  • With Fit-in installation unit
  • Bell-shaped odour seal
  • DN 50
  • Water seal height: 50 mm
9010.77.496
DescriptionItem

number
  • Bell-shaped odour seal
  • DN 50
  • Water seal height: 50 mm
9010.77.48
  • With Fit-in installation unit
  • Bell-shaped odour seal
  • DN 50
  • Water seal height: 50 mm
9010.77.49
Fire protection shower channels | Channels, gratings and covers

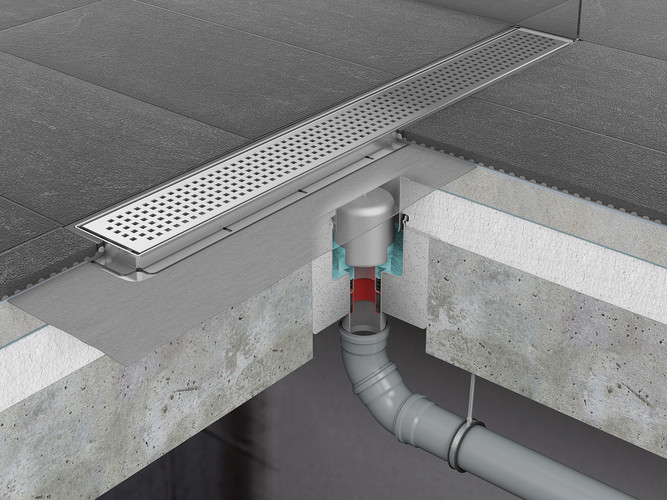

Fire protection-channel body ACO ShowerDrain E+, Installation height top edge screed: 53/56 – 97 mm (DIN EN 1253‑1)
