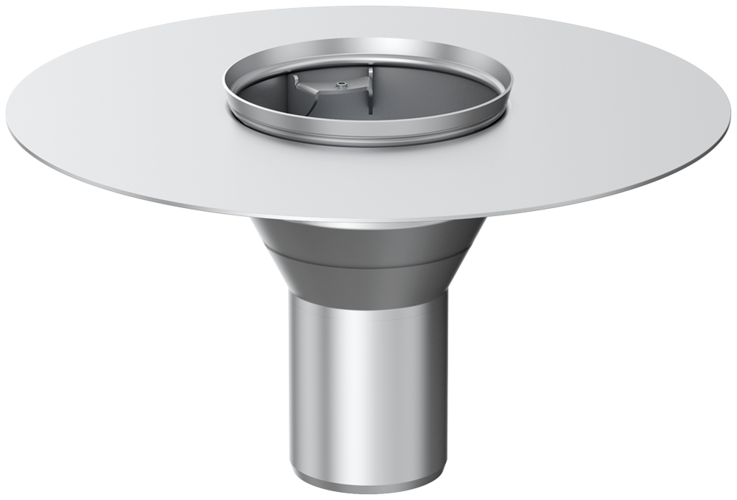

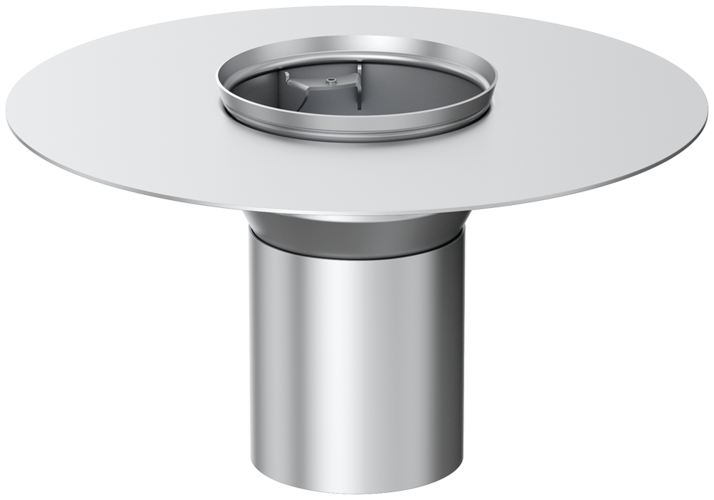

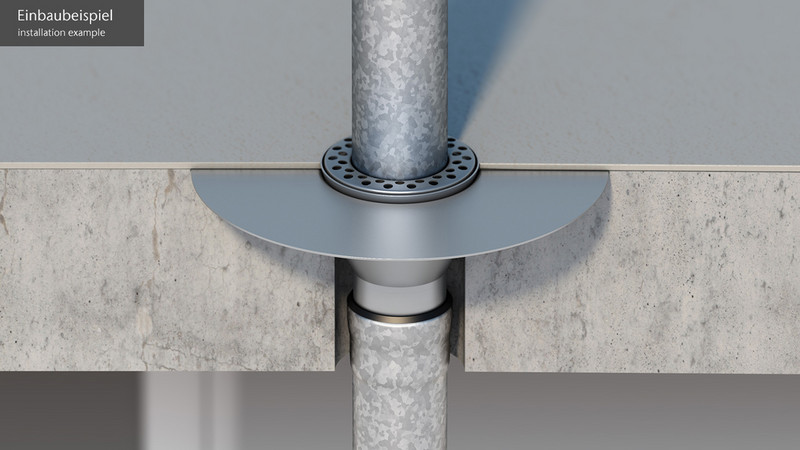

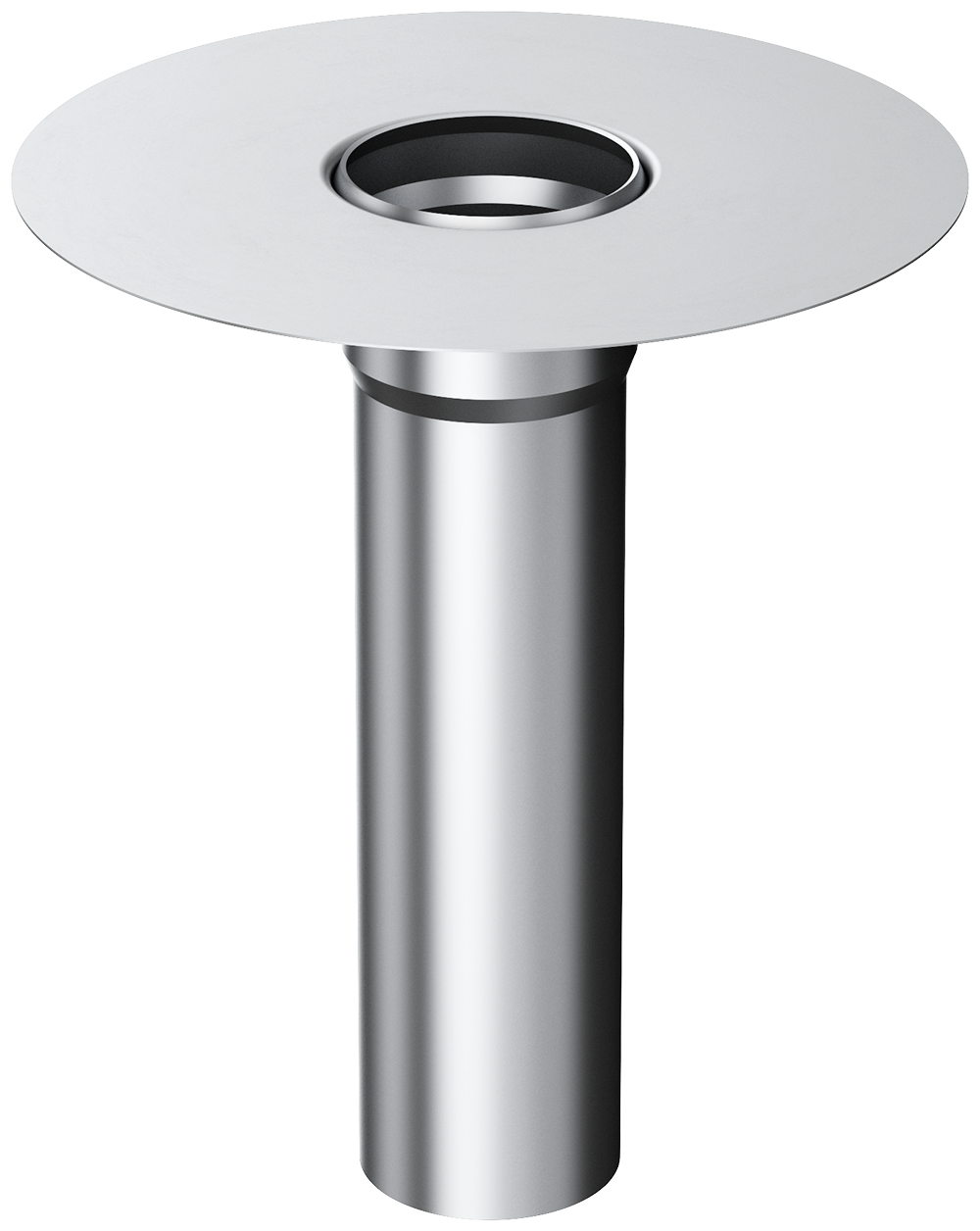

Gully body ACO balcony drain with/without bell
Infobox
Balcony drains with upstand on request.

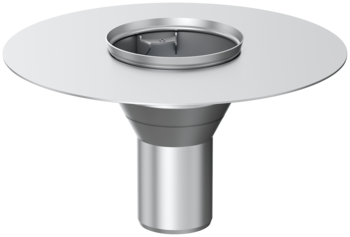

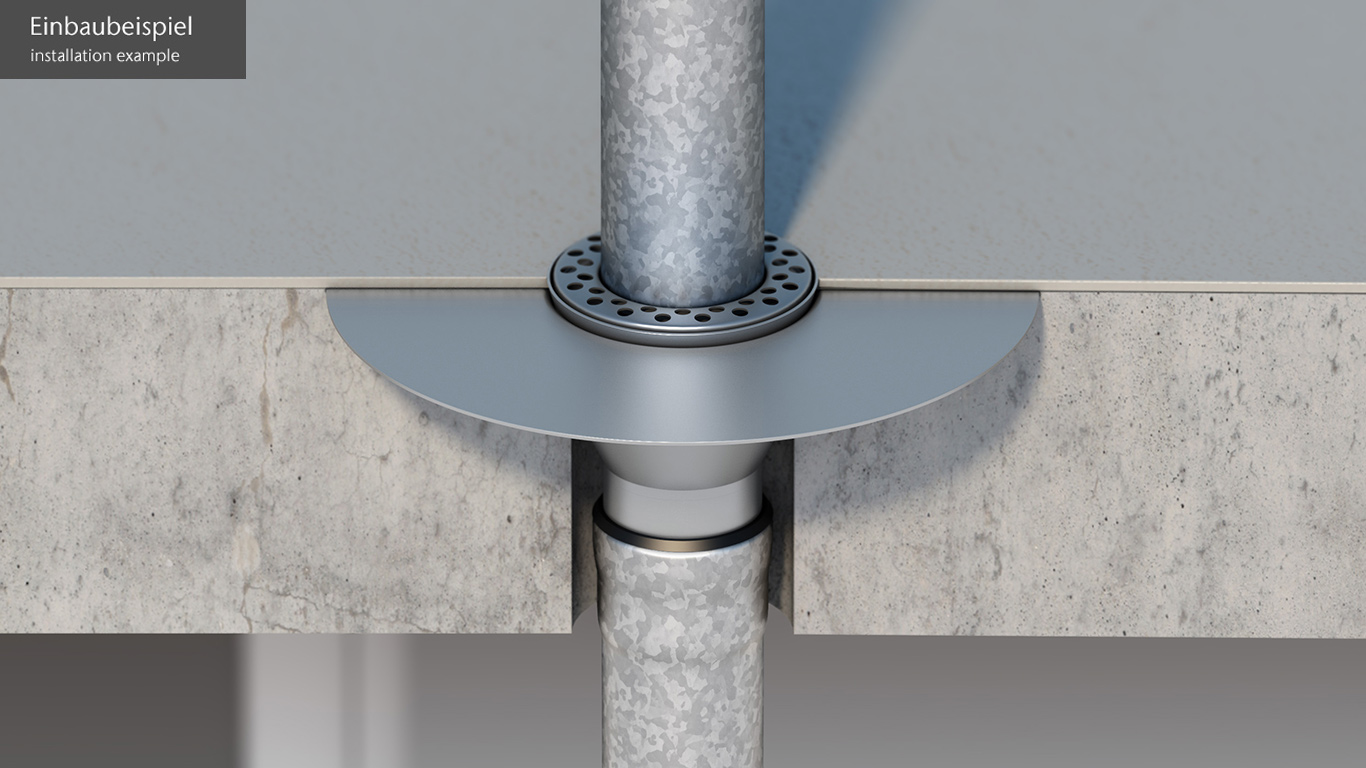

Version: without formwork bell
| Nominal width | Socket inclination | Dimensions | Item number | Downloads | Remember | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| d1 | d3 | d4 | l2 | |||||||
| [mm] | [mm] | [mm] | [mm] | |||||||
 | DN 50 | 90° | 53 | 117 | 302 | 200 | 0174.58.00 | 13 | ||
| DN 70 | 90° | 73 | 117 | 325 | 200 | 0174.58.01 | 13 | |||
| DN 100 | 90° | 102 | 140 | 350 | 200 | 0174.58.02 | 13 | |||

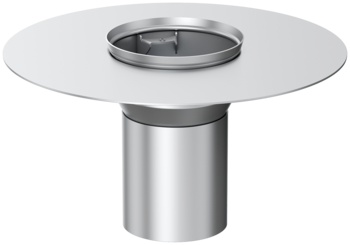

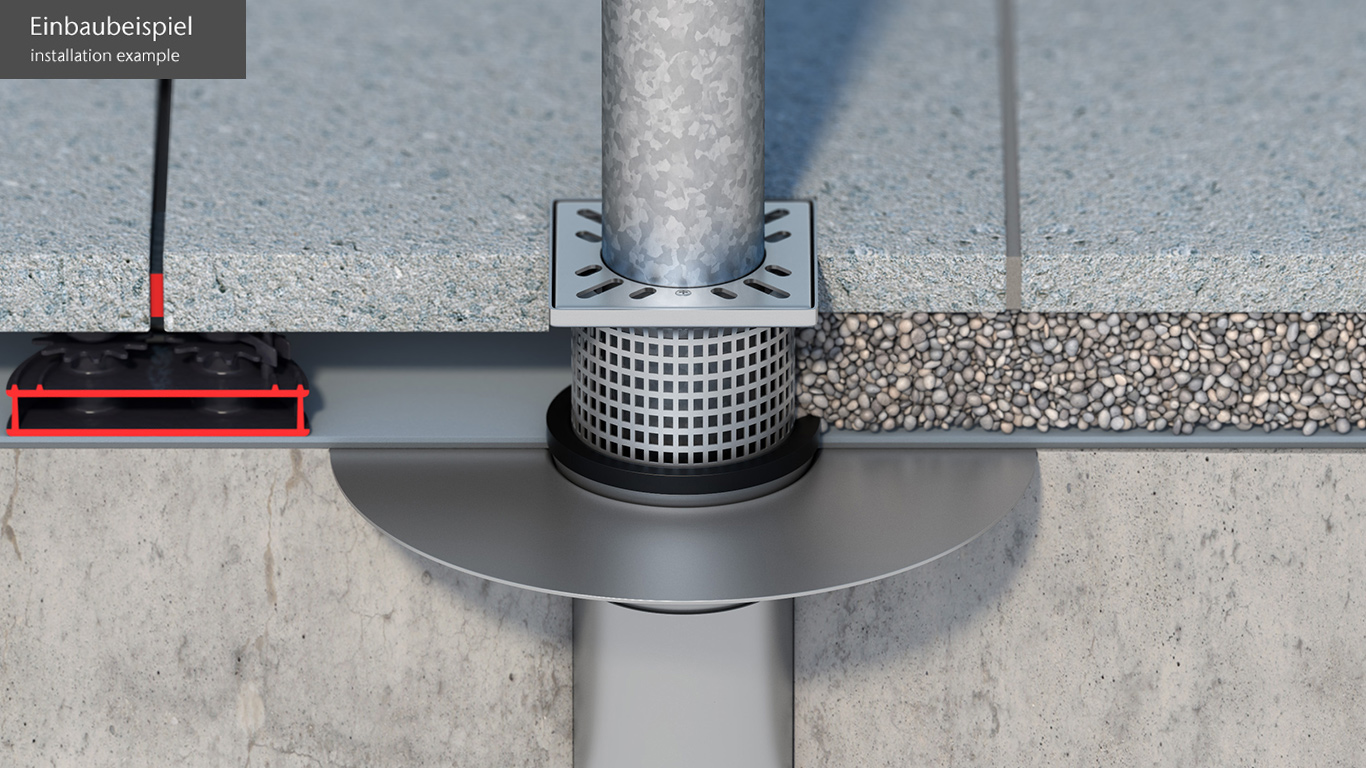

Version: With bell
| Art. Nr.: | Nennweite | Mit Sieb | Mit Ringsiebieb/GM-X Rohr | Mit Rostaufnahme und Rost | Mit Rostaufnahme und Rost/GM-X Rohr | ||||||||
| Anstauhöhe 15mm | Anstauhöhe 25mm | Anstauhöhe 35mm | Anstauhöhe 15mm | Anstauhöhe 25mm | Anstauhöhe 35mm | Anstauhöhe 15mm | Anstauhöhe 25mm | Anstauhöhe 35mm | Anstauhöhe 15mm | Anstauhöhe 25mm | Anstauhöhe 35mm | ||
| l/s | l/s | l/s | l/s | l/s | l/s | l/s | l/s | l/s | l/s | l/s | l/s | ||
| 0174.58.00 | DN 50 | 1,5 | 3,5 | 6,0 | 0,8 | 1,0 | 1,1 | 1,0 | 2,8 | 5,0 | 0,7 | 1,0 | 1,1 |
| 0174.58.01 | DN 70 | 1,5 | 2,5 | 5,5 | 0,9 | 1,1 | 1,3 | 1,0 | 3,0 | 5,0 | 0,8 | 1,0 | 1,2 |
| 0174.58.02 | DN 100 | 2,0 | 4,2 | 7,0 | 0,9 | 1,1 | 1,5 | 1,5 | 3,0 | 5,0 | 1,0 | 1,1 | 1,4 |
Grating holder
Description
- Made of plastic
- Weight: 0.2 kg
- Rabattgruppe: 13
Grating holder
Description
- Made of plastic
- Weight: 0.2 kg
- Rabattgruppe: 13
Grating holder
Description
- Stainless steel, material grade 304
- With plastic coating
- Weight: 0.8 kg
- Rabattgruppe: 13
Grating holder
Description
- Stainless steel, material grade 304
- With plastic coating
- Weight: 1.1 kg
- Rabattgruppe: 13
Grating holder
Description
- Stainless steel, material grade 304
- With strainer perforations
- Weight: 0.7 kg
- Rabattgruppe: 13
Grating holder
Description
- Stainless steel, material grade 304
- With strainer perforations
- Weight: 0.6 kg
- Rabattgruppe: 13
Casing bell
Description
- Made of plastic (PE)
- Can be pushed on
- DN 50
- Weight: 0.1 kg
- Rabattgruppe: 13
Casing bell
Description
- Made of plastic (PE)
- Can be pushed on
- DN 70
- Weight: 0.2 kg
- Rabattgruppe: 13
Casing bell
Description
- Made of plastic (PE)
- Can be pushed on
- DN 100
- Weight: 0.2 kg
- Rabattgruppe: 13

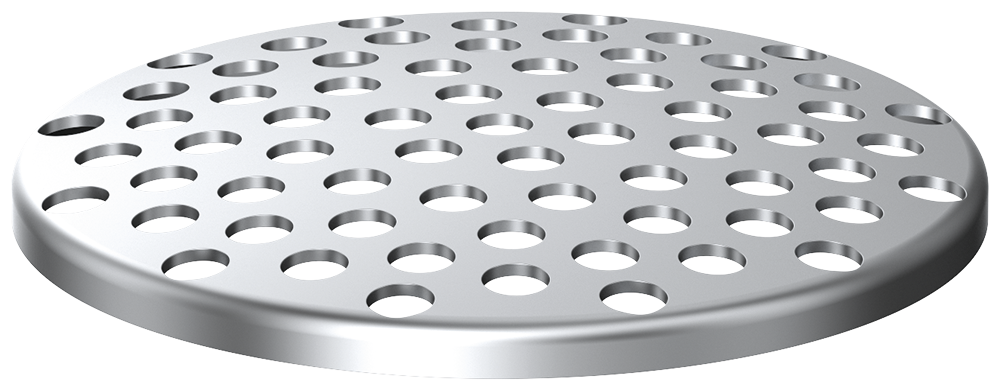

Strainer
Suitable for
- Balcony and terrace gullies
- Direct gully with supporting flange and with bell
Description
- Made of stainless steel
- DN 70
- h = 11 mm
- d = 117 mm
- Weight: 0.1 kg
- Rabattgruppe: 13
Strainer
Suitable for
- Balcony and terrace gullies
- Direct gully with supporting flange and with bell
Description
- Made of stainless steel
- DN 100
- h = 8 mm
- d = 141 mm
- Weight: 0.2 kg
- Rabattgruppe: 13
Ring strainer
Suitable for
- Balcony and terrace gullies
- Direct balcony drain with supporting edge
Description
- Made of stainless steel
- DN 50
- h = 9 mm
- d = 98 mm
- d1 = 55 mm
- Weight: 0.1 kg
Ring strainer
Suitable for
- Balcony and terrace gullies
- With/without bell, with compression seal flange
- With adhesive flange
Description
- Made of stainless steel
- Weight: 0.1 kg
- Rabattgruppe: 13
Ring strainer
Suitable for
- Balcony and terrace gullies
- With/without bell, with compression seal flange
- With supporting edge
- With adhesive flange
Description
- Made of stainless steel
- DN 70
- h = 12 mm
- d = 118 mm
- d1 = 76 mm
- Weight: 0.1 kg
- Rabattgruppe: 13
Ring strainer
Description
- Made of stainless steel
- DN 100
- h = 10 mm
- d = 141 mm
- d1 = 103 mm
- Weight: 0.1 kg
- Rabattgruppe: 13
Grating
Suitable for
- Grating holders DN 50/DN 70
- 0174.58.61, 0174.58.62, 0174.58.63
Description
- Stainless steel, material grade 304
- Grating dimensions (R): 117 x 117 mm
- Weight: 0.2 kg
- Rabattgruppe: 13
Grating
Suitable for
- Grating holder DN 100
- 0174.58.71, 0174.58.72, 0174.58.73
Description
- Stainless steel, material grade 304
- Grating dimensions (R): 142 x 142 mm
- Weight: 0.3 kg
- Rabattgruppe: 13
Grating
Description
- Weight: 0.2 kg
- Rabattgruppe: 13
Bottom section
Description
- Rabattgruppe: 13
Bottom section
Description
- Rabattgruppe: 13
Bottom section
Description
- Rabattgruppe: 13

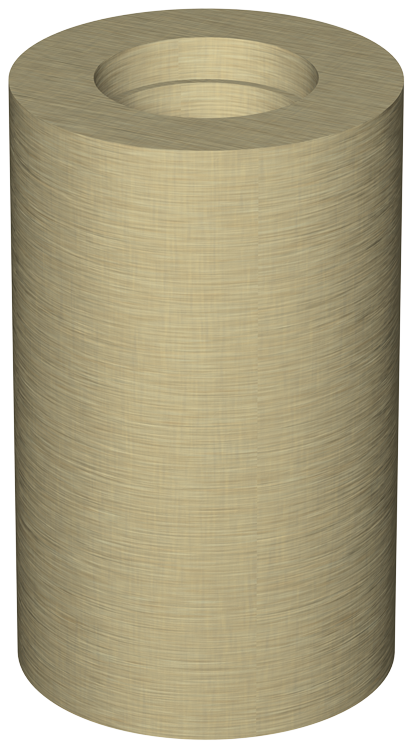

Insulation casing
Description
- Rabattgruppe: 13
Insulation casing
Description
- Rabattgruppe: 13
Insulation casing
Description
- Rabattgruppe: 13
Grating
Suitable for
- Grating holders DN 70
- 0174.58.61, 0174.58.62, 0174.58.63
Description
- Stainless steel, material grade 304
- Grating dimensions (R): 117 x 117 mm
- Weight: 0.2 kg
- Rabattgruppe: 13
Grating
Suitable for
- Grating holder DN 100
- 0174.58.71, 0174.58.72, 0174.58.73
Description
- Stainless steel, material grade 304
- Grating dimensions (R): 142 x 142 mm
- Weight: 0.2 kg
- Rabattgruppe: 13
Strainer pipe
Description
- Stainless steel, material grade 304
- Shape: round
- Including sealing element
- Weight: 0.8 kg
- Rabattgruppe: 13
Strainer pipe
Description
- Stainless steel, material grade 304
- Shape: round
- Including sealing element
- Weight: 0.9 kg
- Rabattgruppe: 13
Flange seal set
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
- Flat roof gullies Jet made of cast iron
- DN 50
Description
- Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
- Thickness: 4 mm
- EPDM
- Weight: 0.4 kg
- Rabattgruppe: 1
Flange seal set
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
- Flat roof gullies Jet made of cast iron
- DN 50
Description
- Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
- Thickness: 4 mm
- PVC-weich
- Weight: 0.4 kg
- Rabattgruppe: 1
Flange seal set
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
- Flat roof gullies Jet made of cast iron
- DN 50
Description
- Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
- Thickness: 4 mm
- NBR/SBR
- Weight: 0.5 kg
- Rabattgruppe: 1
