Lipumax G-DA

Product benefits

  • Simple to install, requires less space
  • Top section with odour proof sealed cover
  • Integrated connection for sampling device
  • Including rubber seal ring for connection with cover plate
Contact
Downloads

Product information

  • Tank made of glass reinforced plastic
  • With integrated sludge trap
  • One-piece construction
  • Inner parts made of PEHD
Nominal sizeInlet/outlet

DN/OD		ContentsWeightItem

number		Remember
Sludge trapMax. sludge layerGrease storeMax. oil layerTotal capacity
[l][mm][l][mm][l][kg]
2 NS11020016219030058013112502.46
400330190300843146.512509.46
4 NS160400305190300804151.512503.46
800438290300145516712510.46
7 NS160700368290300145516712504.46
14004484002452702237.512511.46
10 NS1601000314400245222521712505.46
2000596400245322422312512.46
15 NS2001500325930385333231212515.46
3000619930385483438312513.46
20 NS20020004239303853841342.512517.46
4000816930385583941312516.46
25 NS250250056011203205820492.512518.46
50009111120320848141312514.46
Nominal sizeInlet/outlet

DN/OD		ContentsWeightItem

number
Sludge trapMax. sludge layerMax. oil layerTotal capacity
2 NS110200 l162 mm300 mm580 l131 kg12502.46
2 NS110400 l330 mm300 mm843 l146.5 kg12509.46
4 NS160400 l305 mm300 mm804 l151.5 kg12503.46
4 NS160800 l438 mm300 mm1455 l167 kg12510.46
7 NS160700 l368 mm300 mm1455 l167 kg12504.46
7 NS1601400 l448 mm245 mm2702 l237.5 kg12511.46
10 NS1601000 l314 mm245 mm2225 l217 kg12505.46
10 NS1602000 l596 mm245 mm3224 l223 kg12512.46
15 NS2001500 l325 mm385 mm3332 l312 kg12515.46
15 NS2003000 l619 mm385 mm4834 l383 kg12513.46
20 NS2002000 l423 mm385 mm3841 l342.5 kg12517.46
20 NS2004000 l816 mm385 mm5839 l413 kg12516.46
25 NS2502500 l560 mm320 mm5820 l492.5 kg12518.46
25 NS2505000 l911 mm320 mm8481 l413 kg12514.46
Item

number		Nominal sizeDimensions

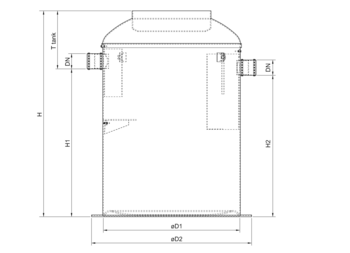

H1H2D1D2HT tankInlet/outlet difference
[mm][mm][mm][mm][mm][mm][mm]
12502.462 NS845775100012461290445110
12509.462 NS11801110100012461625445110
12503.464 NS11301060100012461625495160
12510.464 NS13951325120014341930535160
12504.467 NS13951325120014341930535160
12511.467 NS16301560150017592265635160
12505.4610 NS13601290150017591995635160
12512.4610 NS19251855150017592560635200
12515.4615 NS14101340180020142255845200
12513.4615 NS20001930180020142845845200
12517.4620 NS16101540180020142455845200
12516.4620 NS23952325180020143240845200
12518.4625 NS17451675220024552540795250
12514.4625 NS24452375220024553240795250

Lipumax G-B (Basic version)

  • Disposal and cleaning by opening the cover (associated with the formation of noxious smells)
Lipumax G-B

Lipumax G-D (Extension stage 1)

  • Odour-free disposal via a connector to direct suction
  • After-cleaning by opening the cover (associated with the slight formation of noxious smells)
  • Disposal connection DN65 (flange 75)
Lipumax G-D

Lipumax G-DM (Extension stage 2)

  • Manual odour-free disposal/cleaning via direct suction and hydro-mechanic high-pressure inner cleaning
  • Disposal connection DN65 (flange 75)
  • Filling device with ball valve for re-filling with fresh water
  • Hydro-mechanic inner cleaning via high-pressure pump and spray head
Lipumax G-DM

Lipumax G-DA (Extension stage 3)

  • Programmed, odour-free disposal/cleaning via direct suction and hydro-mechanic high-pressure inner cleaning
  • Disposal connection DN65 (flange 75)
  • Filling device with soleniod valve for re-filling with fresh water
  • Hydro-mechanic inner cleaning via high-pressure pump and spray head
Top section for PE or GRP shafts (600)

Top section for PE or GRP shafts (600)

Sampling units

Sampling units

Control unit GA 1 + one sensor GA - SG1

Suitable for

GA-1 is an alarm device specially designed for grease separators. They indicate when it is time to empty the grease separator and thus prevents harmful grease emissions to the sewer system.

Description
  • Dimensions: 125 mm x 75 mm x 35 mm (L x H x D
  • Material: Polycarbonate
  • Enclosure: IP65
  • Operation temperature: -30 °C...+50 °C
    • Supply voltage: 230 VAC ± 10 %, 50/60 Hz
    • The device is not equipped with a mains switch
    • Power consumption: GA-1: 5 VA, GA-2: 5 VA
    • Sensors: 1 or 2 GA-SG1 sensors
    • Relay outputs: Potential-free relay output 250 V, 5 A
    • 1 pcs for GA-1 Operational delay 10 sec. Relay de-energize
    • 2 pcs for GA-2 at trigger point.
    • Electrical safety: IEC/EN 61010-1, Class II , CAT II
    • EMC: IEC/EN 61000-6-3 (Emission)
    • IEC/EN 61000-6-1 (Immunity)
Item no.
418563

Control unit GA 2 + two senzors GA - SG1

Suitable for

GA-2 is an alarm device for monitoring the thickness of the grease layer accumulating in a grease interceptor and the blocking of the interceptor. The system consists of a GA-2 control unit, two GA-SG1 sensors and a cable joint.

Description
  • Dimensions 125 mm x 75 mm x 35 mm (L x H x D)
  • Package 1,2 kg (control unit + 2 sensors + cable joint)
  • Enclosure IP 65, material polycarbonate
  • Cable glands adjustment range 6-10 mm
  • Operation temperature -30 ºC...+50 ºC
    • Supply voltage 230 VAC ± 10 %, 50/60 Hz
    • The device is not equipped with a mains switch
    • Power consumption 5 VA
    • Sensors 2 pcs GA-SG1 sensors
    • Relay output 2 pcs potential-free relay outputs
    • 250 V, 5 A Operational delay 10 sec.
    • Relay de-energize at trigger point.
    • Electrical safety IEC/EN 61010-1, Class II , CAT II
    • EMC Emission IEC/EN 61000-6-3
    • Immunity IEC/EN 61000-6-1
Item no.
418564
