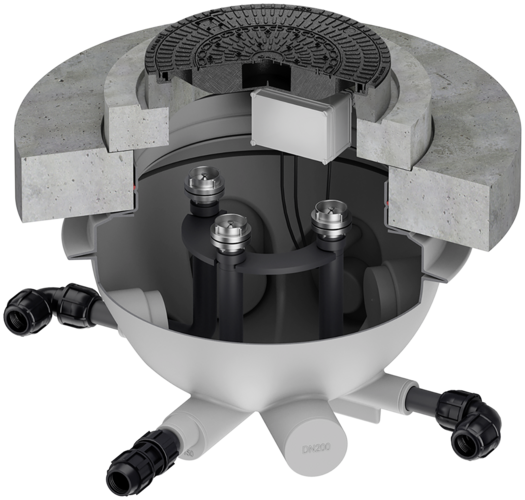

Disposal shafts
Product benefits
- Depending on the version, one or up to three extraction lines/pendulum gas lines can be connected
- Optionally including protective housing for the consumption of a remote control
- Horizontal pipe outlet for optimum installation
Product information
- Areas of application
- Suction lines for grease separators, light liquid separators, starch separators
- Pendulum gas lines for grease separators, light liquid separators, starch separators (depending on design)
- Disposal shaft for top-mounted systems with load class B 125 or D 400 (load distribution plate included with class D)
- According to EN 124 made of plastic polyethylene (PE-LD)
- Connection pipe DN 75 including dummy cover for connection of direct suction line and additional pendulum gas line (depending on version)
- Optionally with protective housing for the consumption of a remote control, including mounting for easy removal if required
Infobox
- Disposal shafts 450/800
- Suitable for: All separators installed in the ground from expansion stage 1
