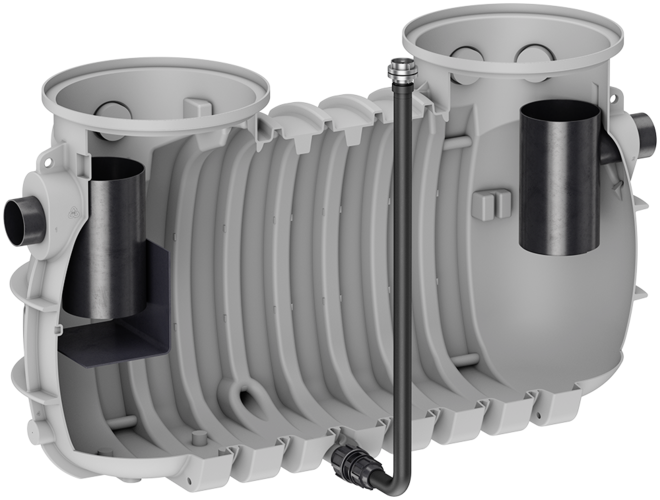

LipuMax-PF-H-D Stage 1

Product benefits

  • Grease separator with integrated sludge trap in a single tank
  • Reduced/simplified installation work
  • Emptying the grease separator without unpleasant odours

Product information

Grease separator

  • Grease separator in accordance with EN 1825 Nominal Size 10, 15 und 20
  • For underground installation
  • With integrated sludge trap
  • 2 x maintenance openings Ø 840 mm for the respective accommodation of a required extension system characteristic dimension 800 or 800 - 600 (accessories) with load classes A 15, B 125 or D 400
  • Maximum inlet invert ZT up to approx. 1.90 m after extension system (distance from top edge of ground to lower edge of connection port/pipe bottom)
  • Maximum installation depth ET up to 3 m (distance from top edge of ground to lower edge of tank)
  • Buoyancy safety of the tank: Buoyancy-proof up to 1.65 m above the lower edge of the tank with extension system and load distribution plate (for A 15, B 125 / D 400)
  • Declaration of Performance (DoP) No: BD/G1/-1024
  • Connection parts for on-site disposal line:
    • 1x Compression fitting DN 80/ 65 (OD 90/ 75 mm)
    • 1 x Compression fitting DN 65 (OD 75 mm)
    • Pipe (OD 75 mm) with fixed coupling Storz-B / 2½" and blind coupling
  • Connection parts for on-site vent stack
    • 1 x Socket seal DN 100

Connections

  • Pipe connections:
  • Horizontal pipe socket DN 150 / OD 160 mm (NS 10) or DN 200 / OD 200 mm (NS 15/20) for on-site supply line
  • Horizontal pipe socket DN 150 / OD 160 mm (NS 10) or DN 200 / OD 200 mm (NS 15/20) for on-site drain line
  • 8 x horizontal pipe sockets (closed) DN 100 / OD 110 mm for on-site vent stack
  • 1 horizontal pipe socket each (closed) DN 80 / OD 90 mm arranged on the right and left in the direction of flow for on-site disposal line
Nominal sizeInlet/

Outlet
ContentsWeightItem

number
Remember
Sludge trapGrease storeOverall
[l][l][l][kg]
NS 10DN 150100055020901703210.81.02
NS 15DN 200150062527802053215.81.02
NS 20DN 200200082035652503220.81.02
Nominal sizeInlet/

Outlet
ContentsWeightItem

number
Sludge trapGrease storeOverall
NS 10DN 1501000 l550 l2090 l170 kg3210.81.02
NS 15DN 2001500 l625 l2780 l205 kg3215.81.02
NS 20DN 2002000 l820 l3565 l250 kg3220.81.02
Scale drawing
Nominal sizeSludge trapDimensions
H1H2L1L2
[l][mm][mm][mm][mm]
NS 1010001100103025201255
NS 1515001080101030101745
NS 2020001080101037502480

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 10 m
  • Weight: 6.4 kg

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 20 m
  • Weight: 7.8 kg

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 30 m
  • Weight: 9.6 kg

Extension 450

Suitable for
  • Sampling shaft
Description
  • Made from plastic, material polyethylene
  • For fitting on upstream shaft for deep installations
  • Structure height: 100 – 650 mm
    • (can be reduced to 45 mm by cutting off at cutting marks)
  • Max. two extension can be used
  • Weight: 8.8 kg

0150.27.08: Muffendichtung DN 200 / OD 200 mm

Description
  • Weight: 0.6 kg
