Which drainage system will withstand aggresive wastewater for decades?
Drainage system for Hot production area

Your brewery needs to be watertight and easy-to-clean. If you want to invest in durable solution, you need to install stainless steel drainage system. Plastic system will not withstand the high temperatures since it starts deforming at 140°F. Cast iron on the other hand is not chemically resistant.

Drainage solutions designed to perform in Brewery hot production area

When you have chosen the right material, do not forget to consider the design. It is proven fact that only ACO's hygienically designed drains are 100% cleanable and hence do not compromise hygiene.

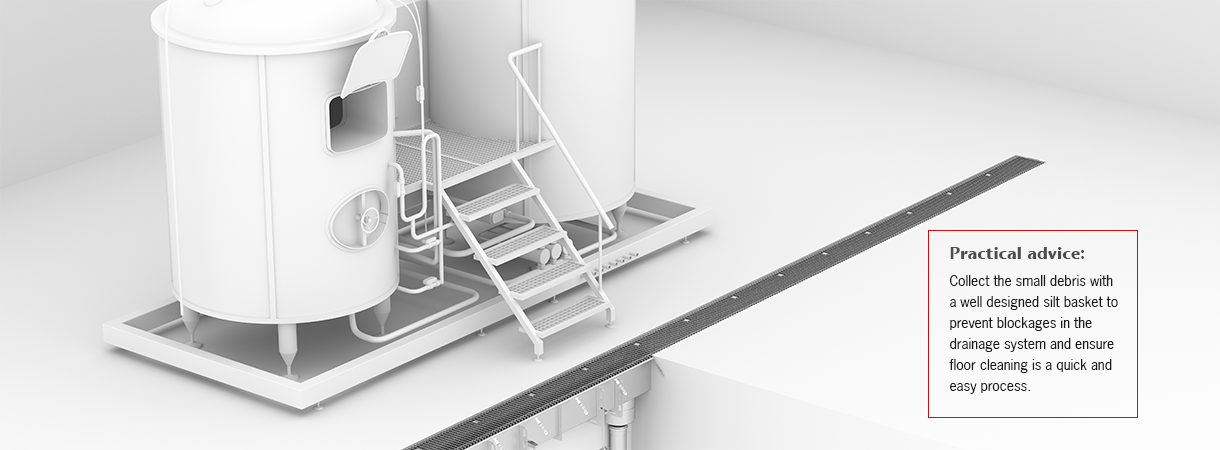

For a durable, hygienic and easy-to-clean solutions, specify a hygienically designed stainless steel drainage system. Silt baskets will help you to collect hop debris to prevent blockages.

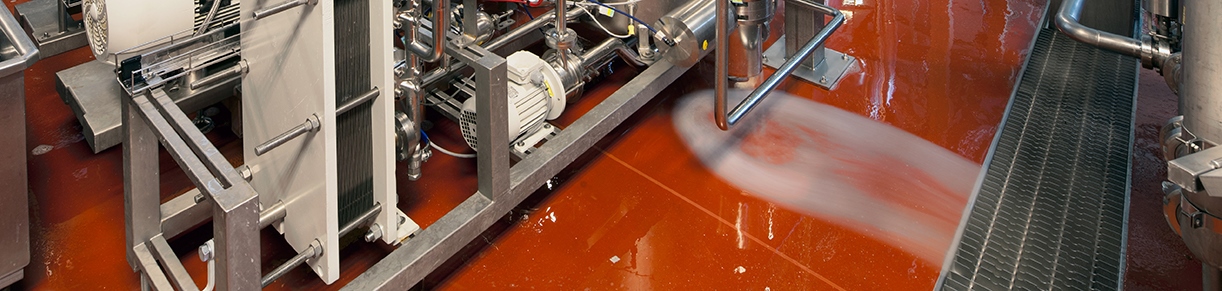

U MG 4996 1220x290

Drainage system components

ACO hygienic box channel
ACO hygienic box channel with flexible joint

ACO hygienic box channels are available in various body sizes to cater for sufficient flow rates and construction requirements. Flexible joint is a recommended solution which ensures long lasting floor-drainage connection in areas that are subject to thermal shocks.

ACO hygienic gully 218
ACO hygienic gully 218 with flexible joint to the floor

ACO's hygienically designed gullies are available a range of sizes to cater for flow rates and construction requirements specific to breweries. Our gullies are suitable for use in shallow construction depths and applications where preventative fire measures are required. ACO hygienic gullies are certified according to EN 1253.

ACO frameless ladder grating
ACO frameless ladder grating

The ACO frameless ladder gratings provide fully hygienic solutions thanks to the robotic welding technology used during the production. Frameless design ensures that no debris is captured between the grating and drainage.

ACO silt basket
ACO silt basket

For the collection of solid particles, ACO drainage systems can be supplied with an optional silt basket. ACO silt baskets are available in a wide variety of capacities ranging from 0.3 litre to 9.5 litres.

ACO Pipe 300x300
ACO pipe

ACO’s stainless steel push-fit pipe system is designed for grey or black water applications. ACO Pipe products offer more than 40 years’ product life thanks to the material properties of stainless steel. Easy on-site installation and handling is ensured by a push-fit assembly system and related cutting tools.

ACO kerb stainless steel
ACO kerb

ACO kerb products provide reliable wall protection that prevents walls from impacts, water or chemical ingress, or other damage associated with the traffic and production process. They are suitable for any food processing area. ACO kerbs are available in polymer concrete and stainless-steel variations.
