Pumps for waste water lifting plant Muli-Flex

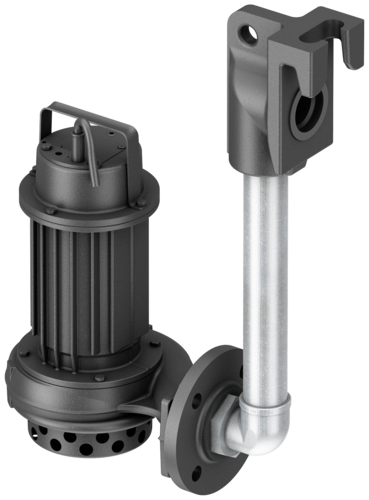

Pumps For Waste Water Lifting Plant Muli-flex 629231

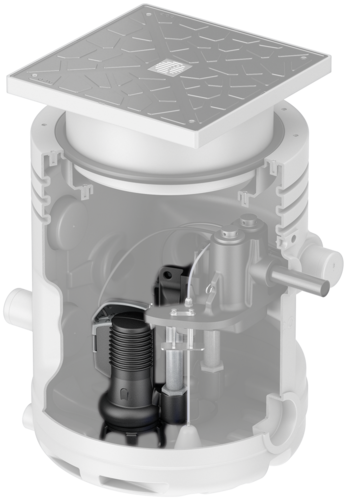

Pumps For Waste Water Lifting Plant Muli-flex 513782

Product benefits

Submersible pumps suited best for Muli-Flex
High performance with low power consumption

Product information

Applications areas:
- Industrial, communal and privat premisses
Pump casings from cast iron and steel

	Type	Description	Motor power		Key data			Granu lation	Operating mode	Weight	Item number		Downloads	Remember
			P1	P2	Current consumption	Volt- age	Rev- count	Granu lation		Weight
			[kW]	[kW]	[A]	[V]	[r/min]	[mm]		[kg]
	TP SAT-VA-100/2/50/D	Delivery head: H max. = 12,1 m Delivery capacity: Q max. = 8,88 l/s	1.4	0.88	2.3	400	2700	40	S1	18	1204.20.22
	SAT-V-75/2/50/D	Delivery head: H max. = 8 m Delivery capacity: Q max. = 6,7 l/s	0.7	0.55	1.3	400	2900	40	S1	18	1204.20.00	12
	SAT-V-150/2/50/D	Delivery head: H max. = 14 m Delivery capacity: Q max. = 10,9 l/s	1.5	1.1	2.6	400	2900	50	S1	23	1204.20.01	12
	SITA 200eco N-ex-G	Delivery head: H max. = 20.6 m Delivery capacity: Q max. = 5.4 l/s	2.1	1.5	3.25	400	2900		S1	38	3015508
	SITA 200 N-ex-G	Delivery head: H max. = 24.4 m Delivery capacity: Q max. = 4.7 l/s	2.1	1.5	3.25	400	2900		S1	38	1204.20.10	12
	Sat-100/D		1.3	0.88	2.3	400	2900		S1	27	1204.20.02	12
	Sat-150/D	Delivery head: H max. = 16 m Delivery capacity: Q max. = 12 l/s	1.6	1.1	2.7	400	2900		S1	27	1204.20.03	12
	Sat‑200/D	Delivery head: H max. = 18 m Delivery capacity: Q max. = 13 l/s	2	1.5	3.55	400	2900		S1	28	1204.20.04	12

	Type	Motor power		Key data			Partical size	Weight	Item number
	Type	P1	P2	Power consumption	Voltage	Rev count	Partical size	Weight	Item number
	TP SAT-VA-100/2/50/D	1.4 kW	0.88 kW	2.3 A	400 V	2700 r/min	40 mm	18 kg	1204.20.22
	SAT-V-75/2/50/D	0.7 kW	0.55 kW	1.3 A	400 V	2900 r/min	40 mm	18 kg	1204.20.00
	SAT-V-150/2/50/D	1.5 kW	1.1 kW	2.6 A	400 V	2900 r/min	50 mm	23 kg	1204.20.01
	SITA 200eco N-ex-G	2.1 kW	1.5 kW	3.25 A	400 V	2900 r/min		38 kg	3015508
	SITA 200 N-ex-G	2.1 kW	1.5 kW	3.25 A	400 V	2900 r/min		38 kg	1204.20.10
	Sat-100/D	1.3 kW	0.88 kW	2.3 A	400 V	2900 r/min		27 kg	1204.20.02
	Sat-150/D	1.6 kW	1.1 kW	2.7 A	400 V	2900 r/min		27 kg	1204.20.03
	Sat‑200/D	2 kW	1.5 kW	3.55 A	400 V	2900 r/min		28 kg	1204.20.04

Muli-Flex – free standing installation

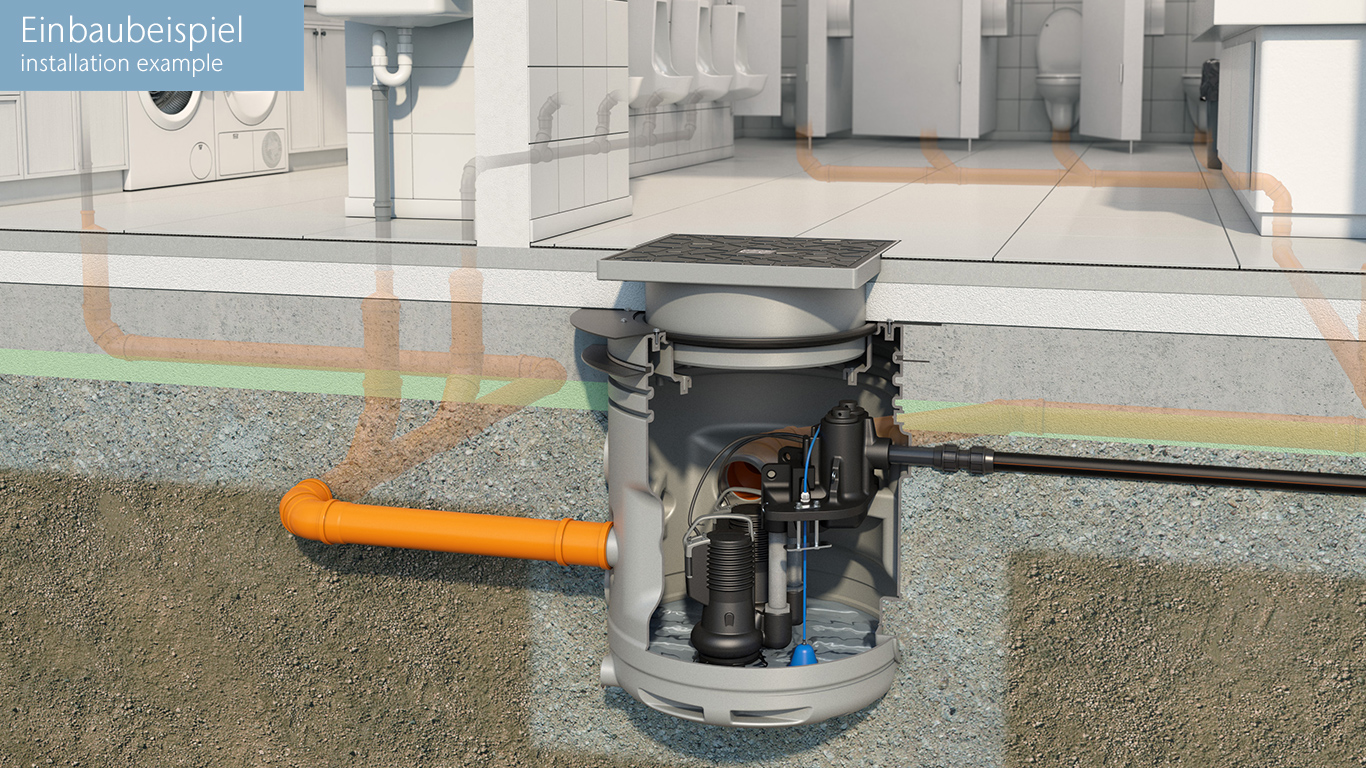

Muli-Flex – underground installation

	Type	Description	Motor power		Key data			Granu lation	Operating mode	Weight	Item number		Downloads	Remember
			P1	P2	Current consumption	Volt- age	Rev- count	Granu lation		Weight
			[kW]	[kW]	[A]	[V]	[r/min]	[mm]		[kg]
	TP SAT-VA-100/2/50/D	Delivery head: H max. = 12,1 m Delivery capacity: Q max. = 8,88 l/s	1.4	0.88	2.3	400	2700	40	S1	18	1204.20.22
	SAT-V-75/2/50/D	Delivery head: H max. = 8 m Delivery capacity: Q max. = 6,7 l/s	0.7	0.55	1.3	400	2900	40	S1	18	1204.20.00	12
	SAT-V-150/2/50/D	Delivery head: H max. = 14 m Delivery capacity: Q max. = 10,9 l/s	1.5	1.1	2.6	400	2900	50	S1	23	1204.20.01	12
	SITA 200eco N-ex-G	Delivery head: H max. = 20.6 m Delivery capacity: Q max. = 5.4 l/s	2.1	1.5	3.25	400	2900		S1	38	3015508
	SITA 200 N-ex-G	Delivery head: H max. = 24.4 m Delivery capacity: Q max. = 4.7 l/s	2.1	1.5	3.25	400	2900		S1	38	1204.20.10	12
	Sat-100/D		1.3	0.88	2.3	400	2900		S1	27	1204.20.02	12
	Sat-150/D	Delivery head: H max. = 16 m Delivery capacity: Q max. = 12 l/s	1.6	1.1	2.7	400	2900		S1	27	1204.20.03	12
	Sat‑200/D	Delivery head: H max. = 18 m Delivery capacity: Q max. = 13 l/s	2	1.5	3.55	400	2900		S1	28	1204.20.04	12

	Type	Motor power		Key data			Partical size	Weight	Item number
	Type	P1	P2	Power consumption	Voltage	Rev count	Partical size	Weight	Item number
	TP SAT-VA-100/2/50/D	1.4 kW	0.88 kW	2.3 A	400 V	2700 r/min	40 mm	18 kg	1204.20.22
	SAT-V-75/2/50/D	0.7 kW	0.55 kW	1.3 A	400 V	2900 r/min	40 mm	18 kg	1204.20.00
	SAT-V-150/2/50/D	1.5 kW	1.1 kW	2.6 A	400 V	2900 r/min	50 mm	23 kg	1204.20.01
	SITA 200eco N-ex-G	2.1 kW	1.5 kW	3.25 A	400 V	2900 r/min		38 kg	3015508
	SITA 200 N-ex-G	2.1 kW	1.5 kW	3.25 A	400 V	2900 r/min		38 kg	1204.20.10
	Sat-100/D	1.3 kW	0.88 kW	2.3 A	400 V	2900 r/min		27 kg	1204.20.02
	Sat-150/D	1.6 kW	1.1 kW	2.7 A	400 V	2900 r/min		27 kg	1204.20.03
	Sat‑200/D	2 kW	1.5 kW	3.55 A	400 V	2900 r/min		28 kg	1204.20.04

Muli-Flex – free standing installation

Muli-Flex – underground installation

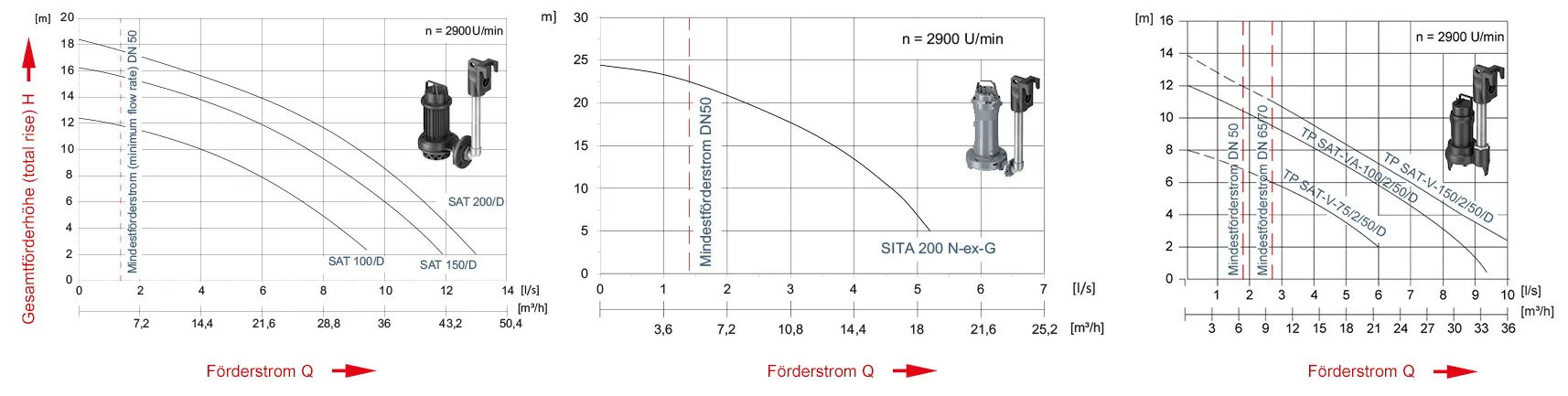

Leistungsdiagramme-Muli-Flex-Typo3
