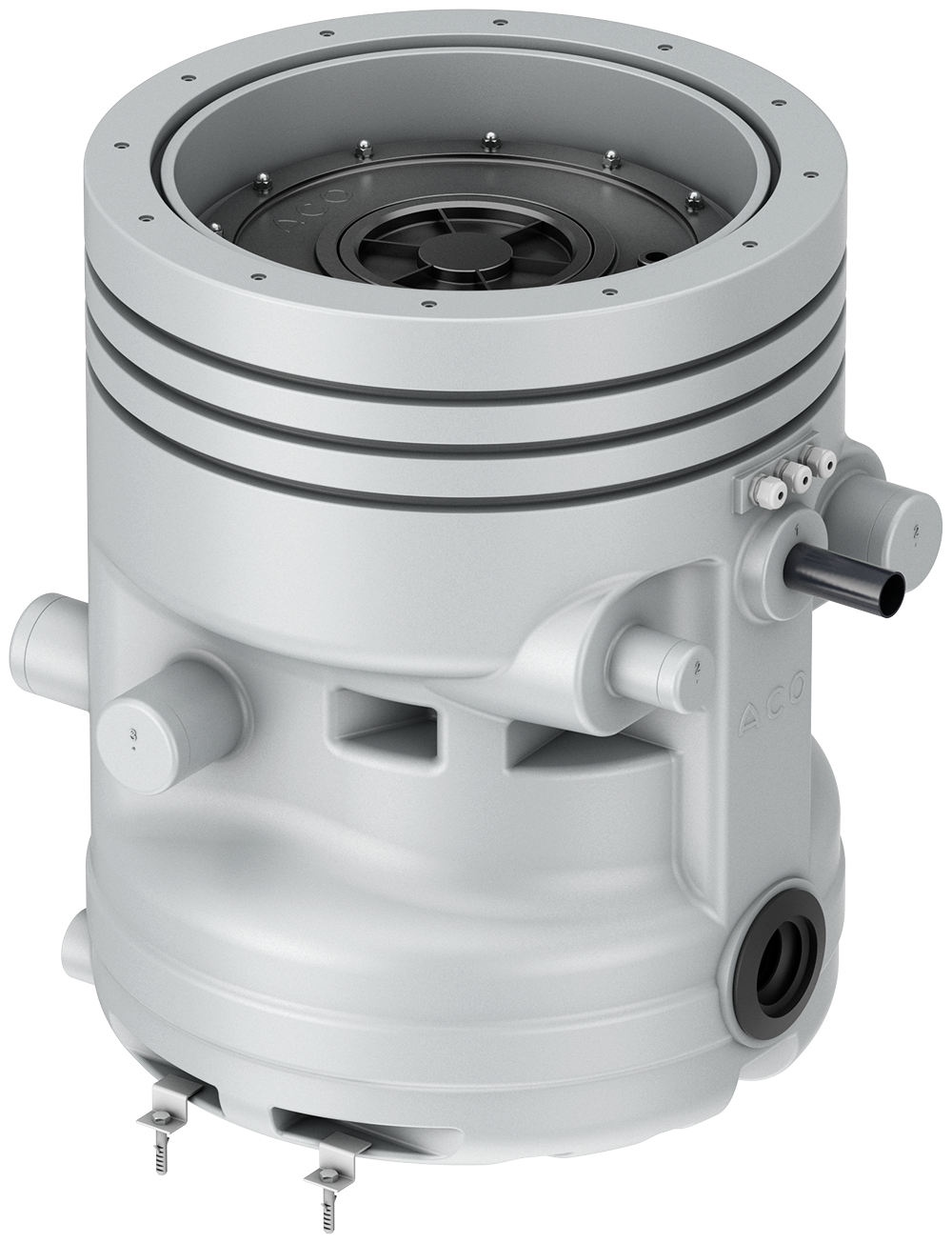

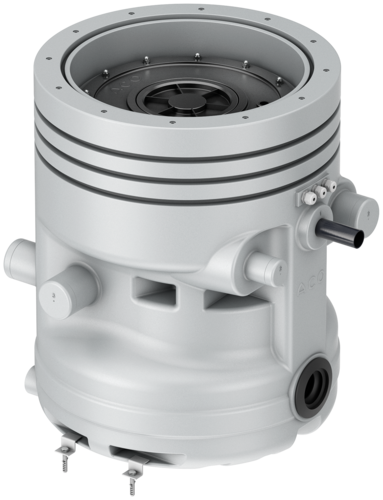

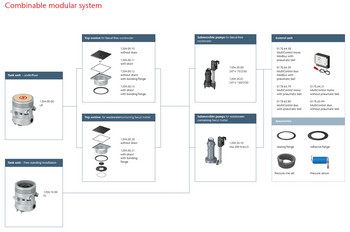

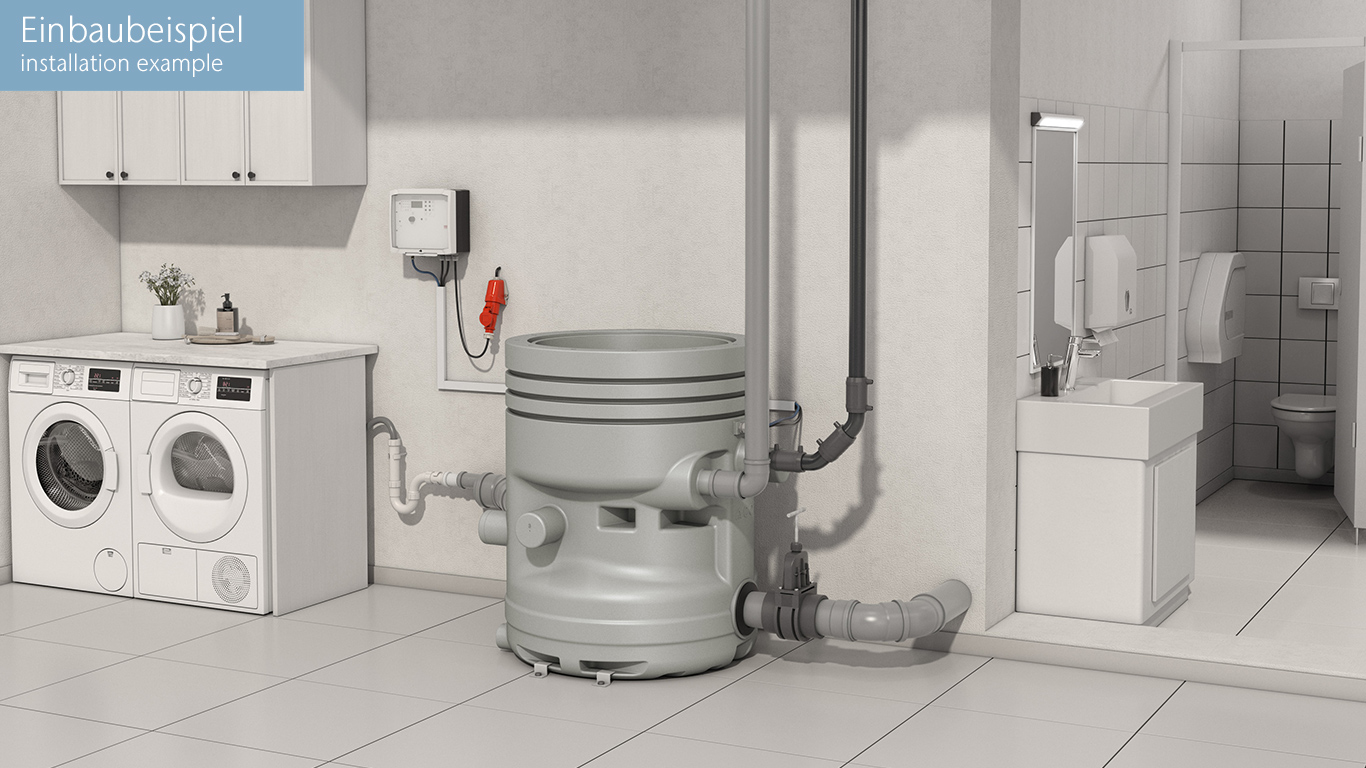

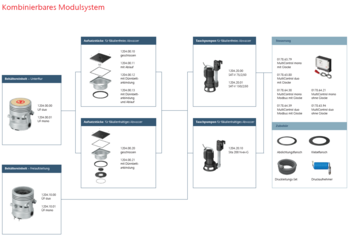

Muli-Flex – free standing installation

Product benefits

  • Tested according to EN 12050-1
  • Depending on the pumps, it can be used for waste water with or without faeces
  • Automatic pump coupling for tool-free assembly and disassembly
  • Total tank volume: 380 liters

Product information

  • Application:
    • Multiple family houses
    • Office buildings
    • Industrial buildings
    • Washrooms
    • Parking garages
    • Technical rooms
  • With one or two pumps
  • For installation in the base plate
  • Tank from polyethylene
  • Large inspection opening for easy maintanance: ∅ 480 mm
  • Tank dimensions (DxH): ∅800 x 1000 mm
  • Pump traverse with double special ball non-return valve, tool-free disassembly/assembly of the pump via automatic surface-water coupling
  • Connection inlet piping (minimum operating volume: 30 liters, maximum operation volume: 170 liters, inlet heights measured from bottom of the tank to the lower edge of the inlet pipe):
    • 1 x Inlet DN 100 Forsheda, inlet height 125 mm, operating volume = 30 l
    • 1 x Inlet DN 100 Forsheda, inlet height 195 mm, operating volume = 50 l
    • 1 x Inlet DN 100 spigot, inlet height 345 mm, operating volume = 100 l
    • 1 x Inlet DN 150 spigot, inlet height 370 mm, operating volume = 105 l
    • 2 x Inlet DN 100 spigot, inlet height 395 mm, operating volume = 115 l
    • 1 x Inlet DN 100 Forsheda, inlet height 545 mm, operating volume = 170 l
  • Pressure pipe connection:
    • Pressure pipe outlet PE-HD: spigot DN 50 (∅50 mm)
    • Compression fittting with adapter 1½" inner thread included
  • Ventilation connection:
    • Spigot DN 70 (OD 75 mm) suitable for fitting plastic or cast iron pipes
    • Connecting height: 437,5 mm (measured from the upper edge of the floor to the lower edge of the inlet pipe)
  • Additional connetcions:
    • Cable duct DN 100 (OD 110 mm), 545 mm (messured from the bottom of the tank to the lower edge of the inlet pipe)
    • Manual diaphragm pumpe R 1 ½”
    • Handmembranpumpe R 1½"
    • Bottom outlet for service/emergency discharge: 1"
  • Total height: 1,000 mm

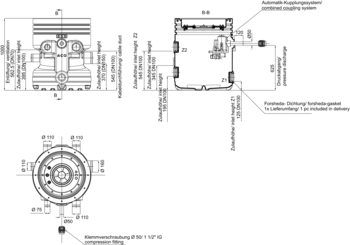

Scale drawing
TypeMediumVersionUsable volumeTotal

volume
WeightItem

number
Remember
Inlet

height Z 1
Inlet

height Z 2
[l][l][l][kg]
Muli-FlexWaste water containing faecesMono/Duo30170380541204.10.0012
Scale drawing
TypeMediumVersionUsable volumeTotal

volume
WeightItem

number
Inlet

height Z 1
Inlet

height Z 2
Muli-FlexWaste water containing faecesMono/Duo30 l170 l380 l54 kg1204.10.00

Switching device, ACO Multi Control Duo Advanced incl. Dynamic pressure bell

Suitable for
  • Muli-Max
    • Duo-plants
  • Powerlift–P / Powerlift-P/F-H
  • Muli-Flex
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 10 VA
  • Temperature range: -20 to +60 ° C
  • IP 54 protection
  • CEE 16 plug with phase-changing switch
    • Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
  • 20 m pneumatic control cable 8 x 6 mm
  • Weight: 5.4 kg
  • Rabattgruppe: 12

Switching device, ACO Multi Control Duo Professional incl. Dynamic pressure bell

Suitable for
  • Muli-Max
    • Duo-plants
  • Powerlift–P / Powerlift-P/F-H
  • Muli-Flex
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 10 VA
  • Temperature range: -20 to +60 ° C
  • IP 54 protection
  • With Modbus RTU functionality for connection to the building management system
  • CEE 16 plug with phase-changing switch
    • Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
  • 20 m pneumatic control cable 8 x 6 mm
  • Weight: 5.4 kg
  • Rabattgruppe: 12

Switching device, ACO Multi Control Duo Advanced without Dynamic pressure bell

Suitable for
  • Muli-Max
    • Duo
  • Powerlift–P / Powerlift-P/F-H
  • Muli-Flex
  • Muli-Nova DDP
    • Muli-Nova x.1 / x.2
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 10 VA
  • Temperature range: -20 to +60 ° C
  • IP 54 protection
  • CEE 16 plug with phase-changing switch
    • Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
  • Without control line
  • Weight: 5.4 kg
  • Rabattgruppe: 12

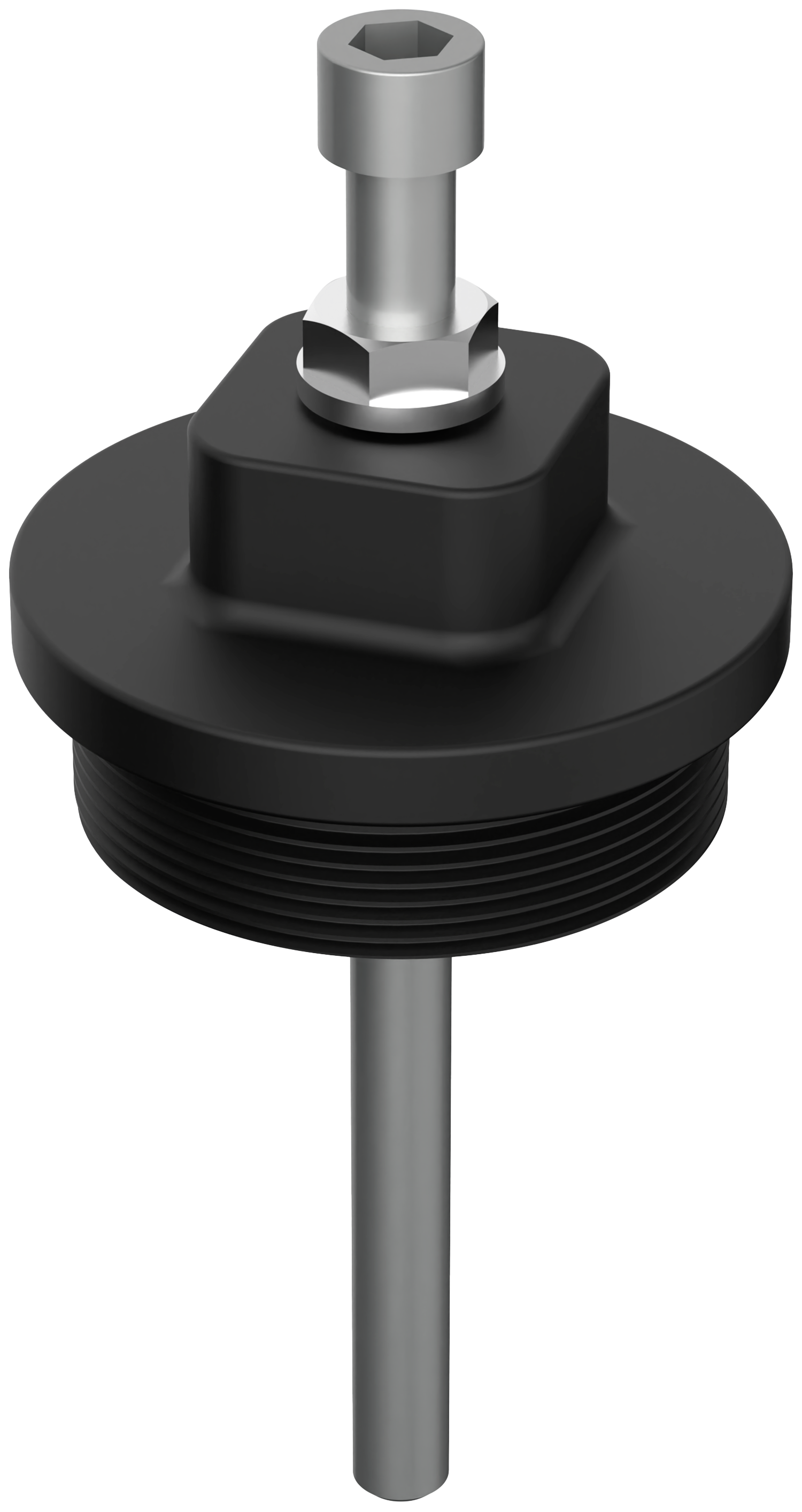

Pressure pick-up

Suitable for
  • Control ACO Multi-Control Mono/Duo
  • LipuLift-P/LipuLift-PF
  • Powerlift-P/F-H
  • Muli-Flex
Description
  • 4–20 mA
  • For secure switching cable lengths > 12 m
  • 0–200 mbar
  • With cable for installation: 20 m
  • Weight: 2 kg
  • Rabattgruppe: 12

Safety barrier

Suitable for
  • Pressure pick-off
  • Float switch with ATEX-certificate
Description
  • To separate Ex-risk and secure areas
  • Incl. housing
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Air bubble injection

Suitable for
  • Muli-Max
  • Powerlift–P
  • Muli-Flex
Description
  • To increase operational safety (where floating surfaces are generated e.g. grease separator)
  • For pneumatic level switching
  • Mini compressor
    • Connection: 230 V
    • Plug and use
  • With T-screw-in connection
  • With backflow valve
  • Weight: 0.6 kg
  • Rabattgruppe: 12

Delivery line set, AD 63 (ID 55)

Suitable for
  • Muli-Flex
Description
  • 7.5 m pressure line hose AD 63
  • Glued transition sleeve 63/55- 1 1/2" AD
  • Max. Pressure: 6 bar
  • Temperature range: -10 to +55°C
  • Rabattgruppe: 12

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg
  • Rabattgruppe: 12

Drill connection seal DN 110

Description
  • Weight: 0.4 kg
  • Rabattgruppe: 12

Connection and flood module set

Suitable for
  • Triplex-K backflow stops
    • DN 100 – DN 150
  • Quatrix-K backflow stops
  • All wastewater lifting plants
  • All separators
Description
  • To report a leak caused for example by a pipe bursting
  • For electrically conducting liquids
  • With volt free contact
  • Visible and audible alarms (approx. 80 dB)
  • Dimensions (width x height x depth): 160 x 120 x 75 mm
  • Protection level: IP 65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Plug and use: 1.4 m
  • Overflow indicator with 10 m cable
  • Weight: 1.1 kg
  • Rabattgruppe: 12

Float switch

Suitable for
  • For faecal and non-faecal wastewater
  • MultiControl controls as float switches
  • MultiControl controls as additional High alarm float
Description
  • Housing: PRE-ELEC PP
  • Degree of protection: IP68
  • Switch voltage: 4-40 V
  • Switch current: 1-100 mA
  • Connection cable: 10m
  • Switch inclination: 10°
  • Protection class: II 1G Ex ia IIC T6 Ga
  • Rabattgruppe: 12

Floater

Suitable for
  • Signalling unit 0150.26 73
Description
  • With 10 m cable
  • For separate warning system/volt free fault reporting level
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Signal horn

Suitable for
  • Signalling unit
  • Signalling unit with GSM module
Description
  • Operating voltage: 12V DC
  • Power consumption: 30 mA
  • 62 x 62 x 85 mm (LxWxD)
  • Degree of protection: IP66
  • Noise level: 95 dB(A)
  • Weight: 0.2 kg
  • Rabattgruppe: 12

Signal horn

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V AC
  • Power consumption: 30mA
  • Ø62x85 mm (L/B x T)
  • Protection: IP66
  • 95 dB(A)
  • Weight: 0.3 kg
  • Rabattgruppe: 12

Flashing light

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V
  • Power consumption: 70 mA
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Flashing light

Description
  • Rabattgruppe: 12

Hand membrane pump 1½"

Suitable for
  • Wastewater lifting plant
Description
  • For fixing to wall
  • Incl. hose
    • Clear width: 48 x 80 mm
  • Incl, hose clamp
    • Clear width: 50 x 70 mm
    • Width: 12 mm
    • 2 pces required
  • Weight: 14.4 kg
  • Rabattgruppe: 12

Three way valve 1½"

Suitable for
  • Wastewater lifting plant
Description
  • For hand membrane pump
  • Weight: 3.3 kg
  • Rabattgruppe: 12

Stop valve 1½"

Suitable for
  • Wastewater lifting plant
Description
  • For hand membrane pump
  • Weight: 1 kg
  • Rabattgruppe: 12

Compression fitting 50 x 63 mm

Suitable for
  • Muli-Flex
Description
  • Weight: 0.8 kg
  • Rabattgruppe: 12
