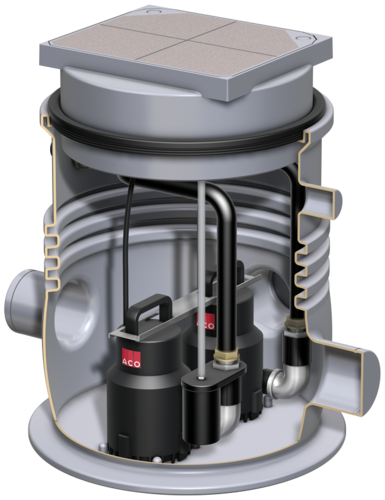

Waste water lifting plant Sinkamat-K duo

Product benefits

  • Quick-release coupling for toolless installation/dismantling of the pump
  • Optional sealing in waterproof concrete
  • Several connection options available
  • Optional cover for selectable surface and odour trap

Product information

  • Field of application
    • For underfloor installation in frost proof rooms below the flood level, e.g. in basement, hobby and laundry rooms
    • For domestic non-faecal wastewater, e.g. from showers, washbasins, etc.
  • Housing made out of polyethylene
  • With 3 inlet sockets DN 100
  • Delivery pipe junction with integrated backflow flaps
    • Connection DN 40
    • Spigot ∅ 50 mm
  • Top section
    • With telescopic height-adjustability: 30 – 70 mm
    • Frame size: 360 x 300 mm
  • 2 pump units
  • Motor housing and shaft made of stainless steel
  • Pump housing and impeller plastic
  • Mechanical seal between pump housing and motor
  • Pneumatic level switching with 10 m control cable
  • Including. switching - warning device
    • Ingress protection IP 54
    • With 1.5 m connection cable and earthed safety plug
    • With isolated group alarm and operation signal
  • Tested in accordance with EN 12050-2 (non-faecal wastewater)

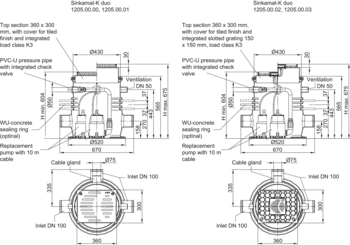

Scale drawing
TypeDescriptionMotor powerKey dataGranu

lation
Total

volume
Usable volumeWeightItem

number
Remember
P1P2Current

consumption
Volt-

age
Rev-

count
[kW][kW][A][V][r/min][mm][l][l][kg]
Image50/1-K duo
  • Top section
    • Frame dimensions: 360 x 300 mm
    • Reversible cover plate for tile or plastic covering
    • Load class: K 3
0.30.131.82302800107015271205.00.0012
Image50/2-K duo
  • Top section
    • Frame dimensions: 360 x 300 mm
    • Reversible cover plate for tile or plastic covering
    • Load class: K 3
0.850.433.72302800107015321205.00.0112
Image50/1-K duo
  • Top section
    • Frame dimensions: 360 x 300 mm
    • For customer choice of surface
    • With foul air trap
    • With slot grating
      • Frame dimensions: 150 x 150 mm
      • Load class: K 3
0.30.131.82302800107015291205.00.0212
Image50/2-K duo
  • Top section
    • Frame dimensions: 360 x 300 mm
    • For customer choice of surface
    • With foul air trap
    • With slot grating
      • Frame dimensions: 150 x 150 mm
      • Load class: K 3
0.850.433.72302800107015331205.00.0312
Scale drawing
TypeDescriptionMotor powerKey dataGranu

lation
Total

volume
Usable volumeWeightItem

number
P1P2Current

consumption
VoltageRev countInlet

height Z 1
Image50/1-K duo
  • Top section
    • Frame dimensions: 360 x 300 mm
    • Reversible cover plate for tile or plastic covering
    • Load class: K 3
0.3 kW0.13 kW1.8 A230 V2800 r/min10 mm70 l15 l27 kg1205.00.00
Image50/2-K duo
  • Top section
    • Frame dimensions: 360 x 300 mm
    • Reversible cover plate for tile or plastic covering
    • Load class: K 3
0.85 kW0.43 kW3.7 A230 V2800 r/min10 mm70 l15 l32 kg1205.00.01
Image50/1-K duo
  • Top section
    • Frame dimensions: 360 x 300 mm
    • For customer choice of surface
    • With foul air trap
    • With slot grating
      • Frame dimensions: 150 x 150 mm
      • Load class: K 3
0.3 kW0.13 kW1.8 A230 V2800 r/min10 mm70 l15 l29 kg1205.00.02
Image50/2-K duo
  • Top section
    • Frame dimensions: 360 x 300 mm
    • For customer choice of surface
    • With foul air trap
    • With slot grating
      • Frame dimensions: 150 x 150 mm
      • Load class: K 3
0.85 kW0.43 kW3.7 A230 V2800 r/min10 mm70 l15 l33 kg1205.00.03

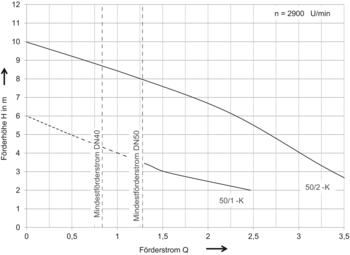

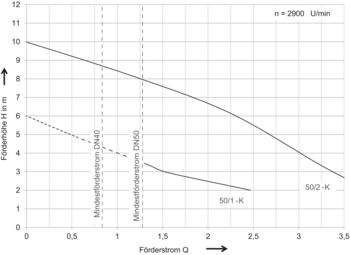

TypeDelivery headDelivery flow Q with overall delivery head HMedia temperature
2 m3 m4 m5 m6 m7 m8 m9 mNormalMaximum
[m][l/s][l/s][l/s][l/s][l/s][l/s][l/s][l/h][°C][°C]
50/1-K duo2 – 4.32.471.521.00.484070
50/2-K duo2 – 8.73.653.353.022.682.31.821.250.64070
50/1-K duo
50/2-K duo

Floater

Suitable for
  • Signalling unit 0150.26 73
Description
  • With 10 m cable
  • For separate warning system/volt free fault reporting level
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Signal horn

Suitable for
  • Signalling unit
  • Signalling unit with GSM module
Description
  • Operating voltage: 12V DC
  • Power consumption: 30 mA
  • 62 x 62 x 85 mm (LxWxD)
  • Degree of protection: IP66
  • Noise level: 95 dB(A)
  • Weight: 0.2 kg
  • Rabattgruppe: 12

Flashing light

Description
  • Rabattgruppe: 12

Connection and flood module set

Suitable for
  • Triplex-K backflow stops
    • DN 100 – DN 150
  • Quatrix-K backflow stops
  • All wastewater lifting plants
  • All separators
Description
  • To report a leak caused for example by a pipe bursting
  • For electrically conducting liquids
  • With volt free contact
  • Visible and audible alarms (approx. 80 dB)
  • Dimensions (width x height x depth): 160 x 120 x 75 mm
  • Protection level: IP 65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Plug and use: 1.4 m
  • Overflow indicator with 10 m cable
  • Weight: 1.1 kg
  • Rabattgruppe: 12

Top section

Suitable for
  • Backflow stops for installation in the floor plate
Description
  • Weight: 2.6 kg
  • Rabattgruppe: 7

Reversible cover plate

Suitable for
  • Backflow stops for installation in the floor plate
Description

Reversible cover plate for tile or plastic cover

  • Weight: 1 kg
  • Rabattgruppe: 7

Pressure line set 50 mm diam.

Suitable for
  • Sinkamat-K (underfloor)
    • Mono
    • Duo
  • Muli-UF (underground)
Description
  • 5 m pressure tube ext. diam. 50 (ID 42) with 1 ¼" PVC adaptor socket
  • Max. pressure: 6 bar
  • Weight: 4 kg
  • Rabattgruppe: 12

Sealing flange

Suitable for
  • Backflow stops for installation in the floor plate
  • Sinkamat-K
  • Muli-UF (underfloor)
  • Quatrix-K
Description
  • For building into waterproof concrete
    • Maximum groundwater level: 2 m
  • Weight: 4.2 kg
  • Rabattgruppe: 7

Cover plate, complete

Suitable for
  • Sinkamat-K
    • 620441
    • 620442
    • 620491
    • 620492
    • 1205.00.00
    • 1205.00.01
    • 1205.00.02
    • 1205.00.03
Description
  • Cover for customer choice of surfaces
  • With slot grating
    • Frame dimensions: 150 x 150 mm
    • Load class: K 3
  • With foul air trap
    • Water trap depth: 50 mm
  • Weight: 2.3 kg
  • Rabattgruppe: 12

Extension part

Suitable for
  • Backflow stops for installation in the floor plate
  • Sinkamat-K
  • Muli-UF (underfloor)
  • Quatrix-K
Description
  • With lip seal
  • Graduated height adjustment every 116 mm
    • For Sinkamat-K maximum 2 extension pieces may be mounted
    • For top section: 360 x 300mm
    • For Triplex-K, Quatrix-K and Muli-UF maximum 1 extension pieces may be mounted
  • Weight: 3.4 kg
  • Rabattgruppe: 7
